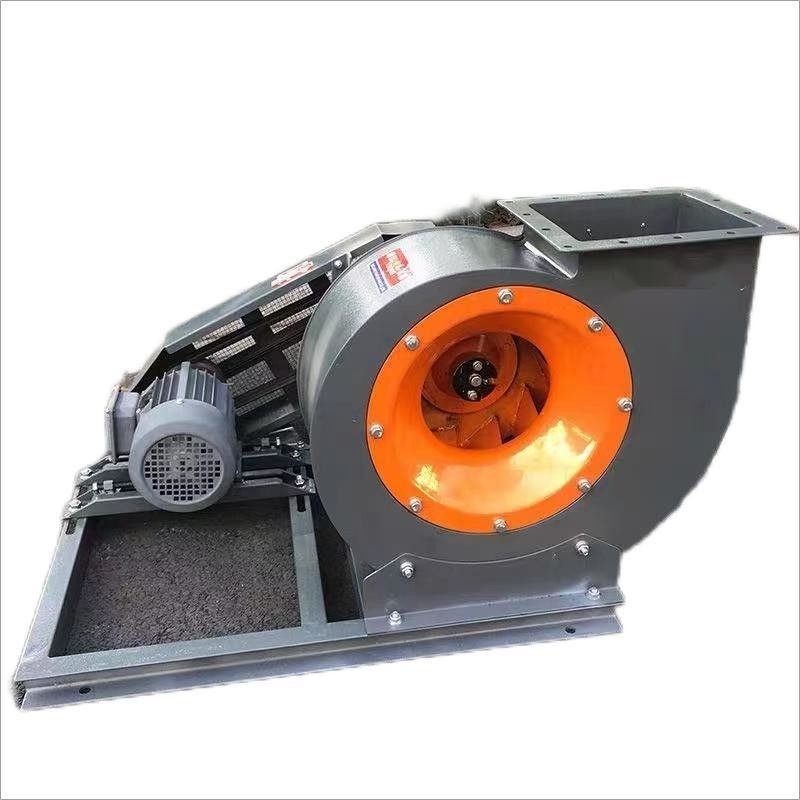

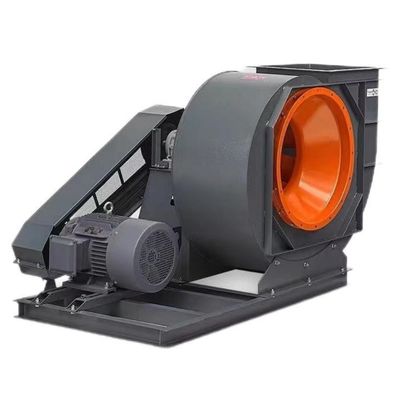

4-72 Series High Temperature Centrifugal Blower High Efficiency
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | 4-72C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $900.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 10-30working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Colour: | Grey, Customizable | Fan Type: | Centrifugal Blower |
|---|---|---|---|
| Application Scenario: | Warehouse, Workshop Ventilation, Etc | Structure: | Horizontal |
| Mode Of Transport: | Land, Sea, Air | ||
| Highlight: | high efficiency centrifugal blower,high temperature centrifugal blower,centrifugal blower |
||
Product Description
Product introduction:
The 4-72C blower is mainly used to meet the needs of large air flow applications, low noise, high efficiency. Can transport room temperature or high temperature clean gas, dust gas, flammable gas, corrosive gas, powder or granular materials. Typical applications are: building ventilation, mine ventilation, smoke exhaust, drying, clinker cooling, gas delivery, light material delivery, industrial boiler system blast and induced air, kiln system/incinerator system supply and induced air, air purification equipment, industrial dust collector system, in addition to the industrial field, in the agricultural and civil fields are also frequently used
Product advantage:
1, can work stably at a high medium temperature, in the case of meeting the pressure requirements, can output a large gas flow, low noise.
2, the blade placement Angle is optimized, more wear resistance, longer service life.
3, the adjustable door can be used to flexibly adjust the pressure and flow of the fan during operation. Variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.
4, impeller and spindle materials, we will be based on different working conditions of temperature and working speed, choose to use high-strength carbon steel, low alloy steel, high temperature resistant alloy steel, high temperature resistant high strength alloy steel, so that the impeller and spindle still maintain reliable strength at high temperatures.
5, the impeller nominal diameter below 1400mm running at room temperature fan system, no additional configuration of bearing cooling device, reducing the user's investment and maintenance workload.
Technical parameter:
| device number(No) | Rotational speed (r/min) |
Auxiliary motor(KW) | Flow rate (m³/h) |
Total pressure(Pa) |
| 3.2C | 2200 | 0.75 | 1483-2273 | 725-579 |
| 3.6C | 2200 | 1.5 | 2310-3434 | 881-723 |
| 4C | 1700 | 1.1 | 2641-4055 | 675-501 |
| 2300 | 2.2 | 3573-5491 | 1238-917 | |
| 4.5C | 2000 | 3.0 | 4428-6799 | 1187-879 |
| 2300 | 4 | 5088-7819 | 1570-1163 | |
| 5C | 2000 | 5.5 | 6106-9881 | 1495-1110 |
| 2300 | 7.5 | 7022-11363 | 1978-1468 | |
| 6C | 2000 | 11 | 9209-18418 | 2176-1380 |
| 2240 | 15 | 10314-20628 | 2734-1737 | |
| 7.1C | 1800 | 18.5 | 15736-25265 | 2422-1801 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
