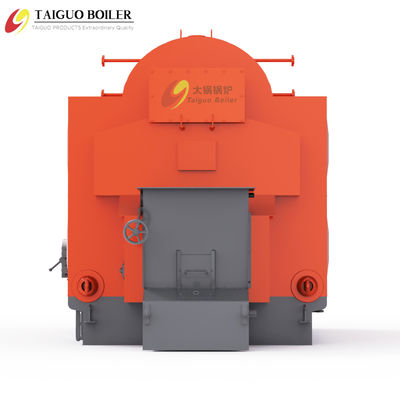

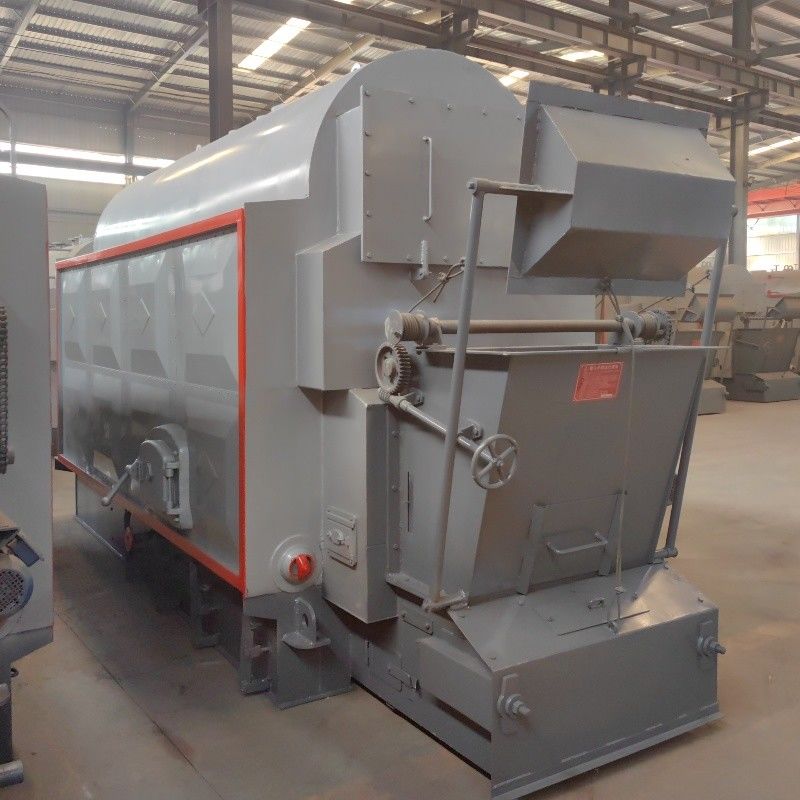

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$10000.00
Packaging Details: Bulk, packaged
Delivery Time: 25 working days
Payment Terms: L/C, T/T, D/P, D/P
Supply Ability: 10set
Get Best Price Contact Now

Detail Information

Product Type: Industrial Steam Industrial Steam: 1t/h-10t/h
Working Pressure: 1.0、1.25、1.6Mpa Fuel: Biomass
Rated Feed Water Temperature: 20℃ Warranty: 1 Year
Condition: New Weight: Regarding The Boiler Required
Boiler Structure: Fire Tube Type: Chain Grate
Style: Horizontal Capacity: Steam Boiler
Design Efficiency: 83-91% Design Fuel Consumption: 190Kg/h
Design Pressure: 1.25Mpa Design Temperature: 204℃
Efficiency: 80-90% Emission: ≤30mg/m³
Exhaust Temperature: ≤160℃ Fuel Consumption: 170-220Kg/h
Pressure: 0.7-2.5Mpa Temperature: 184-350℃
Thermal Efficiency: ≥90%
High Light:

1.6mpa pellet steam boiler

,

fire tube pellet steam boiler

,

1.6mpa chain grate biomass steam boiler

Product Description

Product introduction:

The biomass boiler of TAIGUO uses a scales -type chain stove, which has a wide range of fuel applicability. It has mechanized feed, uniform feed, control the speed of fuel combustion, should not be recovered, and the mechanical gray is convenient. In addition, due to the continuous tilt and loosening of the fuel layer, the contact between air and fuel has greatly enhanced and the combustion strength is high. At the same time, it saves manpower and reduces the labor intensity of boiler workers.

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 0Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 1



Technical parameter:

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 2Mode l


item



DZL1



DZL2



DZL3



DZL4



DZL6



DZL8



DZL10



DZL12



DZL15



Rated evaporation

capacity(t/h)

123468101215
Rated pressure(Mpa )

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

1 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .6
Rated steam temperat ure( ℃ )

170/ 184/

194

170/ 184/

194

170/ 184

/ 194

194/204194/204194/204190/204194/204194/204
Feed water temperat ure( ℃ )202020202020202020
Heating Area( m)Body~33~50~75~100~170~200~250~340~415
Economizer20 .725 .328 .633 . 1287 .298145168189
Effective area of garte ( m)2 .224 . 15 .856.27 .959 .7510 .7713 .416 .6
Fuel typeBiomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell

Fuel

Consumption

(kg/h)

~200~400~600~800~1000~1200~1400~1600~1800
Flue gas temperat ure( ℃ )~150~150~150~150~150~150~150~150~150
T hemal efficiency(%)~82~82~82~82~82~82~82~82~82

Weight of biggest

part for

t ransportation(t)

1718 .520253545586477
Overall dimension of biggest part for t ransportation( m)

5 . 1*2 .2

*3

5 .5*2 .3

*3 .3

6 .4*2 .

4*3 .5

6 .6*2 .6

*3 .6

8 . 1*2 .9

*3 .8

8 .3*3 .

1 *4 .0

8 .6*3 .2

*4 .2

9 .8*4 .2 *4 .5

12 .9*4

*7 .5





Work flow chart:

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 3

After-sales service:

1. Our service tenet is "to provide customers with sincere, quality service". We are committed to honesty and good service to our customers and are committed to continuously improving the quality of service and increasing user satisfaction.
2. Provide technical advice to users, including the use and maintenance of products
Assembly, use characteristics and other technical problems, where the user needs to provide services,
The company will send the best engineering and technical personnel for customer service and technical consultation.
3. When users use our products for quality problems, they will reply within 1 hour when receiving customer service needs, and provide solutions within 24 hours.
4. Implement the "Product quality responsible person system". After the contract is signed, from product manufacturing, warehousing, delivery to installation, trial operation, the whole process of service, improve the quality of the project.
Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 4Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation 5
