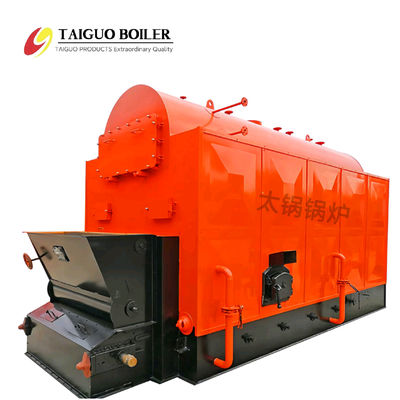

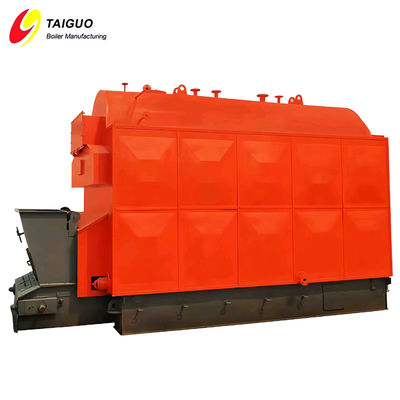

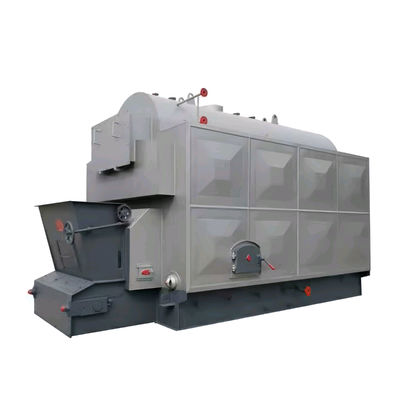

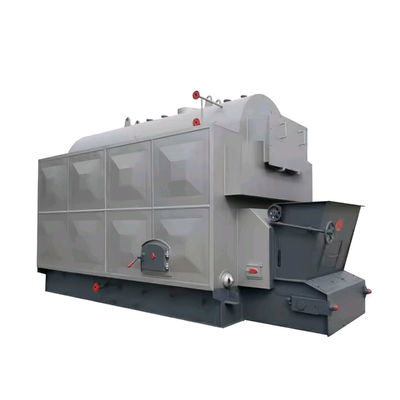

1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler

1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler

Product Details:

Place of Origin: HENAN
Brand Name: TAIGUO
Certification: SGS EAC CE
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US5000-9500 set
Delivery Time: 15-25DAYS
Payment Terms: L/C, D/A, D/P, T/T
Get Best Price Contact Now

Detail Information
Capacity: 1-20t/h Control System: PLC/Manual/Automatic
Design Efficiency: 83% Design Structure: Horizontal/Vertical
Efficiency: 80-90% Emission Standard: Class I/Class II/Class III
Fuel: Coal/Biomass Fuel Consumption: 150-280Kg/h
Installation: Packaged/Field Assembly Model: DZL Coal Biomass Steam Boiler
Pressure: 1.0-2.5Mpa Temperature: 184-350℃
Warranty: 1 Year
Highlight:

1T Chain Grate Coal Fired Steam Boiler

,

Wood Waste Timber Biomass Steam Boiler

,

1 Ton Timber Biomass Steam Boiler

Product Description

Fully Automatic 1ton Wood Waste Timber Chain Grate Coal Fired Steam Boiler1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 01 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 11 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 2

1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 3Mode l


item



DZL1



DZL2



DZL3



DZL4



DZL6



DZL8



DZL10



DZL12



DZL15



Rated evaporation

capacity(t/h)

123468101215
Rated pressure(Mpa )

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

1 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .6
Rated steam temperat ure( ℃ )

170/ 184/

194

170/ 184/

194

170/ 184

/ 194

194/204194/204194/204190/204194/204194/204
Feed water temperat ure( ℃ )202020202020202020
Heating Area( m)Body~33~50~75~100~170~200~250~340~415
Economizer20 .725 .328 .633 . 1287 .298145168189
Effective area of garte ( m)2 .224 . 15 .856.27 .959 .7510 .7713 .416 .6
Fuel typeBiomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell

Fuel

Consumption

(kg/h)

~200~400~600~800~1000~1200~1400~1600~1800
Flue gas temperat ure( ℃ )~150~150~150~150~150~150~150~150~150
T hemal efficiency(%)~82~82~82~82~82~82~82~82~82

Weight of biggest

part for

t ransportation(t)

1718 .520253545586477
Overall dimension of biggest part for t ransportation( m)

5 . 1*2 .2

*3

5 .5*2 .3

*3 .3

6 .4*2 .

4*3 .5

6 .6*2 .6

*3 .6

8 . 1*2 .9

*3 .8

8 .3*3 .

1 *4 .0

8 .6*3 .2

*4 .2

9 .8*4 .2 *4 .5

12 .9*4

*7 .5




1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 41 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 51 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler 6
