300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing

300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$10000.00
Packaging Details: Bulk, packaged
Delivery Time: 25 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10set
Get Best Price Contact Now

Detail Information

Product Type: Industrial Steam Industrial Steam: 1t/h-10t/h
Working Pressure: 1.0、1.25、1.6Mpa Fuel: Biomass, Wood, Coal
Rated Feed Water Temperature: 20℃ Warranty: 1 Year
Condition: New Weight: Refer To The Models
Boiler Structure: Firetube
High Light:

300kg chain grate biomass steam boiler

,

dyeing chain grate biomass steam boiler

,

500kg biomass fired steam boiler

Product Description

Product introduction:

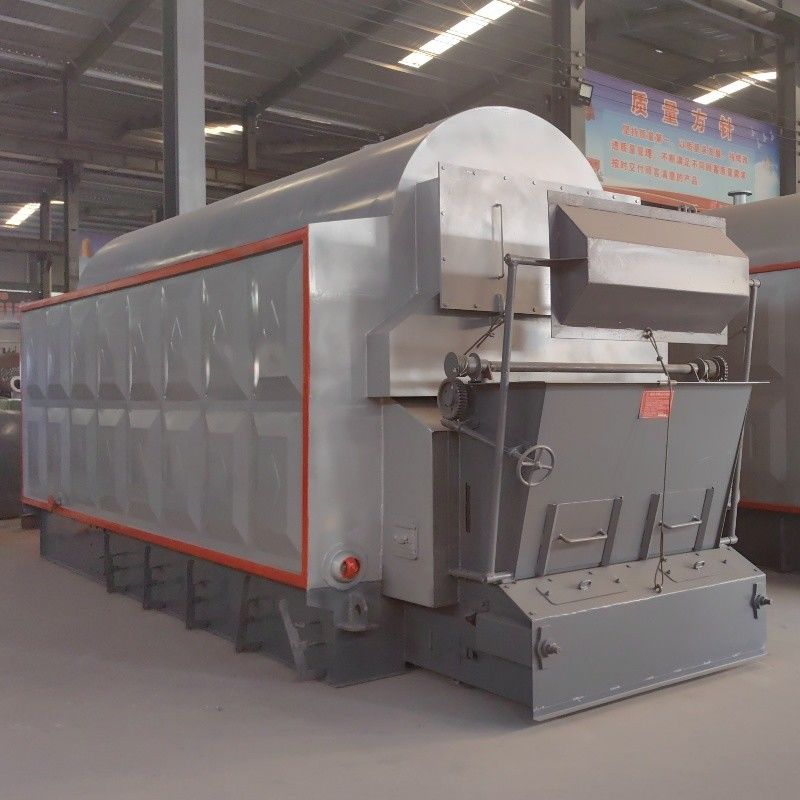

The DZL boiler is a single barrel vertical water pipe shell steam boiler. The combustion equipment is a chain stove. The left and right sides of the stove are equipped with a fins of water cooling walls. The heating surface is arranged in the pot drum.
The chain furnace rows of mechanical coal inlet, equipped with a blossom and induced fan to achieve mechanical ventilation, and equipped with scratch furnace slag machines to achieve mechanical furnaces.

Technical parameter:

300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing 0Mode l


item



DZL1



DZL2



DZL3



DZL4



DZL6



DZL8



DZL10



DZL12



DZL15



Rated evaporation

capacity(t/h)

123468101215
Rated pressure(Mpa )

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

1 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .61 .25/ 1 .6
Rated steam temperat ure( ℃ )

170/ 184/

194

170/ 184/

194

170/ 184

/ 194

194/204194/204194/204190/204194/204194/204
Feed water temperat ure( ℃ )202020202020202020
Heating Area( m)Body~33~50~75~100~170~200~250~340~415
Economizer20 .725 .328 .633 . 1287 .298145168189
Effective area of garte ( m)2 .224 . 15 .856.27 .959 .7510 .7713 .416 .6
Fuel typeBiomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell

Fuel

Consumption

(kg/h)

~200~400~600~800~1000~1200~1400~1600~1800
Flue gas temperat ure( ℃ )~150~150~150~150~150~150~150~150~150
T hemal efficiency(%)~82~82~82~82~82~82~82~82~82

Weight of biggest

part for

t ransportation(t)

1718 .520253545586477
Overall dimension of biggest part for t ransportation( m)

5 . 1*2 .2

*3

5 .5*2 .3

*3 .3

6 .4*2 .

4*3 .5

6 .6*2 .6

*3 .6

8 . 1*2 .9

*3 .8

8 .3*3 .

1 *4 .0

8 .6*3 .2

*4 .2

9 .8*4 .2 *4 .5

12 .9*4

*7 .5

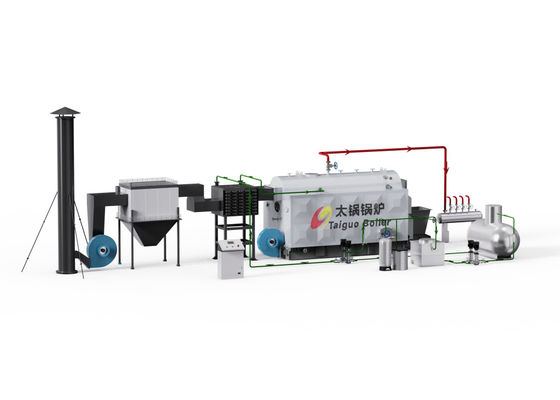

Work flow chart:

300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing 1

After-sales service:

1. Our service tenet is "to provide customers with sincere, quality service". We are committed to honesty and good service to our customers and are committed to continuously improving the quality of service and increasing user satisfaction.
2. Provide technical advice to users, including the use and maintenance of products
Assembly, use characteristics and other technical problems, where the user needs to provide services,
The company will send the best engineering and technical personnel for customer service and technical consultation.
3. When users use our products for quality problems, they will reply within 1 hour when receiving customer service needs, and provide solutions within 24 hours.
4. Implement the "Product quality responsible person system". After the contract is signed, from product manufacturing, warehousing, delivery to installation, trial operation, the whole process of service, improve the quality of the project.
300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing 2300kg 500kg Chain Grate Biomass Steam Boiler Small Scale For Dyeing 3
