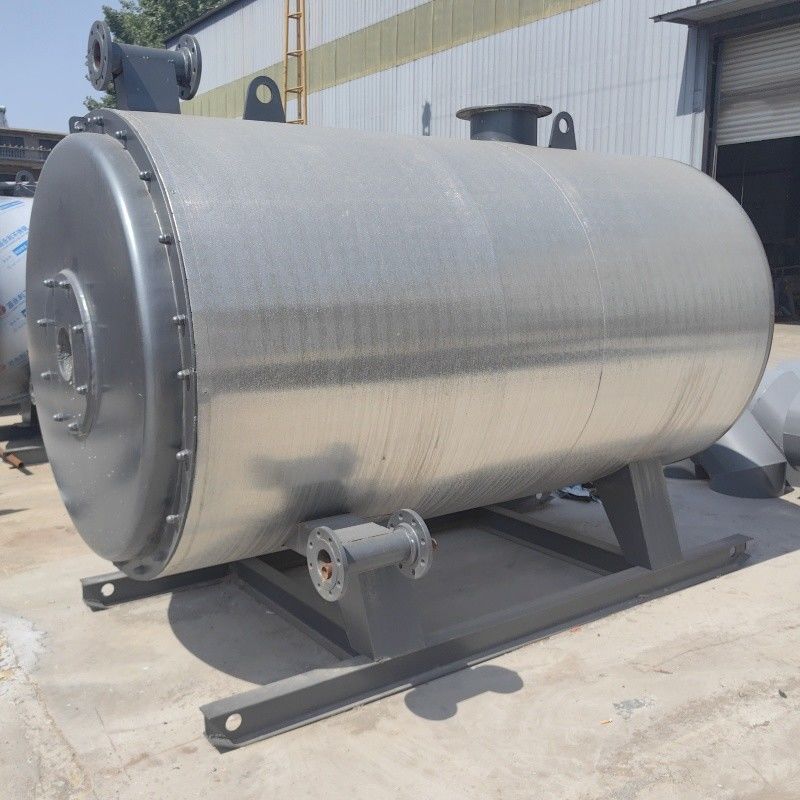

PLC High Temperature Thermal Oil Boiler For Plywood
Product Details:
| Place of Origin: | HENAN |
| Brand Name: | TAIGUO |
| Certification: | CE\EAC\SGS\ISO19001 |
| Model Number: | YYQW-720Y |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US9000-29500 set |
| Packaging Details: | Whole box packaging |
| Delivery Time: | 15-25DAYS |
| Payment Terms: | T/T, D/P |
| Supply Ability: | 10set |
|
Detail Information |
|||
| Burner: | Customized | Capacity: | Customized |
|---|---|---|---|
| Control System: | PLC Or DCS | Design: | Horizontal Or Vertical |
| Efficiency: | High | Fuel: | Oil |
| Installation: | On-site Or Factory | Material: | Carbon Steel Or Stainless Steel |
| Pressure: | Customized | Safety: | High |
| Service: | OEM Or ODM | Temperature: | Customized |
| Type: | Thermal Oil Boiler | Warranty: | 1 Year |
| High Light: | PLC thermal oil boiler,High Temperature thermal oil boiler,Plywood hot oil boiler |
||
Product Description
Product introduction:

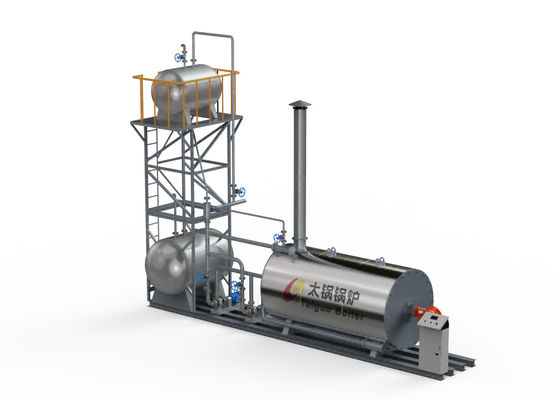

The heat -conducting oil furnace is directly heated in the electric heating device directly into the organic carrier (thermal conductivity), and the heated thermal conductive oil is transported to the heat -using equipment through the high temperature oil pump for the hydraulic cycle. Heating the electric oil furnace is heated to form a complete circulating heating system. The electric heating heat -conducting oil furnace uses a digital temperature control temperature control temperature, which has ultra -temperature alarm, low oil level alarm, and ultra -pressure alarm function.
This series of boilers has a high -level program control system, equipped with liquid level controller, pressure controller, temperature controller and alarm to ensure the orderly work of the boiler. Therefore, this is a safe boiler with high efficiency and low power consumption.
Product advantage:
1. It has the characteristics of low pressure, high temperature, safety, and efficient energy saving.
2. With complete operational control and safety monitoring devices, the working temperature can be precisely controlled.
3. Reasonable structure, complete supporting, short installation cycle, convenient operation and maintenance, and facilitate boiler layout.
4. Because the electric heating organic heating carrier uses an advanced explosion -proof structure, it can be applied to the factory II explosion -proof, and the explosion -proof level can reach Class C.
Technical parameter:
|
ltem |
YY(Q)W 350 |
YY(Q)W 500 |
YY(Q)W 700 |
YY(Q)W 1400 |
YY(Q)W 2100 |
YY(Q)W 2800 |
YY(Q)W 3500 |
YY(Q)W 4200 |
YY(Q)W 7000 |
YY(Q)W 14000 |
||
|
Rated thermal p ower |
KW | 350 | 500 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 7000 | 14000 | |
| Design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
| Medium outlet t emperature | C | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | |
| Heating area | m | 21.3 | 24 | 40 | 78.5 | 94.5 | 157 | 205.2 | 240 | 410 |  710 |
|
| Fuel | light oil/heavy/LNG/CG | |||||||||||
|
Fuel |
Light oil |
Kg/h |
37 | 52 | 69 | 140 | 210 | 280 | 350 | 420 | 680 | 1360 |
| LNG |
Nm3/h |
44 | 63 | 83 | 170 | 260 | 332 | 425 | 498 | 810 | 1620 | |
| Thermal efficiency | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | ||
| Furnace oil cont ent | m3 | 0.25 | 0.3 | 0.5 | 1.1 | 1.7 | 2.29 | 3.8 | 4.3 | 7 | 15.5 | |
|
Boiler dimension s |
mm |
2100× 1390× 2055 |
2200× 1390× 2055 |
3240× 1470× 2260 |
4145× 1900× 2786 |
5020× 2050× 3080 |
5526× 2326× 3230 |
6555× 2470× 3634 |
6753× 2838× 3704 |
8200× 3050× 3800 |
12000× 3780× 4350 |
|
| Boiler transport weight |
T |
2.58 |
3 |
3.7 |
6.9 |
8.8 |
11.5 |
17.8 |
19.8 |
27.5 |
42 |
|
| Oil inlet |
DN |
80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 | |
| Oil outlet |
DN |
80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 | |
| Expansion tank |
m3 |
1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 3 | 3 | 4.5 | 6 | 8 | |
| Storage tank |
m3 |
2.5 | 2.5 | 2.5 | 5 | 5 | 8 | 8 | 10 | 15 | 25 | |
| ChimneyΦ | mm | 280 | 280 | 280 | 350 | 400 | 400 | 500 | 500 | 700 | 1000 | |
