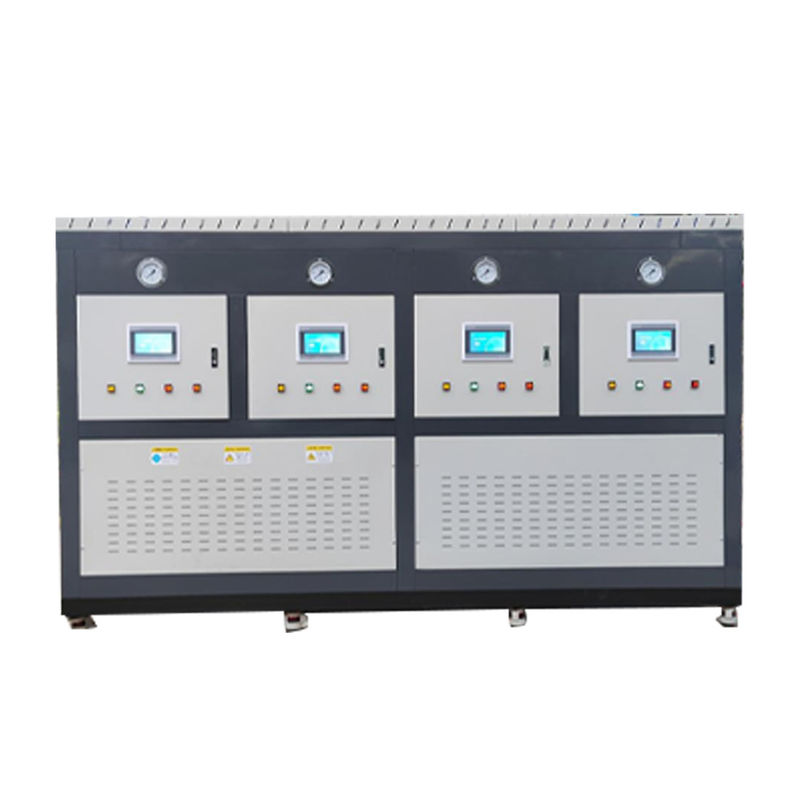

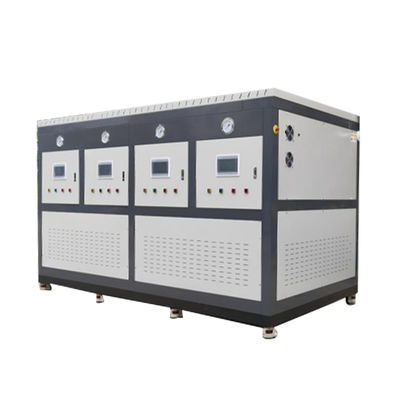

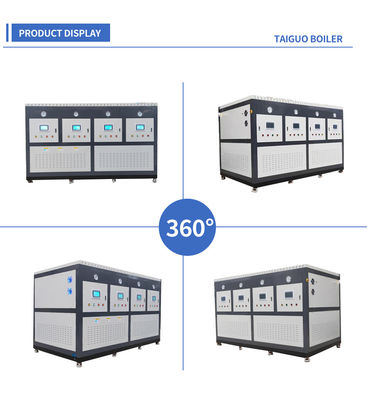

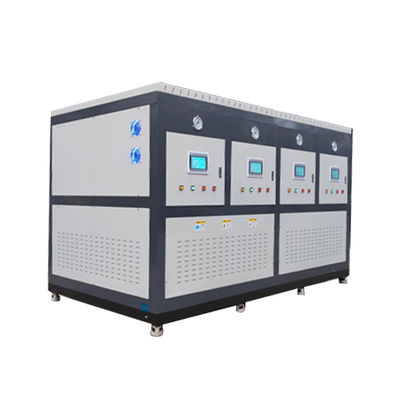

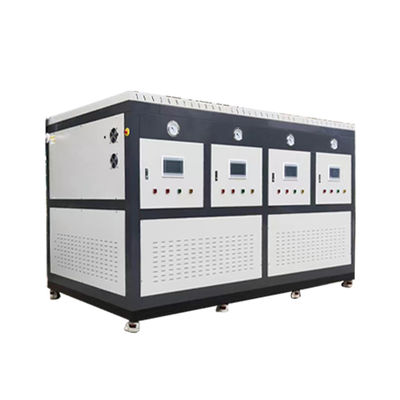

300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving

300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: DZZQ

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $16000.00set
Payment Terms: L/C, T/T
Get Best Price Contact Now

Detail Information

Control System: PLC Design Efficiency: 98%
Fuel: Electricity Structural Form: Vertical Type
Operation Mode: Automatic Steam Yield: 0.5t/h-2t/h
Pressure: 0.1-1.0MPa Product Name: Electric Steam Generator
Safety Protection: High Temperature, Pressure, Water Level Size: Customizable
Steam Output: 20-1000Kg/h Steam Temperature: 120-185℃
Voltage: 380V/50HZ Warranty: 1 Year
High Light:

300KW 500KW Electric Steam Boiler

,

Vertical Steam Generator Energy Saving

,

300KW 500KW Vertical Steam Generator

Product Description

Electric steam boiler 300kw 500KW vertical steam generator Energy saving and high thermal efficiency300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving 0300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving 1300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving 2

Model speci ficationsDZZQ-36DZZQ-72DZZQ-144DZZQ-216DZZQ-360DZZQ-504DZZQ-720DZZQ-1080DZZQ-1400
Rated power (kW)367214421636050472010801400
Rated current (A)54108216324540756108016202160
Voltage frequency (V/HZ)



380/50



380/50



380/50



380/50



380/50



380/50



380/50



380/50



380/50

Electric heating efficiency (%)



≥95



≥95



≥95



≥95



≥95



≥95



≥95



≥95



≥95

Number of heating tube groups (group))



2



2



4



6



10



14



20



30



40

Working pressure (Mpa)



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0



0.1-1.0

Evaporation (kg/h)



50



100



200



300



500



700



1000



1500



2000

Air outlet/

sewage outlet (DN)



25/40



25/40



25/40



25/40



40/40



50/50



50/50



65/50



65/50

Auxiliary control functionAutomatic control + remote control
Product weight (kg)



85



150



318



450



750



1000



1300



2100



2600

Appearance size (m)0.8*1.0*1.60.8*1.0*1.71.4*1.4*1.72.0*1.6*1.71.4*1.4*1.71.6*1.6*1.72.6*1.6*1.73.7*1.6*1.84.5*1.6*1.8


300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving 3300KW 500KW Electric Steam Boiler Vertical Steam Generator Energy Saving 4
