Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan

Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan

Product Details:

Place of Origin: HENAN,CHINA
Brand Name: taiguo boiler
Certification: CE,SGS,EAC
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 6999-25000USD
Packaging Details: nude packing
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Model: DZL Coal Biomass Steam Boiler Steam Capacity: 1t/h-15t/h
Combustion System: Mechanical Chain Grate Structural Form: Horizontal Type
Steam Yield: 1t/h-20t/h Grate Material: Cast Iron/Steel
Installation: Packaged Boiler, Easy To Transport And Install Emission: ≤30mg/m³
Boiler Structure: Firetube Type: Horizontal Chain Grate Boiler
Control System: PLC Intelligent Control System Boiler Warranty: 1 Years
Industrial Steam: 1t/h-10t/h Fuel Type: Biomass,coal
Highlight:

Semi-automatic Biomass Burning Steam Boiler

,

Horizontal Biomass Burning Steam Boiler

Product Description

product introduction:

DZL series biomass horizontal three-return water fire tube chain grate boiler is a quick boiler, the capacity covers 2-20 tons, the thermal efficiency can reach more than 88%. By extending the furnace arch, increasing the height of the furnace, adjusting the width and length of the grate, the Taipan has solved the problems that occur easily in biomass boilers, such as furnace arch collapse, furnace door burning, hopper tempering and tube wall coking. It has the characteristics of wide fuel adaptation, small footprint, convenient installation and high thermal efficiency.



product feature:

1. Horizontal boiler drum is arranged longitudinally water tube boiler, both sides of the furnace are densely covered with light tube water wall tube, and convection tube bundle is arranged between the back of the upper cylinder and the lower cylinder;
2. Large heating area, good heat transfer effect, sufficient output, low smoke exhaust temperature;
3. The matching front and rear arches are used to make the combustion condition good and the combustion full;
4. The front and back arches can be adjusted to make the applicable coal wide;
5. Divided into the upper and lower parts of the factory, on-site assembly, short installation cycle, low installation costs, boiler room using single-layer layout, capital construction costs;
6. Pressure (temperature) and water shortage adopt multiple interlocking protection to ensure safe and reliable operation of the boiler;





Technical Paramet:
Mode

DZL1

DZL2

DZL3

DZL4

DZL6

DZL8

DZL10
Rated evaporation
capacity(t/h)
1
2
3
4
6
8
10
Rated pressure(Mpa )
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
Rated steam temperat ure( ℃ )
170/ 184/
194
170/ 184/
194
170/ 184
/ 194
194/204
194/204
194/204
190/204
Feed water temperature( ℃ )
20
20
20
20
20
20
20
Heating Area( m)
Body
~33
~50
~75
~100
~170
~200
~250
Fuel type
Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption
(kg/h)
~200
~400
~600
~800
~1000
~1200
~1400
Flue gas temperature( ℃ )
~150
~150
~150
~150
~150
~150
~150
Themal efficiency(%)
~82
~82
~82
~82
~82
~82
~82
Weight of biggest
part for transportation(t)
17
18 .5
20
25
35
45
58
Overall dimension of biggest part for transportation( m)
5 . 1*2 .2
*3
5 .5*2 .3
*3 .3
6 .4*2 .
4*3 .5
6 .6*2 .6
*3 .6
8 . 1*2 .9
*3 .8
8 .3*3 .
1 *4 .0
8 .6*3 .2
*4 .2

Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan 0

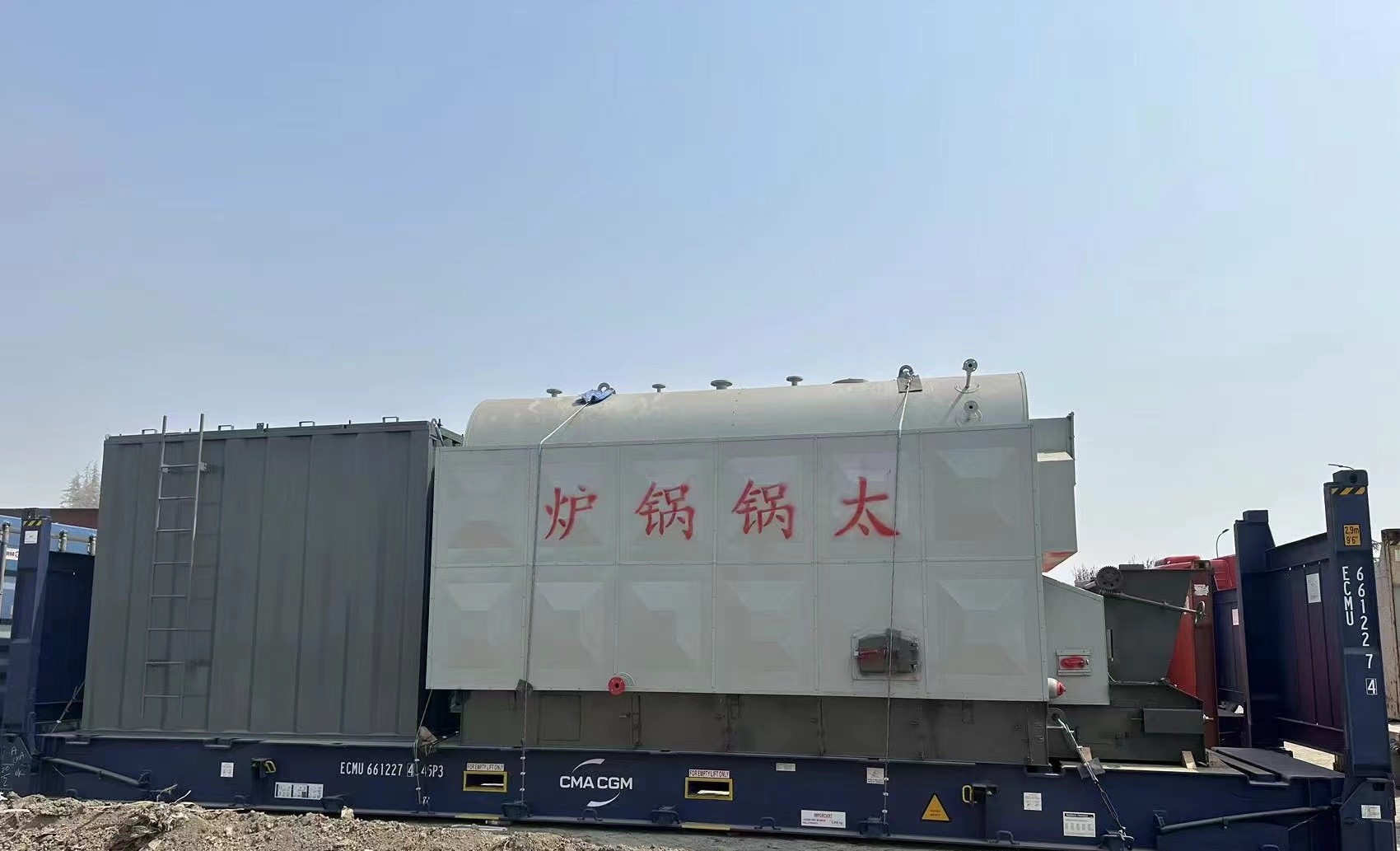

product picture:



Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan 1





Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan 2



Semi-automatic DZL 1t/ H-20T /h Horizontal Biomass Burning Steam Boiler Origin Henan 3
