1-15t/H Dzl Chain Grate Coal Burning Biomass Steam Boiler

1-15t/H Dzl Chain Grate Coal Burning Biomass Steam Boiler

Product Details:

Place of Origin: HENAN,CHINA
Brand Name: taiguo boiler
Certification: CE,SGS,EAC
Model Number: DZl

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 4999-15999USD
Packaging Details: nude packing
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Steam Capacity: 1t/h-15t/h Capacity: 1-15t/h
Product Model: DZL Thermal Efficiency: 85%
Emission: ≤30mg/m³ Transport: Sea Transportation
Structural Form: Horizontal Chain Warranty Period: 12 Months
Rated Working Pressure: 170/184/194 Feed Water Temperature: 20℃
Product Type: Biomass Chain Steam Boiler Application: Industrial Production, Heating, Power Generation
Boiler Type: Steam Boiler
High Light:

15t/H Biomass Steam Boiler

,

Coal Burning Biomass Steam Boiler

Product Description

product presentation:

DZL-T biomass boiler is a new type of high efficiency and low carbon environmental protection boiler fueled by biomass particles, which is mainly divided into biomass steam, biomass heat conduction oil furnace and hot water boiler. Biomass pellet fuel is the use of straw, rice straw, fuelwood, sawdust peanut shell, melon seed shell, corncob, beet pulp bark and other waste crops, by grinding - mixing - extrusion - drying process. The final product is a granular fuel. Its raw materials are widely distributed and the processing technology is advanced. Biomass pellets are known as green coal and are a kind of clean energy. As a boiler fuel, it has a long combustion time, a high temperature of the intensified combustion furnace, and is economical, while there is no pollution to the environment. It is a renewable energy source, and the burned ash residue is a very good fertilizer that can be recycled, which can replace the traditional boiler to burn wood, coal, natural gas and other non-reproducible resources, and is an energy-efficient environmental protection product.

product feature:

1. Horizontal boiler drum is arranged longitudinally water tube boiler, both sides of the furnace are densely covered with light tube water wall tube, and convection tube bundle is arranged between the back of the upper cylinder and the lower cylinder;
2. Large heating area, good heat transfer effect, sufficient output, low smoke exhaust temperature;
3. The matching front and rear arches are used to make the combustion condition good and the combustion full;
4. The front and back arches can be adjusted to make the applicable coal wide;
5. Divided into the upper and lower parts of the factory, on-site assembly, short installation cycle, low installation costs, boiler room using single-layer layout, capital construction costs;
6. Pressure (temperature) and water shortage adopt multiple interlocking protection to ensure safe and reliable operation of the boiler;

technical specification:



Mode

DZL1

DZL2

DZL3

DZL4

DZL6

DZL8

DZL10
Rated evaporation
capacity(t/h)
1
2
3
4
6
8
10
Rated pressure(Mpa )
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
Rated steam temperat ure( ℃ )
170/ 184/
194
170/ 184/
194
170/ 184
/ 194
194/204
194/204
194/204
190/204
Feed water temperature( ℃ )
20
20
20
20
20
20
20
Heating Area( m)
Body
~33
~50
~75
~100
~170
~200
~250
Fuel type
Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption
(kg/h)
~200
~400
~600
~800
~1000
~1200
~1400
Flue gas temperature( ℃ )
~150
~150
~150
~150
~150
~150
~150
Themal efficiency(%)
~82
~82
~82
~82
~82
~82
~82
Weight of biggest
part for transportation(t)
17
18 .5
20
25
35
45
58
Overall dimension of biggest part for transportation( m)
5 . 1*2 .2
*3
5 .5*2 .3
*3 .3
6 .4*2 .
4*3 .5
6 .6*2 .6
*3 .6
8 . 1*2 .9
*3 .8
8 .3*3 .
1 *4 .0
8 .6*3 .2
*4 .2

product picture:

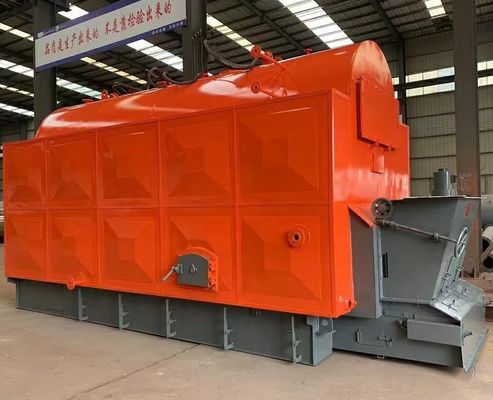

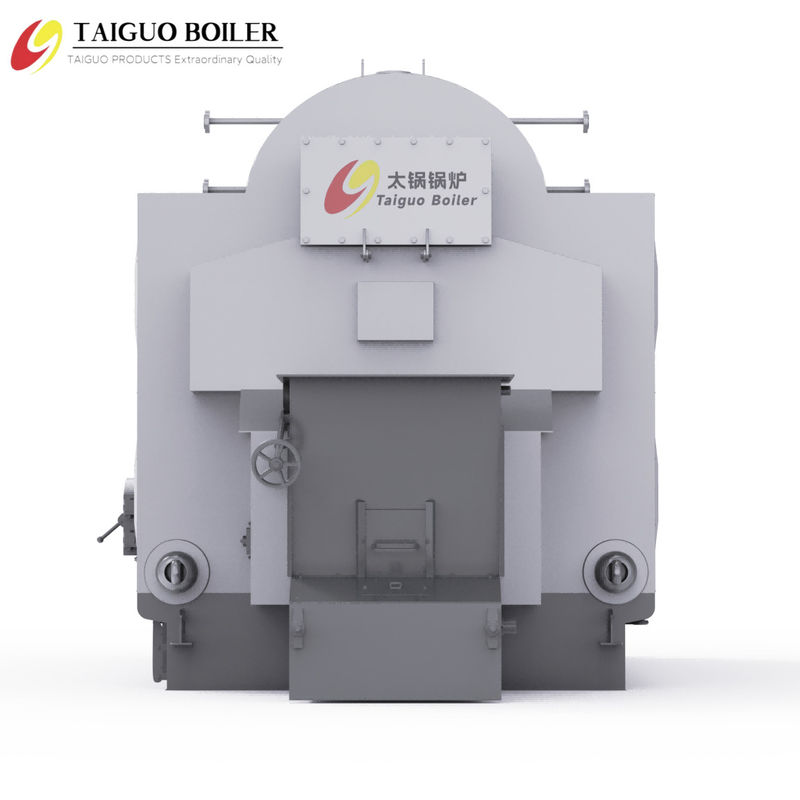

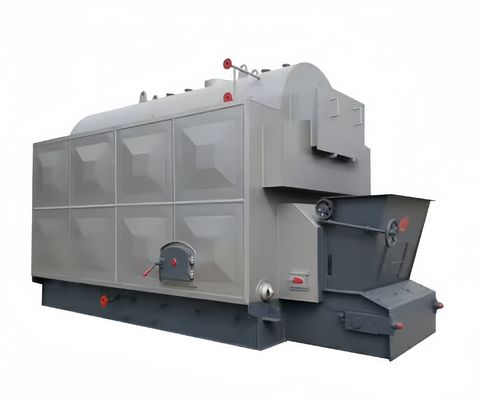

1-15t/H Dzl Chain Grate Coal Burning Biomass Steam Boiler 01-15t/H Dzl Chain Grate Coal Burning Biomass Steam Boiler 11-15t/H Dzl Chain Grate Coal Burning Biomass Steam Boiler 2
