SZS4-10t/h Double Barrel Oil Gas Steam Boiler For Wood Processing

SZS4-10t/h Double Barrel Oil Gas Steam Boiler For Wood Processing

Product Details:

Place of Origin: HENAN,CHINA
Brand Name: taiguo boiler
Certification: CE,SGS,EAC
Model Number: SZS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9999-19999USD
Packaging Details: nude packing
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Drum Placement: Horizontal Boiler, Horizontal Boiler Rated Thermal Power: 1400-6000KW
Output: Steam Quality Guarantee: 1 Year
Working Pressure: 1.0、1.25、1.6Mpa Rated Steam Temperature: 184/194/204
Heat Exchanger Material: Cast Iron/Steel Specification: Szs
Media: Steam Country Of Origin: Zhoukou In Henan Province
Burning Style: Chamber Combustion Boiler Rated Evaporation: 1-20T/h
Trademark: TAIGUO
High Light:

10t/h Gas Oil Boiler

,

Wood Processing Gas Oil Boiler

,

Double Barrel Gas Oil Boiler

Product Description

Product introduction:
SZS oil (gas) saturated steam water tube boiler adopts double pot simple longitudinal type D layout design, boiler pressure body stress condition is good, pot simple and other important pressure elements are not directly affected by high temperature flame radiation and scour, pressure elements are flexible, thermal stress is small, to achieve higher safety margin.
Modular design:
The whole boiler is divided into the body and the economizer and other accessories, the body is composed of the furnace and the single loop convection heating surface, and the economizer is transported in a whole factory to ensure the quality of the boiler. Small positive pressure combustion, small smoke wind resistance. The boiler smoke and air system is only equipped with blowers, and the furnace is under micro positive pressure to reduce the air leakage of the boiler and improve the efficiency of the boiler.
Security precautions:
The film water wall is used to improve the rigidity of furnace and flue and the anti-explosion ability of boiler wall. Explosion-proof doors are set in the explosive parts to prevent deflagration from damaging the furnace wall. Good configuration of combustion system
The selection of famous brand burners with superior performance, efficient combustion, reduce the loss of mechanical incomplete combustion, chemical incomplete combustion, achieve low oxygen combustion, reduce excess air, reduce the exhaust temperature as much as possible, reduce the exhaust heat loss, improve the boiler thermal efficiency, and minimize the operating costs.
Powerful automatic control system:
The company has the best automatic control technology capabilities in the boiler industry, using automatic proportional combustion regulation, three-impulse feed water automatic regulation system, program start-stop operation advanced technology, and has high and low water level alarm and extremely low water level.

Product advantage:

1.high degree of automation, reliable operation of equipment. It adopts mechatronics control equipment and programmable logic controller (PLC) joint control mode. The advanced programmable logic controller (PLC) is the "central processor" of the control system. The control system is operated by touch screen, so that the degree of automatic control and reliable operation of the boiler are greatly improved, and the operation is more simple and intuitive.
2. long life, sufficient output, high efficiency. Scientific product design, advanced processing technology, rigorous quality control, all the boiler equipment produced by the factory continuous operation life of more than 10 years. The radiant heating surface of the boiler is full corrugated furnace, the convective heating surface adopts threaded smoke pipe, the heating surface is large, the boiler heat production output is sufficient, and the thermal efficiency can reach more than 92%, which is higher than the national regulations.
3. Abundant fuel, energy saving and environmental protection. Boiler combustion chamber design is reasonable, fully adapt to urban gas, natural gas, light diesel, heavy oil and other fuels, fuel in the furnace slight positive pressure combustion, combustion is complete, less flue gas  pollutants, boiler smoke blackness, soot blackness, concentration, noise and other technical indicators are better than the national Class A regional standards.

technical specification:

Model

SZS4

SZS6

SZS10

SZS15

SZ20

SZ25

SZS30

SZS35
Rated evaporation
(t/h)

4

6

10

15

20

25

30

35
Rated working pressure
(Mpa)

1.25/ 1.6/2.5
Rate steam temperature
(℃)

194/204/226
Feed water temperature
(℃)
20
20
104/20
104/20
104/20
104/20
104/20
104/20
heating
area(m)Body
90.22
125.6
205.56
216.84
271.5
285.24
392.34
457.7
Available Fuel
natural gas ,biogas ,coke gas ,light oil ,methanol ,biodiesel etc ,heavy oil
Fuel consumption
Natural gas(Nm3/h)

288

432

720

1080

1440

1800

2160

2525
Thermal efficiency (%)
>98
Weight biggest part of Transportation (t)
25
32
40
45
50.6
60
68.2
77
Overall dimension boiler assembied L×W×H( m )
5.76*4.1 0*3.70
7.84*3.4 0*3.40
8.00*43. 60*4.70
8.90*3.9 0*4.00
8.90*3.9 0*4.00
10.50*4. 12*4.15
10.50*4. 30*4.23
11.78*4. 40*4.3

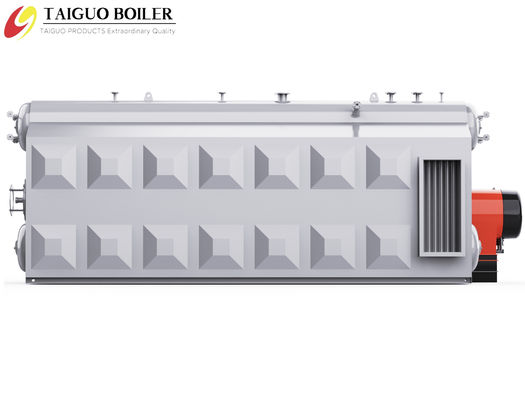

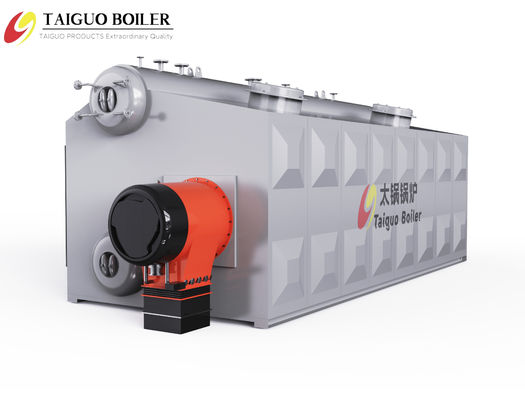

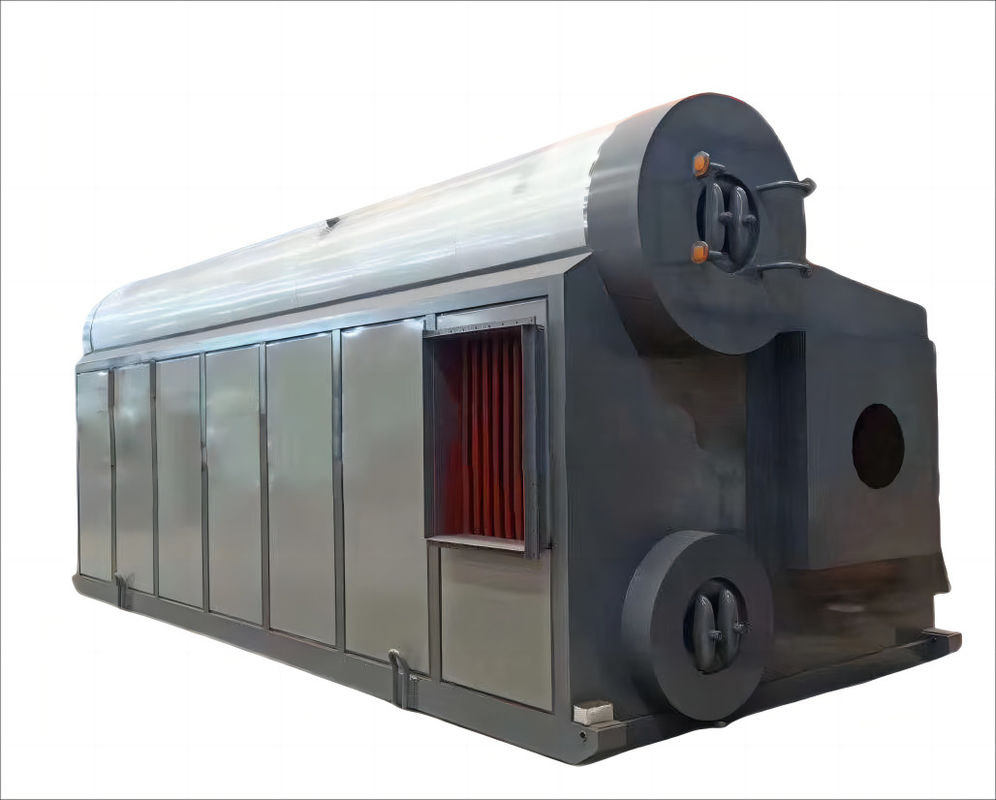

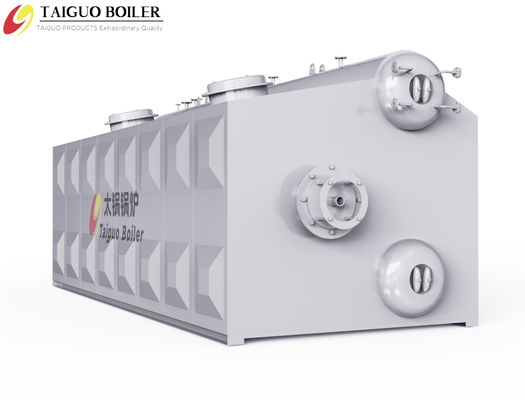

product picture:

SZS4-10t/h Double Barrel Oil Gas Steam Boiler For Wood Processing 0SZS4-10t/h Double Barrel Oil Gas Steam Boiler For Wood Processing 1
