Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler

Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler

Product Details:

Place of Origin: HENNAN,CHINA
Brand Name: taiguo boiler
Certification: CE,SGS,EAC
Model Number: dzl

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 5000-10000USD
Packaging Details: nude packing
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Mode Of Transport: Sea And Land Transport Efficiency: 83%
Exhaust Temperature: ≤160℃ Combustion System: Biomass Combustion
Capacity: 1-20 Ton/h Design Pressure: 1.0、1.25、1.6Mpa
Transport: Sea Transportation Grate Type: Chain Grate
Structure: Horizontal Water Tube Colour: Orange
Structural Form: Horizontal Type Steam Yield: 1t/h-10t/h
Application: Industrial Condition: New
Temperature: 184/194/204
Highlight:

Automatic control system Biomass Steam Boiler

,

1-10t/h Biomass Steam Boiler

Product Description

Product introduction:

DZL series boiler is a horizontal three-return water and fire tube chain grate boiler, burning medium bituminous coal. The boiler body is arranged longitudinally in a single cylinder, the threaded pyrotechnics tube is arranged in the cylinder to form a convection heating surface, and the boiler cylinder and the water cooling wall on both sides form a radiation heating surface of the furnace. The combustion equipment adopts light chain grate; The whole quick pack form factory. The electric control realizes stepless speed regulation of grate, alarm of limit parameter and interlock protection.

product feature:

1, the use of efficient heat transfer element a threaded smoke pipe, with a reasonable flue gas flow rate, so that the boiler thermal efficiency is 6-8 percentage points higher than the national professional standard.
2, arch tube plate, threaded smoke pipe make the shell from quasi-rigid body to quasi-elastic body, with the airfoil flue, completely avoid the problem of traditional pyrotechnics boiler high-temperature tube plate cracking.
3, reasonable water circulation circuit and unique return water ejector device (hot water boiler), improve the rising pipe water speed, avoid the water wall explosion.
4. Inertial separation of smoke and dust in the furnace is adopted. With the help of high-efficiency multi-tube dust collector, the boiler dust concentration can meet the requirements of a class of areas.
5, a reasonable boiler structure does not need steel frame to support its own weight.
6, the use of energy-saving, strong radiation furnace arch, can ensure the stable combustion of fuel.
7, the use of high standards, high-quality auxiliary machinery, accessories and automatic control equipment to ensure the safe and stable operation of the boiler, while reducing the labor intensity of the fireman.
8. Compact structure. 1-20t/h (0.7-14MW) boilers can be arranged in a single layer.

technical specification:



Mode

DZL1

DZL2

DZL3

DZL4

DZL6

DZL8

DZL10
Rated evaporation
capacity(t/h)
1
2
3
4
6
8
10
Rated pressure(Mpa )
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
0 .7/ 1 .0/
1 .25
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
1 .25/ 1 .6
Rated steam temperat ure( ℃ )
170/ 184/
194
170/ 184/
194
170/ 184
/ 194
194/204
194/204
194/204
190/204
Feed water temperature( ℃ )
20
20
20
20
20
20
20
Heating Area( m)
Body
~33
~50
~75
~100
~170
~200
~250
Fuel type
Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption
(kg/h)
~200
~400
~600
~800
~1000
~1200
~1400
Flue gas temperature( ℃ )
~150
~150
~150
~150
~150
~150
~150
Themal efficiency(%)
~82
~82
~82
~82
~82
~82
~82
Weight of biggest
part for transportation(t)
17
18 .5
20
25
35
45
58
Overall dimension of biggest part for transportation( m)
5 . 1*2 .2
*3
5 .5*2 .3
*3 .3
6 .4*2 .
4*3 .5
6 .6*2 .6
*3 .6
8 . 1*2 .9
*3 .8
8 .3*3 .
1 *4 .0
8 .6*3 .2
*4 .2

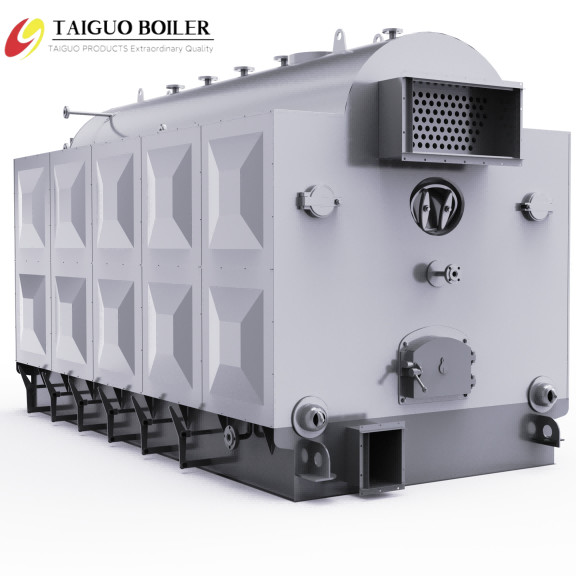

product picture:





Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler 0Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler 1
