Chain Grate Industrial Steam Water Heater Automatic Control Saves Manpower
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | DZL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Industrial Biomass Steam Boiler | Model Number: | DZL |
|---|---|---|---|
| Steam Yield: | 1t/h-10t/h | Fuel: | Biomass, Coal, Wood Chips, Etc |
| Structural Form: | Horizontal | ||
| High Light: | chain grate industrial steam water heater,saves manpower industrial steam water heater,automatic chain grate biomass steam boiler |
||
Product Description
Product introduction:

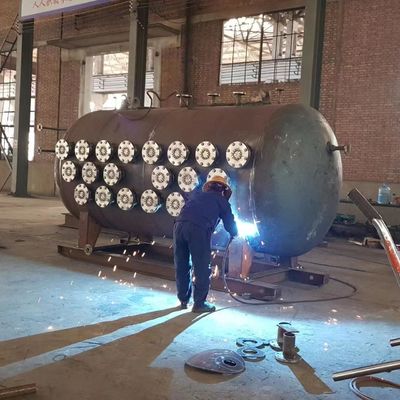

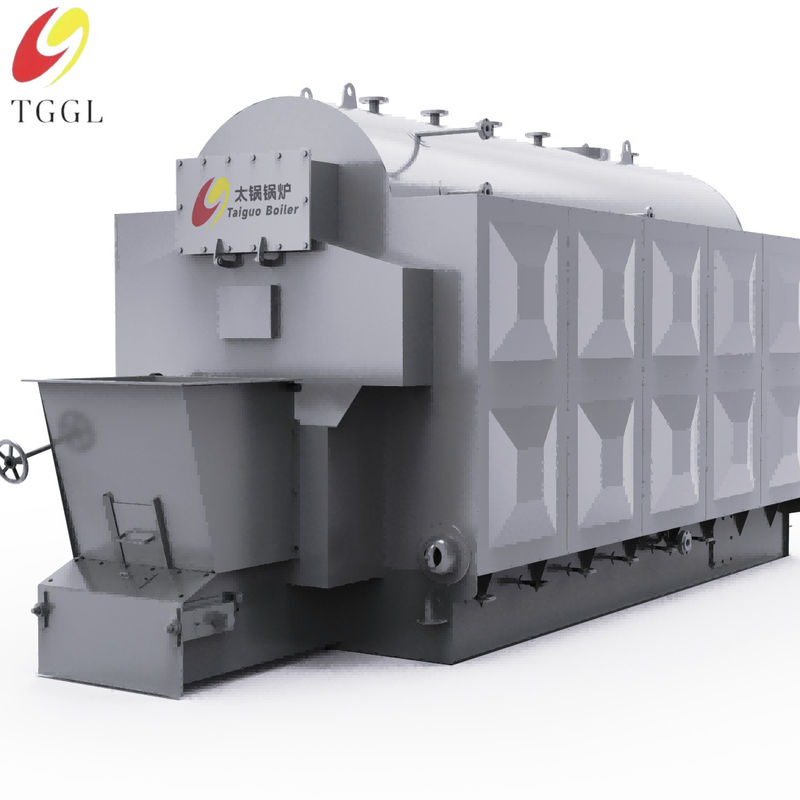

The DZL10-1.25-T boiler is a single-barrel longitudinal type water fire tube shell type steam boiler, the combustion equipment is a chain grate, the left and right sides of the furnace are equipped with fin film type water cooling wall, the inside and outside of the furnace are tubular convection heating surface, and the threaded smoke pipe convection heating surface is arranged in the pot drum. This series of boilers use the latest scientific research results, such as: fin film type water wall, arch tube plate, threaded smoke pipe, boiler shell bottom insulation, front and rear arch optimization, stoker split bin air supply, etc., to solve the boiler shell type boiler tube plate cracks, boiler drum lower drum, water wall burst pipe, low thermal efficiency, insufficient output, poor coal quality adaptability and other problems.
Product characteristics:
1. The use of high-efficiency heat transfer threaded smoke pipe improves the heat transfer coefficient, and obtains the characteristics of enhanced heat transfer effect to achieve boiler temperature rise and fast pressure increase, and improves the thermal efficiency of the boiler.
2.. Compact structure, compared with the same type of boiler, small size, save the boiler room infrastructure investment.
3. Stable operation and easy adjustment.

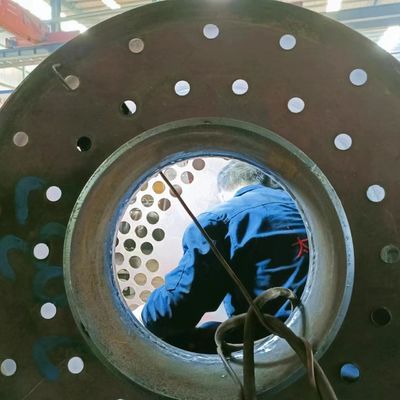

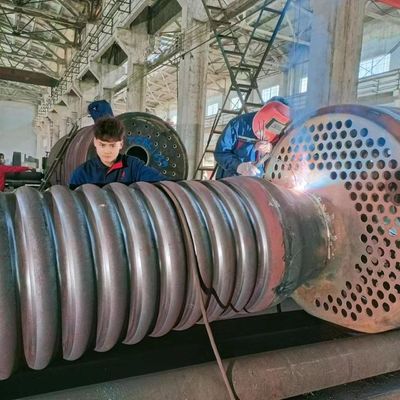

4. The threaded smoke pipe is used to strengthen heat transfer, improve heat transfer coefficient and thermal efficiency, and adopt reasonable flue gas
The speed is conducive to the disturbance and erosion of smoke in the pipe, and the pipe will not accumulate ash and play the role of self-cleaning.
Technical parameter:
item |
DZL1 |
DZL2 |
DZL3 |
DZL4 |
DZL6 |
DZL8 |
DZL10 |
DZL12 |
DZL15 | ||
Rated evaporation capacity(t/h) | 1 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 15 | ||
| Rated pressure(Mpa ) | 0 .7/ 1 .0/ 1 .25 | 0 .7/ 1 .0/ 1 .25 | 0 .7/ 1 .0/ 1 .25 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | ||
| Rated steam temperat ure( ℃ ) | 170/ 184/ 194 | 170/ 184/ 194 | 170/ 184 / 194 | 194/204 | 194/204 | 194/204 | 190/204 | 194/204 | 194/204 | ||
| Feed water temperat ure( ℃ ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||
| Heating Area( m) | Body | ~33 | ~50 | ~75 | ~100 | ~170 | ~200 | ~250 | ~340 | ~415 | |
| Economizer | 20 .7 | 25 .3 | 28 .6 | 33 . 12 | 87 .2 | 98 | 145 | 168 | 189 | ||
| Effective area of garte ( m) | 2 .22 | 4 . 1 | 5 .85 | 6.2 | 7 .95 | 9 .75 | 10 .77 | 13 .4 | 16 .6 | ||
| Fuel type | Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell | ||||||||||
Fuel Consumption (kg/h) | ~200 | ~400 | ~600 | ~800 | ~1000 | ~1200 | ~1400 | ~1600 | ~1800 | ||
| Flue gas temperat ure( ℃ ) | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ~150 | ||
| T hemal efficiency(%) | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ~82 | ||
Weight of biggest part for t ransportation(t) | 17 | 18 .5 | 20 | 25 | 35 | 45 | 58 | 64 | 77 | ||
| Overall dimension of biggest part for t ransportation( m) | 5 . 1*2 .2 *3 | 5 .5*2 .3 *3 .3 | 6 .4*2 . 4*3 .5 | 6 .6*2 .6 *3 .6 | 8 . 1*2 .9 *3 .8 | 8 .3*3 . 1 *4 .0 | 8 .6*3 .2 *4 .2 | 9 .8*4 .2 *4 .5 | 12 .9*4 *7 .5 | ||
