Straw Fuel Chain Grate Biomass Steam Boiler rice husk steam boiler ISO19001

Straw Fuel Chain Grate Biomass Steam Boiler rice husk steam boiler ISO19001

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 8000
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Mode Of Transport: Land And Sea Transport Design Pressure: 1.0、1.25、1.6Mpa
Capacity: 1-20t/h Structural Form: Horizontal
Control System: PLC Intelligent Control System Design Temperature: 184、194、204℃
Type: Chain Grate Biomass Steam Boiler Warranty Period: 12 Months
High Light:

Straw fuel Biomass Steam Boiler


Rice Husk Steam Boiler ISO19001


Chain Grate Biomass Steam Boiler ISO19001

Product Description

Straw fuel chain industrial steam boiler design temperature 184/194/204°C

Product Description:

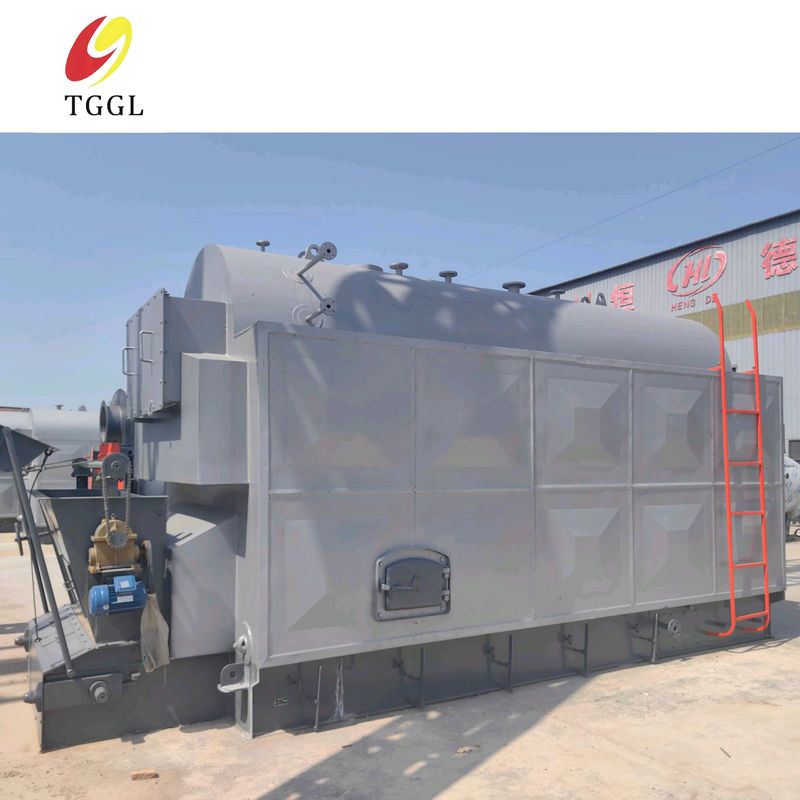

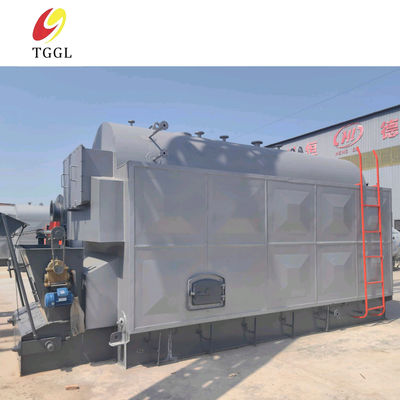

Chain Grate Biomass Steam Boiler is a type of grate fired boiler, designed for burning biomass fuels such as rice husks, straw, wood chips, sawdust, palm husks, coal and so on. This boiler is designed with high efficiency and the design efficiency can reach up to 83%. The maximum design temperature of this boiler is 204℃ and temperature range is from 184℃ to 204℃. In order to ensure the quality of the boiler, we offer 12 months warranty for it. Chain Grate Biomass Steam Boiler is highly reliable and efficient in providing excellent performance with grate fired boiler technology. It is a cost-effective solution for your energy needs and provides high-efficiency combustion of various types of biomass fuels. With features such as low emissions, low cost, and easy maintenance, it is widely used in various industries.



1. It can realize simulated controlled combustion without deflagration;
2. By adjusting the secondary air volume of the control speed, the combustion ignition speed can be controlled;
3. The front and rear arches are arranged with secondary air to ensure secondary combustion of fly ash after particle decomposition
4. Using scale type chain grate, mechanized feeding. The feed is uniform, the combustion is stable, the control is convenient, and the tempering is not suitable and the mechanical cleaning is convenient.

Technical Parameters:

Parameter Description
Application Chemical Industry, Light Industry, Building Materials, Culture, Plastic Foam, Rubber Processing, Paper Making, Wood Processing, Clothing And Leather
Design Pressure 1.0,1.25,1.6Mpa
Warranty Period 12 Months
Structural form Horizontal
Type Chain Grate Biomass Steam Boiler
Capacity 1-20t/h
Mode of transport Land And Sea Transport
Design Efficiency ≥83%
Design Temperature 184,194,204℃
Control System PLC Intelligent Control System
Suitable fuel Coal, biomass particles, wood chips, wood strips, palm shells, etc


Tai Guo chain grate biomass steam boiler is a horizontal boiler, evaporation capacity of 1 to 20 tons per hour. Products through CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certification, the use of high-quality materials manufacturing. The pressure range is 1.0, 1.25, 1.6Mpa, and the temperature range is 184,194,204℃. Suitable for light industry, chemical industry, building materials, aquaculture, rubber processing, clothing and leather, wine, food processing and other industries


Support and Services:

Our Chain Grate Biomass Steam Boiler is backed by our reliable technical support and service. We offer a comprehensive customer service package, including 24/7 customer support, an online customer portal, and detailed troubleshooting guides. Our team of experts is available to provide advice and assistance with installation, operation, maintenance, and repair. We also offer spare parts and replacement components for quick and easy repairs. Plus, our warranty program ensures that your Chain Grate Biomass Steam Boiler will remain in perfect condition for years to come.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
