Steam Boiler for Paper And Paper Products Industry 184/194/204 Temperature

Steam Boiler for Paper And Paper Products Industry 184/194/204 Temperature

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: wns

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Boiler Type: Steam Boiler Electrical Element: PLC
Fuel Type: Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas Structural Form: Horizontal
Country Of Origin: Zhoukou In Henan Province Mode Of Transport: Land, Air, Sea
Quality Guarantee: 1 Year Steam Yield: 0.5t/h-30t/h

Product Description

Product Description:

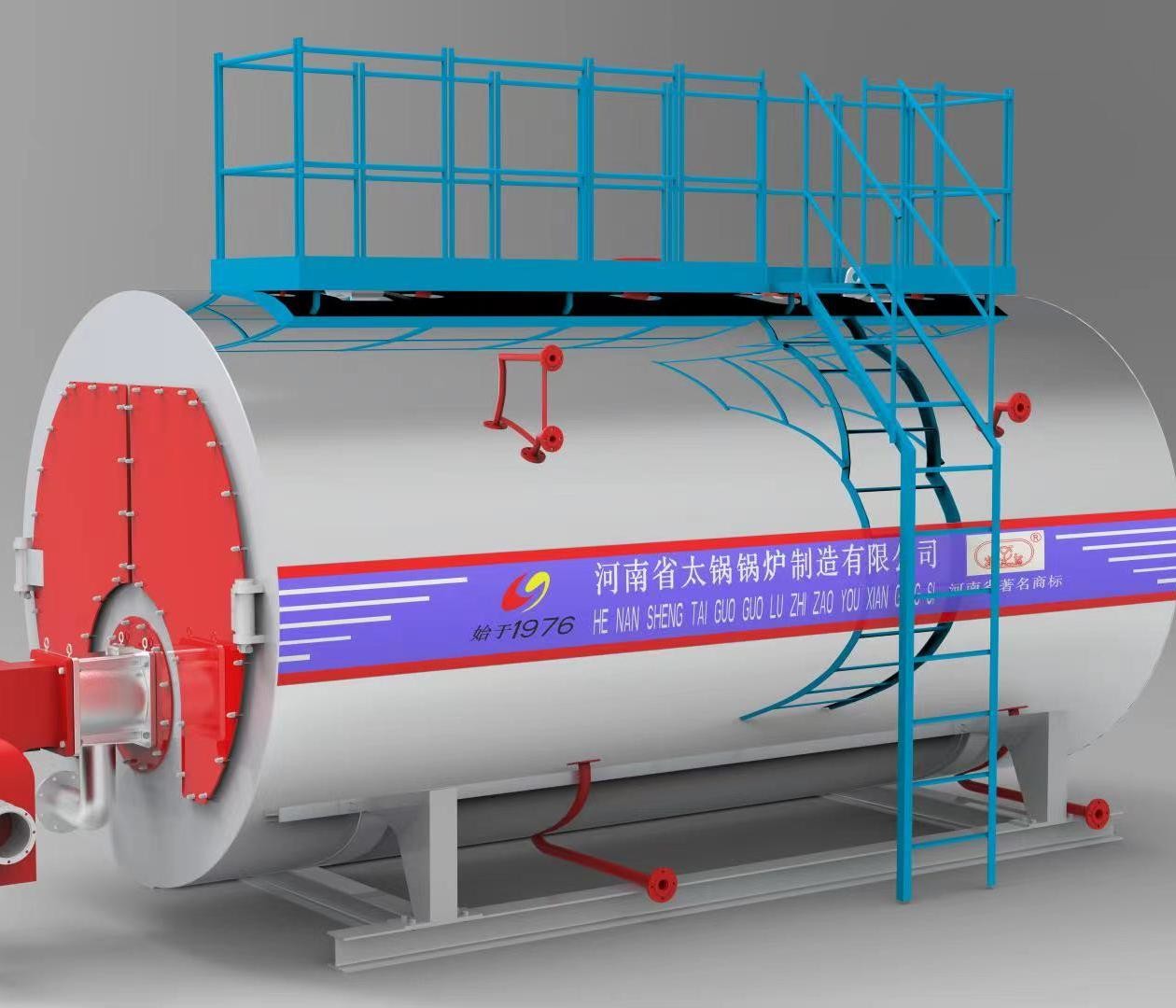

WNS series automatic horizontal internal combustion three-return oil (gas) steam boiler adopts wet-back structure, corrugated furnace is the first return, threaded smoke pipe constitutes the second return, light smoke pipe constitutes the third return. The boiler is equipped with a complete automatic control device and safety protection device, to achieve automatic water level control and low water level alarm, furnace shutdown; Steam pressure automatic control and overpressure alarm; Boiler automatic ignition, burner fire automatic regulation and flame out protection, to ensure the safe operation of the boiler. The boiler is equipped with movable front and rear smokebox covers to facilitate boiler maintenance. The WNS type gas boiler is a boiler product developed by the technical cooperation of advanced countries in Western Europe and one of the implementation sub-projects of the high-efficiency and environment-friendly boiler project.



  • 1. The boiler adopts the combustion chamber large volume design, so that the combustion is more full, (optional) the use of ultra-low nitrogen burner, FGR gas recirculation technology, so that the nitrogen oxide can be reduced to less than 30 mg; The smoke pipe adopts the threaded structure, which enhances the heat transfer effect.
    2. The front and rear smoke boxes are integrated smoke boxes, and there is a team of open smoke box doors on the smoke boxes. The form is good in integrity, beautiful, generous, and light for maintenance and opening.
    3. Long service life Using corrosion-resistant steel, effectively solve the problem of low temperature corrosion, equipment service life of more than 20 years, simple maintenance and low cost.

Technical Parameters:

Property Value
Mode of transport Land, Air, Sea
Evaporation capacity 0.5t/h-30t/h
Country of origin Zhoukou In Henan Province
Boiler Type Steam Boiler
dimension LCD Display English And Chinese Menu Can Touch Screen
Quality guarantee 1 Year
Fuel Type Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas
Steam temperature 184,194,204
Working pressure 1.0,1.25,1.6Mpa
Electrical element PLC
Gas and Oil Boiler Gas Oil Combination Boiler, Oil-Burning Heating Boiler


Taiguo oil and gas boiler is an industrial gas boiler produced in Zhoukou, Henan Province. Passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certification. The oil-gas boiler is widely used in medicine, chemical industry, light industry, textile, culture, food and beverage, foam plastics, paper and paper products, wood processing and other industries. It is a horizontal boiler in structure, which can burn natural gas, light oil, heavy oil and liquefied petroleum gas.


Support and Services:

Gas Oil Boiler Technical Support and Service

We provide our customers with professional technical support and service for Gas Oil Boiler.

  • Pre-sale Service – We provide customers with product selection guidance, technical training, site inspection and other services.
  • Installation Service – We provide professional installation guidance, commissioning, and product operation training.
  • Maintenance Service – We provide regular maintenance services to ensure the normal operation of Gas Oil Boiler. We will also provide repair services in the event of any issues.
  • After-sales Service – We provide customers with follow-up services, such as product upgrades and spare parts supply.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
