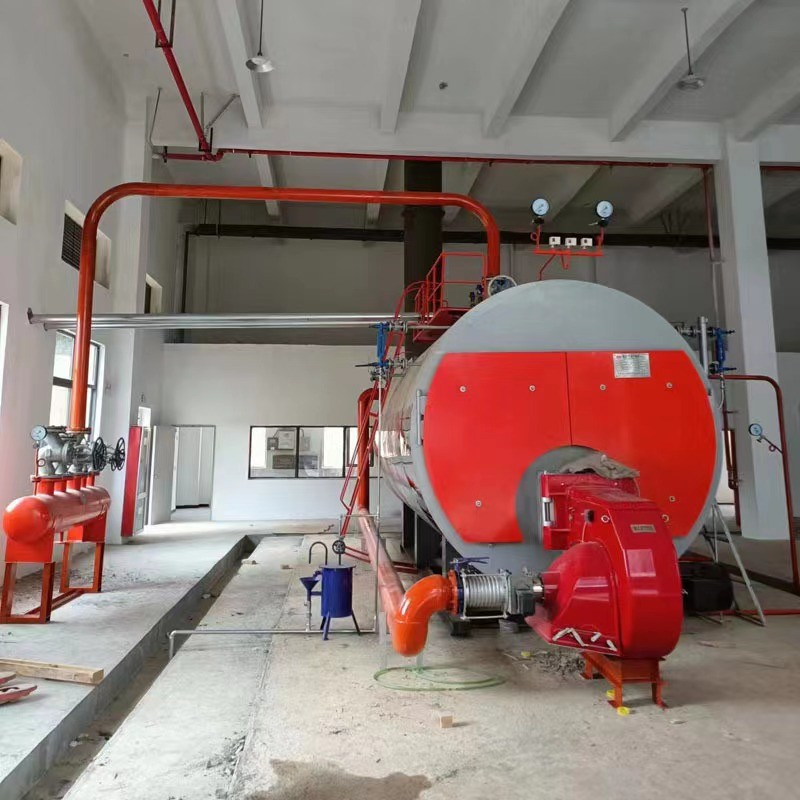

Gas Oil Boiler For Safe And Easy Operation With Advanced Steam Boiler Automatic Controller
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | WNS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $5000.00-10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 15-30working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Horizontal Steam Boiler | Fuel: | Natural Gas, Liquefied Petroleum Gas, Heavy Oil, Light Oil, Etc |
|---|---|---|---|
| Steam Yield: | 1t/h-20t/h | Mode Of Transport: | Sea And Land Transport |
| Highlight: | Advanced Steam Boiler Gas Oil Boiler,Easy Operation Gas Oil Boiler,Safe Gas Oil Boiler |
||
Product Description
Product introduction:
The gas steam boiler is mainly composed of two main bodies, the shell and the furnace, and the accessories to ensure its safe and economic continuous operation, the accessory equipment of the instrument, the automatic control and protection system. This boiler is a boiler with water cooling cylinder, and two return fireworks tubes are arranged in the left and right sections of the cylinder, and the front smoke box in the front of the cylinder returns. Between the drum and the lower connecting box, there is a drop pipe and a water cooling pipe, which constitute the frame of the combustion chamber. There is a steam separator in the upper part of the drum to reduce the water carried out by steam. The heating surface of the pot body is the lower part of the pot drum, the water cooling tube and the fireworks tube.
The gas boiler construction consists of the following 5 systems:
1. Air supply system
2. Ignition system
3. Monitoring system
4. Fuel system
5, electronic control system
Product advantage:
1, the burner of the gas steam boiler is supplied by the world famous manufacturer, automatically burning and stopping according to the controller instructions, the independent program controller has a number of safety protection, safe and stable performance, low maintenance rate.
2, advanced steam boiler automatic controller, all Chinese LCD screen, man-machine interface, users only need to easily set, the boiler can start and stop according to user requirements, load regulation, automatic water supply and other automatic operation. The boiler has complete function, complete protection, simple operation, safety and reliability, and self-diagnosis function. Once abnormal phenomenon occurs in boiler operation, the combustion will be automatically interrupted and the sound and light alarm will be issued.
3. The horizontal steam boiler is a shell type all-wet back three-way pyrotechnic tube structure, which is economical to use. The corrugated furnace and threaded smoke pipe structure can improve the heat absorption strength of the boiler and meet the need of heat expansion of the heat exchange surface.
4, the boiler furnace space is large, the stored steam is more, and the load capacity is strong. The reasonable design of the built-in steam separator can meet the requirements of users with higher quality steam. The furnace body is provided with manhole, head hole and hand hole, which is convenient for cleaning the interior of the furnace, so that the maintenance and maintenance are very convenient.
Technical parameter:
|
Model |
Rated Capacity (t/h) |
Rated Pressure (Mpa) |
Rated Temperature (C) |
Thermal Efficiency (%) |
Exhaust gas temperature(ºC) |
Maximum transport weight of boiler(t) |
Maximum transport size of boiler( mm) |
Fuel Consumption | |
|
Light oil (Kg/h) |
Natural gas (Nm³/h) |
||||||||
| WNS1 | 1 |
0.7/ 1.0/ 1.25 |
170/ 184/ 194 |
>98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 |
| WNS1.5 | 1.5 | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 | ||
| WNS2 | 2 |
1.0/ 1.25/ 1.6 |
184/ 194/204 |
>98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 |
| WNS3 | 3 | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 | ||
| WNS4 | 4 | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 | ||
|
WNS5 |
5 |
>98 |
≤60 |
14.2 |
5200×2300×2700 |
312.5 |
357 |
||
|
WNS6 |
6 |
>98 |
≤60 |
17.5 |
5660×2400×2800 |
375 |
428.4 |
||
|
WNS8 |
8 |
1.25/ 1.6/2.5 |
194/204/225 |
>98 |
≤60 |
21.3 |
5900×2500×3000 |
500 |
571.2 |
|
WNS10 |
10 |
>98 |
≤60 |
22 |
6600×2700×3200 |
625 |
714 |
||
| WNS12 | 12 | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 | ||
|
WNS15 |
15 |
>98 |
≤60 |
35.5 |
7500×3400×3600 |
937.5 |
1071 |
||
|
WNS20 |
20 |
>98 |
≤60 |
45 |
7800×3700×4200 |
1250 |
1428 |
||
|
Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |
|||||||||
Work flow chart:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
