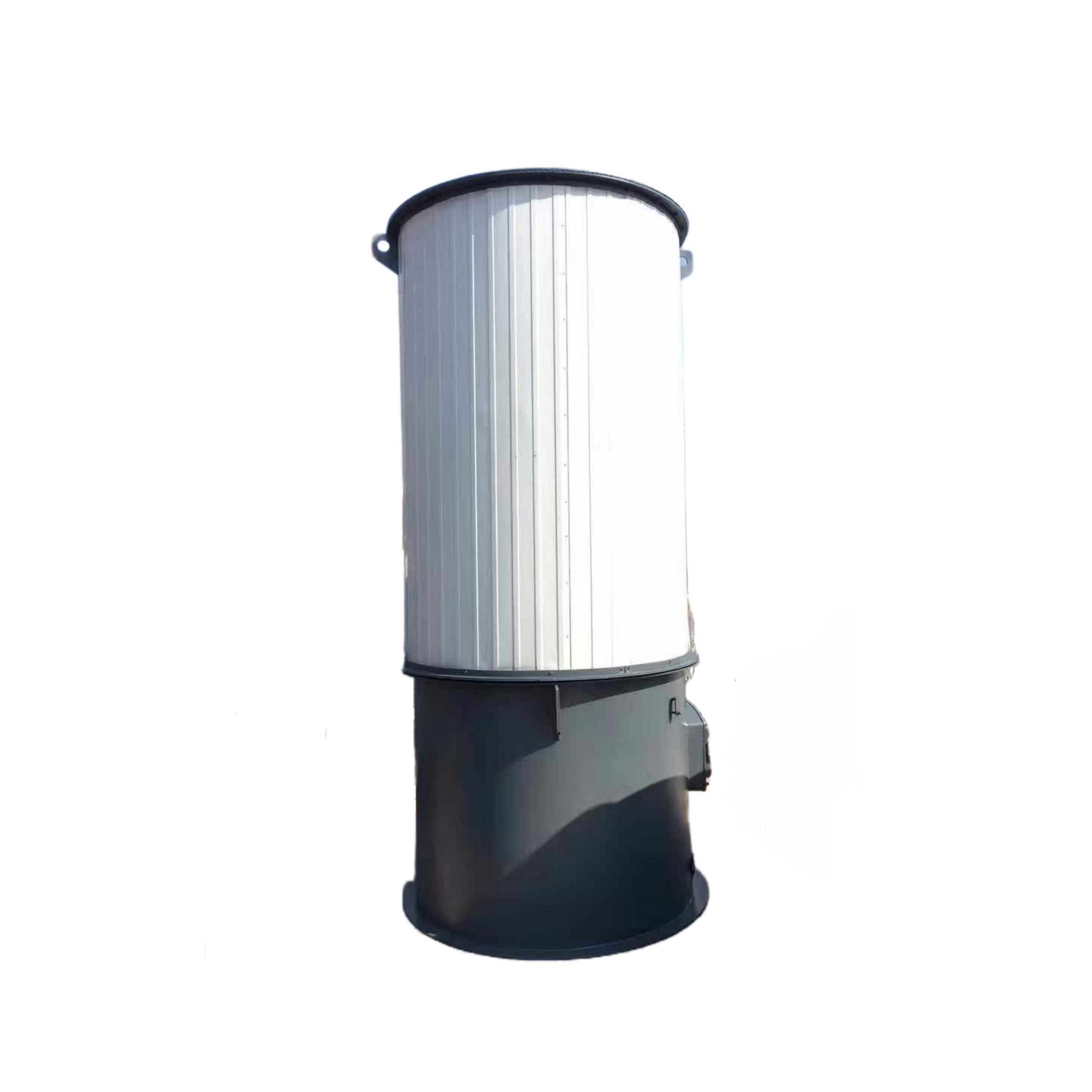

Energy-Saving Devices Vertical Thermal Oil Boiler Available In YGL Series
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | YGL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $3000.00-9000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Organic Heat Carrier Boiler | Boiler Type: | Thermal Oil Furnace |
|---|---|---|---|
| Structural Form: | Vertical Type | Medium Outlet T Emperature: | ≤350 |
| Fuel: | Biomass Pellets, Wood Chips, Coal, Etc. | ||
| Highlight: | YGL Series Vertical Thermal Oil Boiler,Energy Saving Vertical Thermal Oil Boiler |
||
Product Description
Product Introduction:
YGL series vertical biomass-fired thermal oil furnace can achieve higher operating temperature at lower operating pressure. It has the technical characteristics of low pressure and high temperature, and can achieve stable heating and temperature regulation to meet different requirements. The thermal efficiency of the vertical thermal oil furnace can be maintained at the best level under various load levels. Taiguo vertical thermal oil furnace has complete operation control and safety monitoring devices, which is easy to operate, safe and reliable.
Product Advantages:
1. Multi-circuit coil design
The multi-circuit coil design is adopted, which is safe, has sufficient heating surface and high thermal efficiency.
2. Advanced and scientific air distribution technology
It has complete operation control and safety monitoring devices, which can precisely control the working temperature and ensure the safe operation of the boiler.
3. A variety of energy-saving devices can be configured at the tail
The boiler exhaust gas can be used to generate steam/hot water/hot air and other heating media, which is energy-saving and efficient.
4. Multiple safety protection functions
Over-oil temperature alarm, over-smoke temperature alarm, low flow alarm, liquid level protection, flameout protection, system interlocking.
Technical Parameters:
| Name Model |
YGL- 120MA | YGL-240MA | YGL-350MA | YGL-500MA | YGL-700MA | YGL- 1000MA | YGL- 1200MA | YGL- 1400MA |
| Rated power(kw) |
120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 |
| Thermal Efficiency (%) |
75 |
|||||||
| Design Pressure (Mpa) |
1.1 |
|||||||
| Rated Working Pressure (Mpa) |
0.8 |
|||||||
| Highest Working Temperature (C) | <350 |
|||||||
| Furnace oil Volum(m3/h) |
0.1 |
0.15 |
0.3 |
0.38 |
0.52 |
0.7 |
0.85 |
1.02 |
| Circulation oin volume (m3/h) |
10 |
20 |
30 |
40 |
60 |
80 |
100 |
100 |
| Pipe connection diameter (DN) |
40 |
65 |
80 |
80 |
100 |
125 |
125 |
125 |
| Overall Size ( mm ) |
1220* 1140* 2550 |
1705* 1510* 3095 |
1873* 1683* 3358 |
2076* 1900* 3660 |
2276* 2100* 3840 |
2900* 2500* 4785 |
2900* 2500* 5133 |
3000* 2900* 5430 |
| Reference Weihght (t) |
2.2 |
2.7 |
3.4 |
3.9 |
4.8 |
7.4 |
8.0 |
10.2 |
