Plc Automatic Control System Electric Heating Steam Boiler Thermal Efficiency Of High Products
Product Details:
| Place of Origin: | HENAN,CHINA |
| Brand Name: | taiguo boiler |
| Certification: | CE,SGS,EAC |
| Model Number: | WDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 7999-19999USD |
| Packaging Details: | nude packing |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Heating Method: | Electric Heating | Rated Steam Capacity: | 0.5t/h |
|---|---|---|---|
| Thermal Efficiency: | 99 | Steam Temperatur: | 170/184/194C |
| Condition: | New | Fuel Type: | Electricity |
| Applicable Power Supply: | 380V 50Hz | Boiler Efficiency: | 98% |
| Control: | Automatic Control | Rated Pressure: | 0.7/1.0/1.25/1.6MPa |
| Key Selling Points: | Automatic | ||
| Highlight: | High Thermal Efficiency Electric Steam Boiler,plc electric steam boiler,Automatic Control System Electric Steam Boiler |
||
Product Description
Product Description:
Adopting the way of separating the furnace body and electric control cabinet, avoiding the service life of the electric components being affected by heat aging. Electric heat pipe selection of domestic and foreign high-quality products, normal service life of about 20,000 hours, thermal efficiency of nearly 99%, running quiet, clean, in line with the requirements of environmental protection, will not be discharged into the atmosphere NOx (nitrogen oxides). Operation using PLC control system, full free operation button, full free indicator, touch screen panel in English display, man-machine dialogue, operation authorization, real-time information, automatic page.All electrical components have CE and CCC certification mark to ensure product safety and service life.Each group of electric heating element adopts centralized bundle type flange connection, independent setting, with simple structure, high mechanical strength, safety, convenient replacement, long service life and so on.
Product Features:
-
With large steam space, good steam quality.
-
Full-automatic intelligent control technology, no need to be manned. Flexible working mode, can be set to manual or automatic.
-
According to the need to set the boiler automatic operation time period, a day can be set up a number of different working hours, so that the boiler automatically time-sharing start the heating group, heating group cycle for cutting, so that the contactor use time and frequency of the same, to improve the service life of the equipment.
-
The controller on the pressure of automatic control, calculation, tracking, can be in the load change on the feed pump, electric heating pipe automatic start-stop control, can also be manually controlled.
-
With a complete set of multiple protection functions, such as leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power protection.
-

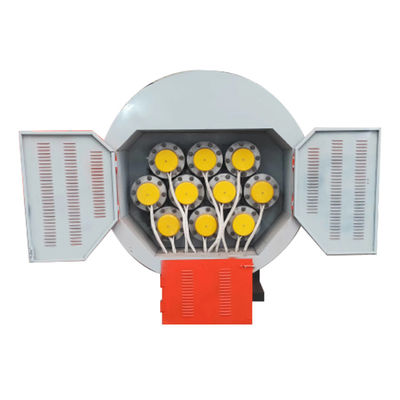

The boiler body is made of boiler steel plate, the longitudinal and circumferential welds are automatically welded, and X-ray flaw detection, small boiler body, electromechanical integration, easy to install and mating. Large boiler furnace body and electronic control split design, to eliminate the electrical control part of the furnace body by the high temperature, to ensure the stable operation of electronic control devices.
Technical Paramet
Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
1.Electric control cabinet adopts PLC touch screen, display in English.
2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.
3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

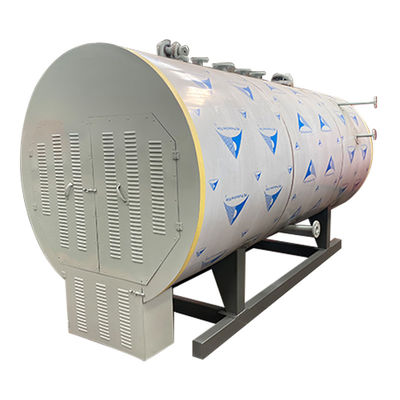

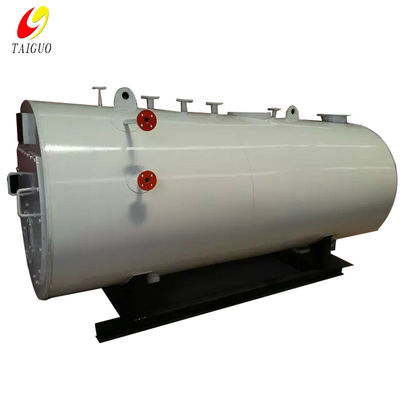

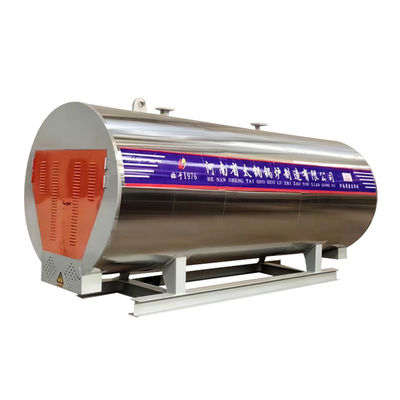

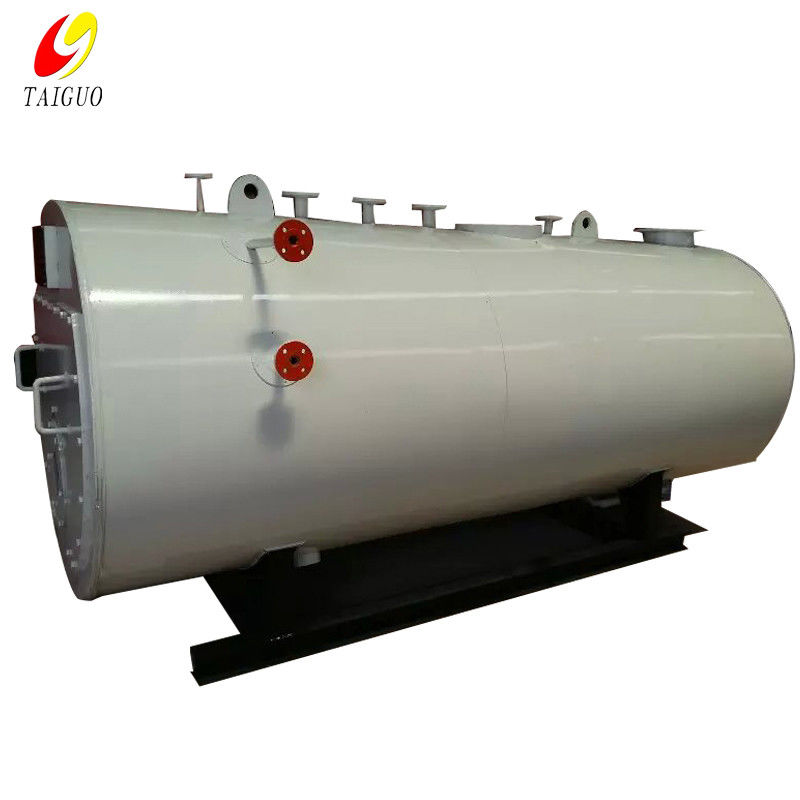

Product Images:
