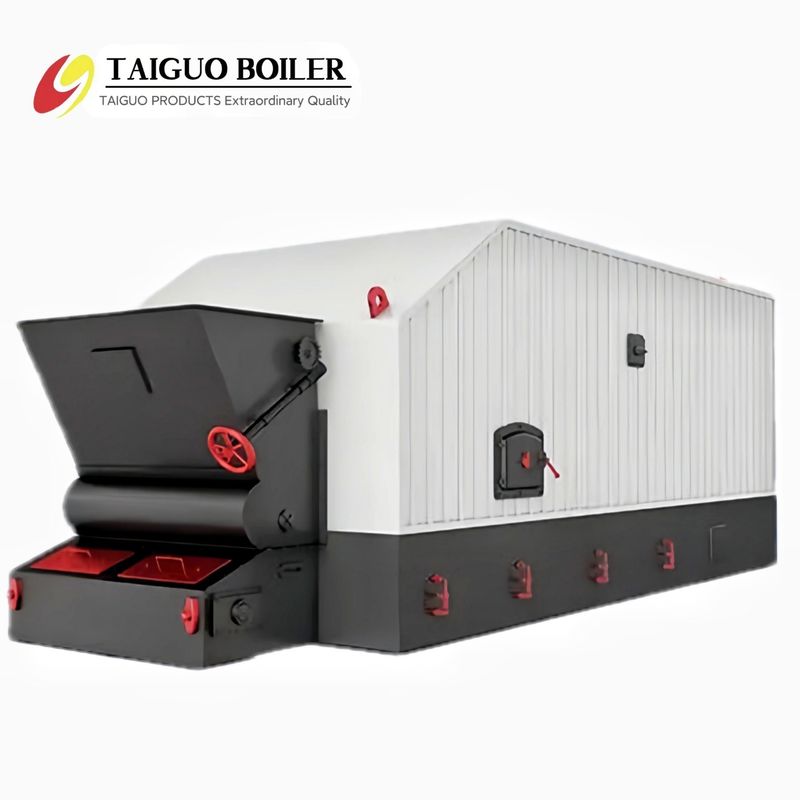

Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace

Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: YLW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $5000.00-10000.00
Packaging Details: Bulk, packaged
Delivery Time: 15-30working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Organic Heat Carrier Furnace Structural Form: Horizontal
Mode Of Transport: Sea And Land Transport Customizable Goods: Yes
High Light:

Industrial hot oil furnace

,

Horizontal chain grate hot oil furnace

,

Organic heat carrier hot oil furnace

Product Description

Product introduction:

Organic heat carrier furnace is a new type of special boiler, also known as heat conduction oil furnace, with low pressure, high temperature working characteristics, even under normal pressure, its heating temperature can reach 320℃ liquid phase or 400℃ vapor phase. Everything needs to be heated evenly and steadily. And do not allow direct flame heating process heating temperature between 150℃~380℃ in various production occasions can use organic heat carrier heating. It is based on coal, biomass, palm shell and other heat energy transmission to the thermal equipment, and then return to the heating furnace to reheat, not only has low pressure, high temperature, but also can high precision control of the working temperature, and no water treatment equipment, the system heat utilization rate is high, easy to operate and maintain, is a safe, efficient, energy-saving heating equipment.

Product advantage:

(1) Obtain low pressure and high temperature heat medium, easy adjustment, uniform heating, can meet the precise process temperature.
(2) liquid phase circulation heating, no condensing heat loss, heating system thermal efficiency is high.
(3) Water treatment equipment and systems can be simplified or omitted.
(4) The organic heat carrier furnace in the area requires a small protection distance and less explosion risk.
(5) Should consider the organic heat carrier heating and heat release and temperature rise and fall on the volume change, in the system should be compensated technical measures.
(6) Strictly control the content of air, water and other low volatiles in the organic heat carrier.

Technical parameter

Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace 0Name

Model

YLW-

3000MA

YLW-

3500MA

YLW-

4200MA

YLW-

4700MA

YLW-

6000MA

YLW-

7000MA

YLW-

10000MA

YLW-

12000MA

Rated

power(kw)



3000



3500



4200



4700



6000



7000



10000



12000

Rated

Working

Pressure

(Mpa)




0.8

Highest Working Temperature (C)



<350

FuelCoal, Biomass pellet, jute, Palm kernel shell

Furnace oil

Volume(m3/h)



2.4



2.6



2.8



3.0



4.8



7



9.5



12.8

Circulation

oin volume

(m3/h)




160




200




250




250




350




460




540




600

Inlet and
Outlet pipe
Diameter(DN)



150



200



200



200



250



250



300



350

Overall Size ( mm )

6000*

2650*

3240

6400*

2770*

3470

6900*

2820*

3470

7680*

2985*

3715

7900*

3200*

3475

8400*

3300*

3475

9200*

3300*

3550

12600*

3820*

3630

Reference

Weihght (t)



30



35



40



44



48



50



70



142


Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace 1
