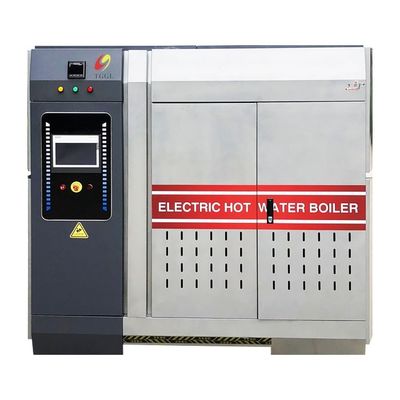

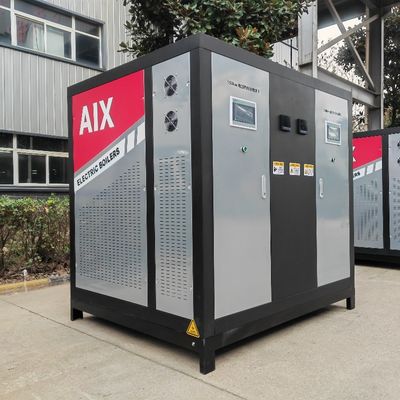

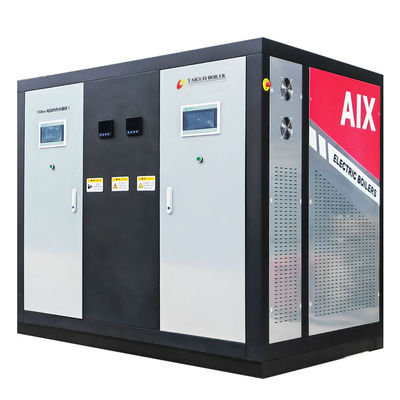

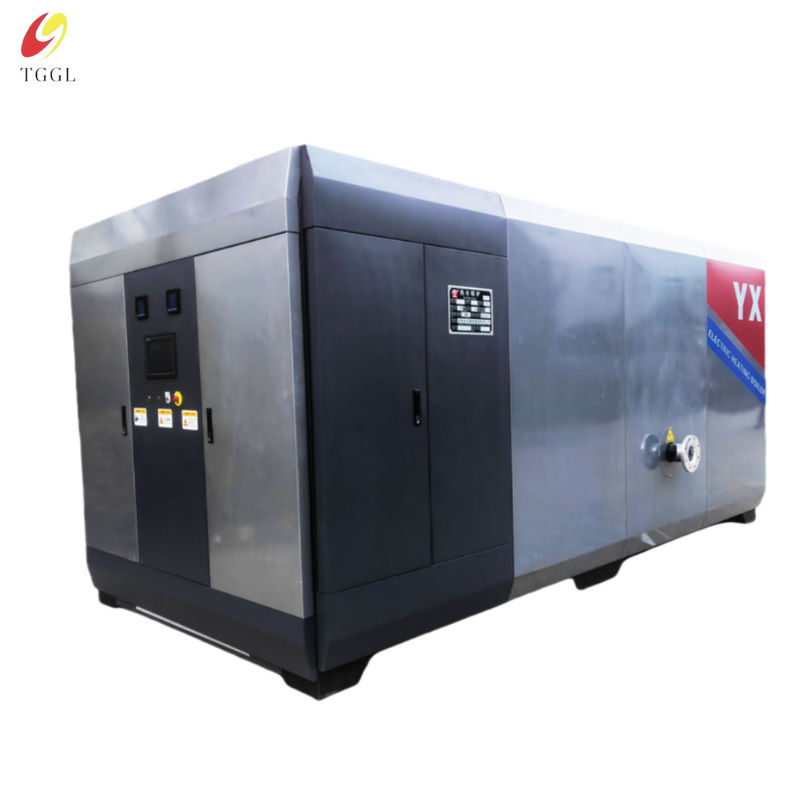

360-2880KW electric heating resistance boiler with high power is stable, safe and reliable

360-2880KW electric heating resistance boiler with high power is stable, safe and reliable

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: ZDRS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $5000.00-10000.00
Packaging Details: Bulk, packaged
Delivery Time: 10-30working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Electric Heating Resistance Hot Water Boiler Rated Power: 360-2880KW
Rated Current: 540-4320A Voltage Frequency: 380/50V/HZ

Product Description

Product introduction:

The electric heating hot water boiler consists of a large scale circuit pipeline integrated system. During the operation of the equipment, the dual heating system works independently and controls without interference. The hot water boiler has the advantages of compact structure, novel appearance design and stable operation. The control part has upgraded the remote cloud fault detection, added the 485 communication protocol, and improved the remote control function of the mobile phone. The hot water module boiler has the functions of leakage protection, anti-dry burning extremely low water level protection, furnace body overheating protection, temperature sensor abnormal protection, power supply voltage abnormal protection, heating component phase break protection. The user can set the water temperature between 30 ° C and 90 ° C at any time, and the boiler will automatically supply heat to the heating cycle system or provide users with bathing and domestic water according to the user's requirements.

Product advantage:

1. The control system controls the start and stop of the circulating pump according to the temperature of the furnace water. When the hot water boiler is used for heating, the hot water circulating pump starts when the furnace water reaches the set upper water temperature, and stops when the water temperature is lower than the set lower water temperature. When the hot water boiler is used for bathing, the hot water circulation pump stops when the furnace water reaches the set upper water temperature, and the hot water circulation pump starts when the water temperature is lower than the set lower water temperature.

2. After anti-corrosion treatment, the furnace body is not easy to rust corrosion, the boiler has a long service life, and the hot water quality is clean and sanitary. Adopts advanced centrifugal glass fiber silk wool multi-layer insulation, less heat loss, energy saving and consumption reduction; Famous white color plate exquisite packaging, beautiful appearance generous corrosion resistance.

3. The boiler has leakage protection function (the control system detects leakage of the power supply, automatically cut off the boiler power supply), anti-dry burning very low water level protection function (when the water level is lower than the set minimum limit water level, immediately shut down and alarm), furnace overheating protection function (when the boiler shell temperature exceeds 105℃, immediately shut down and alarm, Automatically start the boiler after the temperature is normal), abnormal protection function of the temperature sensor (the control system continues to detect the sensor condition, immediately stop and alarm), abnormal power supply voltage protection function (when the power supply is abnormal, automatic power off. After normal, automatically resume work), heating component out of phase protection function (after monitoring the heating component out of phase, stop protection).

Technical parameter:

Type specification ZDRS-360 ZDRS-480 ZDRS-720 ZDRS-1080 ZDRS-1440 ZDRS-1800 ZDRS-2160 DZRS-2880
Rated power(KW) 360 480 720 1080 1440 1800 2160 2880
Rated current(A) 540 720 1080 1620 2100 2700 3250 4320
Voltage frequency(V/Hz) 380/50
Electrothermal efficiency(%) ≥98
Insulation heat loss(%) 2
Heating area(㎡) 1800-3700 2500-4800 3700-7400 5500-12000 7500-15000 6000-18000 11000-22000 15000-30000
Water temperature control(℃) 90/70
Inlet and outlet aperture(DN) 15/25 15/25 15/25 20/40 20/40 25/40 25/40 25/40
Water refill blowdown aperture(DN) Automatic + remote
Product weight(Kg) 125 200 270 270 270 285 300 320
Apparent dimension(m) 1.5*1.0*1.5 1.7*1.0*1.5 2.0*1.5*1.7 2.2*1.7*1.7 2.6*1.7*1.8 3.0*1.8*1.8 3.8*2.1*2.0 4.5*2.2*2.2
