Biomass Hot Oil Boiler Fixed Grate Combustion Complete Thermal Efficiency

Biomass Hot Oil Boiler Fixed Grate Combustion Complete Thermal Efficiency

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: YGL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Hot Oil Boiler Rated Thermal Power: 120-1400KW
Rated Working Pressure: 0.8Mpa Operating Temperature: ≤300℃
High Light:

Biomass Hot Oil Boiler

,

1400KW Hot Oil Boiler

Product Description

Biomass Hot Oil Boiler Fixed Grate Combustion Complete Thermal Efficiency

Product introduction:

YGL type biomass heat transfer oil furnace, which is a kind of forced circulation vertical biomass boiler, which is based on biomass particles as fuel and heat transfer oil as medium, and uses circulation oil pump to force heat transfer oil for wave phase circulation, transfers heat energy to the thermal equipment and then returns to the heating furnace for reheating. It adopts three-return coil design, the heating surface is fully expanded and fully absorbed, and the low pressure and high temperature heating is realized. It can also increase the energy saver, make the boiler more energy efficient, can be more efficient, energy saving service in all walks of life.
YGL type biomass thermal oil furnace has low pressure, high temperature working characteristics, better is the heating temperature up to 340℃ liquid phase, therefore, all the need for uniform heating and do not allow direct flame heating, heating temperature in 150-380℃ can be used in various production occasions. What is better is that the boiler has the advantages of high heat utilization rate, good heat transfer performance, safe and reliable operation, perfect protection function, easy operation and maintenance, and has incomparable advantages of other equipment.

Product characteristics:

With biomass particles as fuel, turning waste into treasure, energy saving and emission reduction, in line with the current policy requirements, YGL type biomass heat conduction oil furnace is closed cycle heating, connected with the atmosphere, long service life in the combustion chamber, the fuel is adiabatic combustion, fire easier, combustion more fully, improve the thermal efficiency of the boiler operation process only withstand pump pressure, And the heat conduction oil is not explosive dangerous liquid phase circulation heating, no condensation discharge heat loss, heating system of high thermal efficiency boiler top arranged close row coil, to avoid the phenomenon of burning the top boiler adjustment is convenient, uniform heating, can meet the precise process temperature in order to cope with the working medium temperature rise and fall on the volume change, we added supplementary technical measures in the system installation, As long as the upper body and the lower combustion chamber can be closed, it is very simple and convenient, shorten the installation period, the heating surface is composed of internal and external tightly arranged disk tubes, reduce the heat load on the surface of the tube, and make the use of thermal oil safer

Technical parameter:

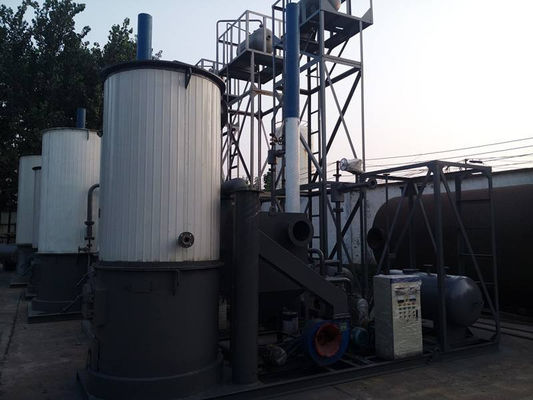

Biomass Hot Oil Boiler Fixed Grate Combustion Complete Thermal Efficiency 0Name

Model

YGL- 120MAYGL-240MAYGL-350MAYGL-500MAYGL-700MAYGL- 1000MAYGL- 1200MAYGL- 1400MA

Rated

power(kw)

120240350500700100012001400

Thermal

Efficiency

(%)



75

Design

Pressure

(Mpa)



1.1

Rated

Working

Pressure

(Mpa)




0.8

Highest Working Temperature (C)



<300

Furnace oil

Volum(m3/h)



0.1



0.15



0.3



0.38



0.52



0.7



0.85



1.02

Circulation

oin volume

(m3/h)




10




20




30




40




60




80




100




100

Pipe

connection

diameter

(DN)



40



65



80



80



100



125



125



125

Overall Size ( mm )

1220*

1140*

2550

1705*

1510*

3095

1873*

1683*

3358

2076*

1900*

3660

2276*

2100*

3840

2900*

2500*

4785

2900*

2500*

5133

3000*

2900*

5430

Reference

Weihght (t)



2.2



2.7



3.4



3.9



4.8



7.4



8.0



10.2

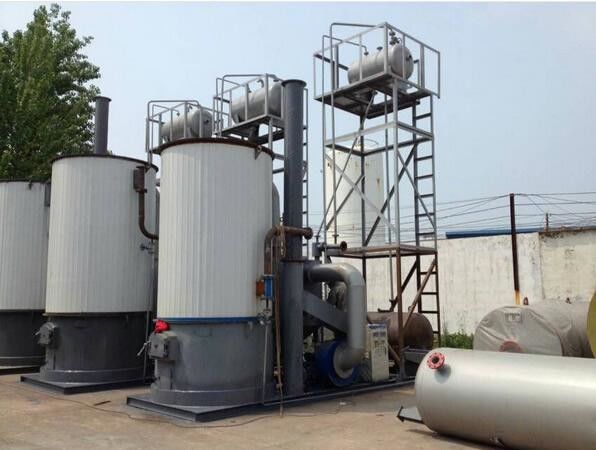

Biomass Hot Oil Boiler Fixed Grate Combustion Complete Thermal Efficiency 1
