SZS Series Economical 20t/H Gas Fired Oil Fired Boiler Water Tube Steam Boiler

SZS Series Economical 20t/H Gas Fired Oil Fired Boiler Water Tube Steam Boiler

Product Details:

Place of Origin: Zhoukou in Henan Province
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: SZS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD6000-69800 Set
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Brand Name: Taiguo Capacity: 10ton/hr To 60Ton/hr
Warranty: 2 Years Type: Szs Industrial Steam Boiler
Structural Form: Type D Double Drum Horizontal Efficiency: 98%
Steam Production: Max. 60t/h Condition: New
Pressure: ≤2.5 MPa Fuel: Liquefied Gas/natural Gas/diesel/light Oil
Output: Steam Dimension(L*W*H): Depending On Production Capacity
Application Field: Food And Beverage,Garment,Chemical,Textile, Oil Mill Etc Color: Customer's Requirement
Operation: PLC Automatic Control
High Light:

Steam Gas Oil Fired Boiler


20t/H Gas Oil Fired Boiler

Product Description

Product Description:

SZS series natural gas water tube steam boiler is arranged asdrum longitudinal type “D” shape, the right side is furnace, theleft side is convection bundle, has the characteristics of highsteam quality, sufficient output, and high thermal efficiency(97%), etc.


The structure of the SZS series boiler is a D-shaped arrangement with upper and lower dual steam drums. The convective heating surface is composed of dense film wall water pipes between the steam drums. It has the characteristics of high thermal efficiency, large heat absorption area, strong overload capacity, and safe and stable operation.
Important reminder: We can customize a boiler for you based on the fuel, steam capacity, and steam pressure you need.



1. Using high thermal resistance materials as insulation layers, it has good insulation performance.
2. The tail is equipped with an energy-saving device and a condenser, which can effectively control the exhaust temperature and improve the thermal efficiency of the boiler.
3. The entire boiler base is on a sturdy steel base, making it easy to install and transport.
4. The boiler has abundant heating surfaces and sufficient water space to ensure the stability of boiler parameters.

Technical Parameters:

Parameter Value
Pressure 2.5Mpa
Type Industrial Steam Boiler
Warranty 1 Year
Applicable industry Medicine, Chemical Industry, Light Industry, Textile, Building Materials, Culture, Food And Beverage Processing, Plastic Foam, Paper Making, Wood Processing, Clothing And Leather
Capacity 10ton/hr To 60 Ton/hr
Burner Oil, Gas, Dual Fuel
Fuel Oil, Gas
Temperature 194℃, 204℃, 226℃
Control System PLC
Structural form Type D Double Drum Horizontal


Taiguo SZS water tube steam boiler is a horizontal steam boiler produced in Zhoukou City, Henan Province, China. Food and Beverage,Garment,Chemical,Textile, Oil Mill etc.With its reliable performance and advanced technology, SZS water tube steam boilers are the perfect solution for industries that require reliable and durable steam boilers.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

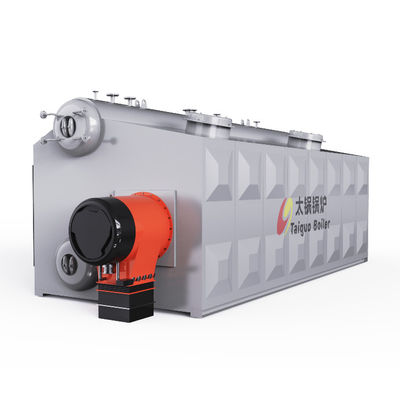

SZS Series Economical 20t/H Gas Fired Oil Fired Boiler Water Tube Steam Boiler 0

SZS Series Economical 20t/H Gas Fired Oil Fired Boiler Water Tube Steam Boiler 1
