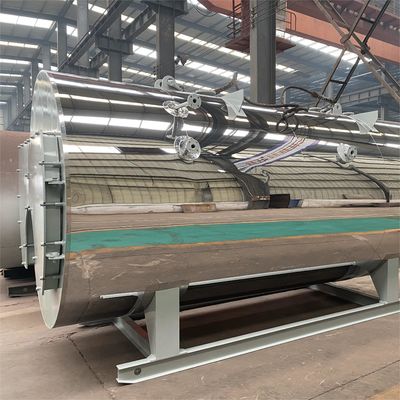

The atmospheric pressure horizontal hot water boiler has the high efficiency of all wet back three return

The atmospheric pressure horizontal hot water boiler has the high efficiency of all wet back three return

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: CWNS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Atmospheric Hot Water Boiler Working Pressure: 0Mpa
Rated Effluent Temperature: 85℃ Rated Return Water Temperature: 60℃
High Light:

High Efficiency atmospheric hot water boiler

,

High Efficiency Horizontal Hot Water Boiler

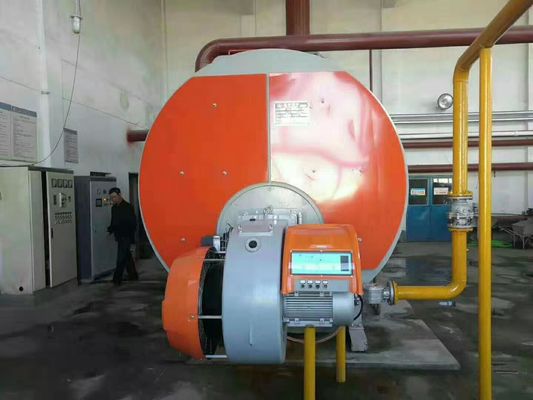

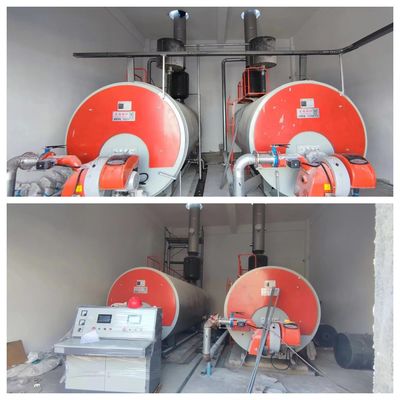

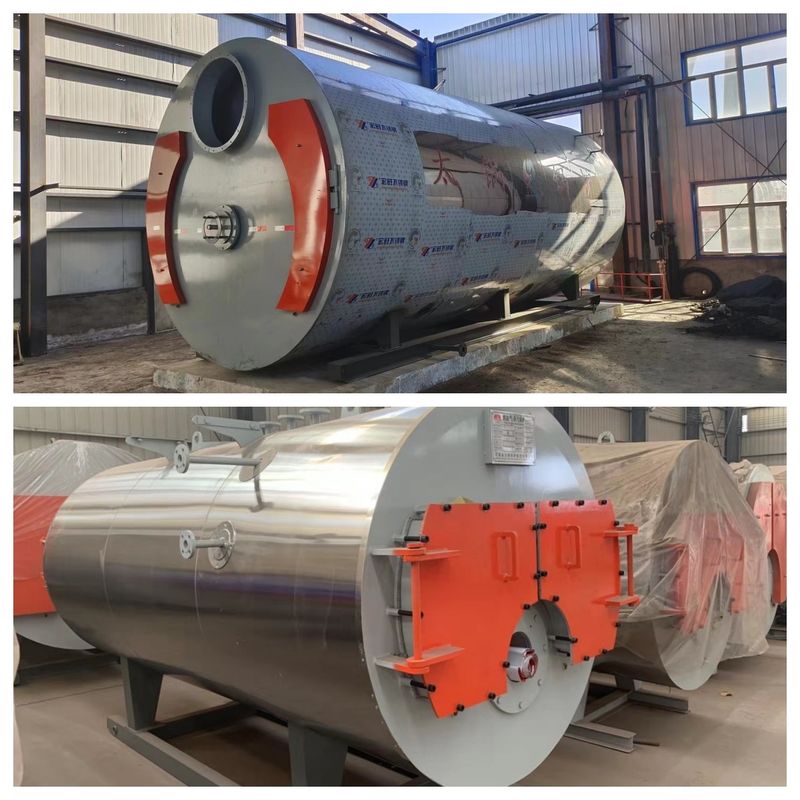

Product Description

Product introduction:

CWNS series automatic oil (gas) horizontal hot water boiler (utility model patent), the use of horizontal three-return wet back structure, improve the boiler operating environment, improve boiler efficiency and service life; All flue gas channels are placed in water, the tail is equipped with waste heat water tank and perfect insulation outsourcing design, and the smoke box seal adopts labyrinth structure to avoid the smoke box leakage phenomenon. The thermal efficiency of the boiler is as high as 90~97%, and the combination of corrugated furnace and conical furnace with good expansion performance is adopted. The furnace furnace size is consistent with the flame, and the flue gas flow area is reduced to make the flue gas flow at the same speed, ensuring the heat exchange time of high temperature flue gas in the furnace, and achieving the best heat transfer effect

Product advantage:

1, boiler products
Horizontal internal combustion three return full wet back design, 100% corrugated furnace, with good thermal scalability, water cooled recombustion chamber, recombustion chamber and the rear tubesheet edge butt, the lowest stress, more reliable quality.
2, large diameter corrugated furnace gall
The combustion chamber of the boiler is composed of a large diameter full corrugated furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat
Boiler heating area is more than 25 square mete rs/ton design configuration, fully absorb effective heat, low smoke exhaust temperature, small heat loss, to ensure sufficient output, high efficiency.

Technical parameter:



Item



WNS0.7



WNS1.4



WNS2.1



WNS2.8



WNS3.5



WNS4.2



WNS5.6



WNS7



WNS10.5



WNS14

Rated power

(MW)



0.7



1.4



2.1



2.8



3.5



4.2



5.6



7



10.5



14

Rated working pressure(Mpa)



Atmospheric pressure/0.7/1.0

Rated effluent

temperature(℃)



85/95/117

Rated return water temperature(℃)



60/70/70

Thermal efficiency(%)



98

Thermal efficiency

(㎡)



35



53



77



107



127



198



212



272



358



448

Energy saver heating area (㎡)



11



12



15



22



30



35



45



60



70



80

Suitable fuelNatural gas/LPG/LNG/City gas/Biogas/ Diesel /Heavy Oil

Fuel consum

ption

Diesel(Kg/h)61121182241.5302362485612905.61207.5
Natural gas(Nm³/h)70140.5210.6283351.5422.4563705.510551408



Weight(t)



7.1



8.2



9.9



12.7



14.2



17.5



21.3



22



35.5



45

Maximum transport size of boiler( mm)3400× 1700×2100


4300×1900×2300


3900×2100×2500


4700×2200×2600


5200×2300×2700


5660×2400×2800


5900×2500×3000


6600×2700×3200


7500×3400×3600


7800×3700×4200



The atmospheric pressure horizontal hot water boiler has the high efficiency of all wet back three return 0The atmospheric pressure horizontal hot water boiler has the high efficiency of all wet back three return 1
