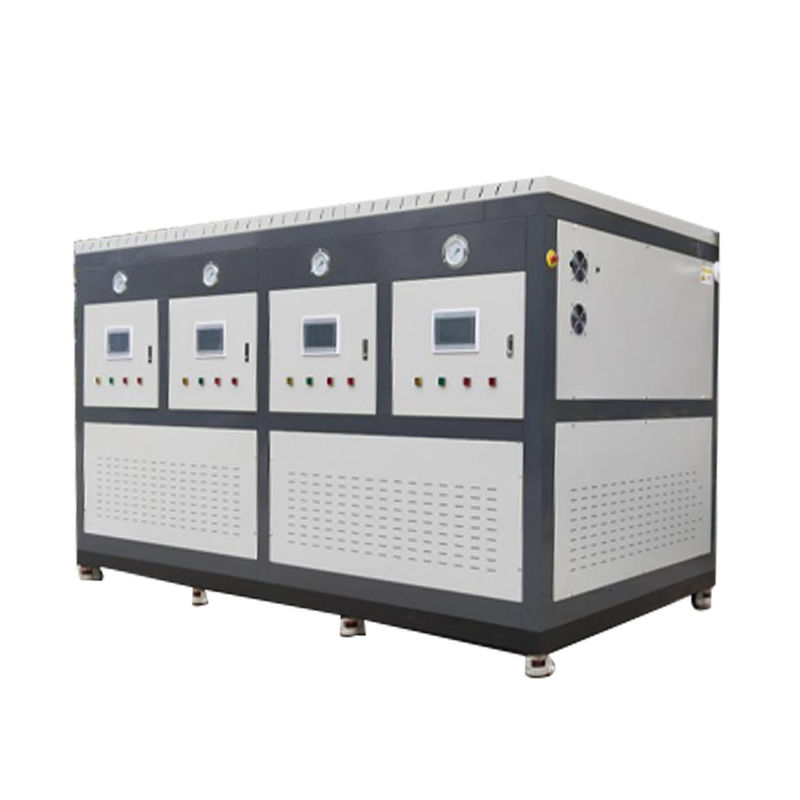

10t/h Electric Heating Steam Generator Industrial Boiler Sufficient Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | DZZQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $9000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | DZZQ Series Electric Heating Steam Generator | Steam Yield: | 0.5t/h-10t/h |
|---|---|---|---|
| Working Pressure: | 0.1-1.0Mpa | Auxiliary Control Function: | Automatic Control + Remote Control |
| High Light: | 10t/h Electric Heating Steam Generator,Industrial Electric Heating Steam Generator |
||
Product Description
DZZQ Series Electric Heating Steam Generator Industrial Boiler Efficiency Is Higher Than Sufficient Power
Product introduction:
DZZQ electric heating steam series steam boilers by safety pressure controller, automatic level controller, stainless steel drain valve, touch screen program controller, emergency stop button and other equipment to ensure the normal operation and use of electric boilers, widely used in clothing washing and ironing industry, food processing and sterilization industry, paper industry and other industries. Small footprint stable operation full automation save labor. I believe it must be the most suitable choice for you.
Advantages and characteristics:
1. Energy saving: high thermal conversion efficiency in technology using electromagnetic induction heating, energy saving, fast heating speed, high thermal efficiency. Compared with other fuel, gas, electric heating equipment can save more than 30%.
2. Green environmental protection: no noise after the electric heating equipment is started. When used, it does not release any harmful gases, no fire, smokeless, tasteless, no traditional heating equipment many pollution problems, and will not produce open flames in the heating process, which truly protects the environment and saves energy.
3. Long service life: the core part of the heating adopts electromagnetic induction heating, the water is magnetized after heating, does not form scale, and the whole system is free from maintenance. Constant power, through the frequency conversion peptide width adjustment, the current will be automatically down when the voltage is high, and the current will be automatically up when the voltage is low, to ensure the constant electric power, to ensure the service life of the heater and the heating effect of the user.
4. Small size: beautiful appearance, electromagnetic heating system can be arranged according to customer needs, saving space, and easy installation.
5. Intelligent control: touch screen microcomputer control, and equipped with electronic digital signal power sensor (can be freely adjusted), accurate and sensitive temperature control, so that the use of temperature balance. Constant temperature setting and various alarm functions, easy to operate and easy to learn.
Technical parameter:
| Model speci fications | DZZQ-36 | DZZQ-72 | DZZQ-144 | DZZQ-216 | DZZQ-360 | DZZQ-504 | DZZQ-720 | DZZQ-1080 | DZZQ-1400 |
| Rated power (kW) | 36 | 72 | 144 | 216 | 360 | 504 | 720 | 1080 | 1400 |
| Rated current (A) | 54 | 108 | 216 | 324 | 540 | 756 | 1080 | 1620 | 2160 |
| Voltage frequency (V/HZ) |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
380/50 |
| Electric heating efficiency (%) |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
≥95 |
| Number of heating tube groups (group)) |
2 |
2 |
4 |
6 |
10 |
14 |
20 |
30 |
40 |
| Working pressure (Mpa) |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
0.1-1.0 |
| Evaporation (kg/h) |
50 |
100 |
200 |
300 |
500 |
700 |
1000 |
1500 |
2000 |
|
Air outlet/ sewage outlet (DN) |
25/40 |
25/40 |
25/40 |
25/40 |
40/40 |
50/50 |
50/50 |
65/50 |
65/50 |
| Auxiliary control function | Automatic control + remote control | ||||||||
| Product weight (kg) |
85 |
150 |
318 |
450 |
750 |
1000 |
1300 |
2100 |
2600 |
| Appearance size (m) | 0.8*1.0*1.6 | 0.8*1.0*1.7 | 1.4*1.4*1.7 | 2.0*1.6*1.7 | 1.4*1.4*1.7 | 1.6*1.6*1.7 | 2.6*1.6*1.7 | 3.7*1.6*1.8 |
4.5*1.6*1.8 |
