Horizontal Thermic Oil Heater PLC Control System Fully Automatic Easy To Operate

Product Description

The Horizontal Thermic Oil Heater PLC Control System Is Fully Automatic And Easy To Operate

Product introduction:

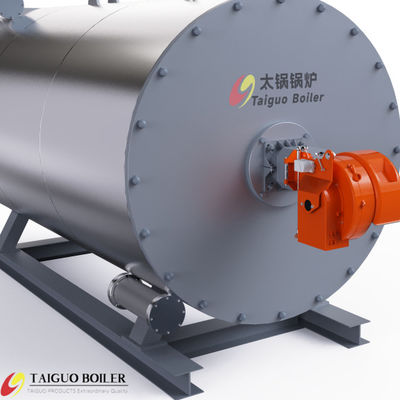

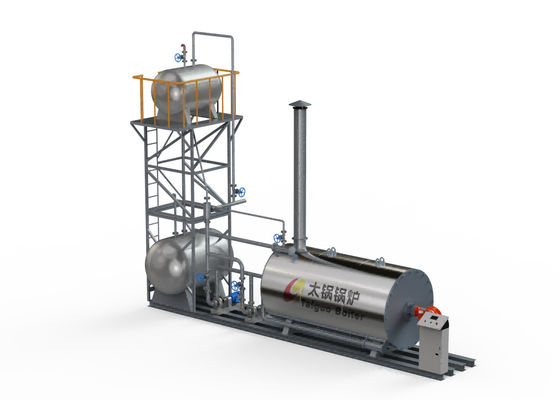

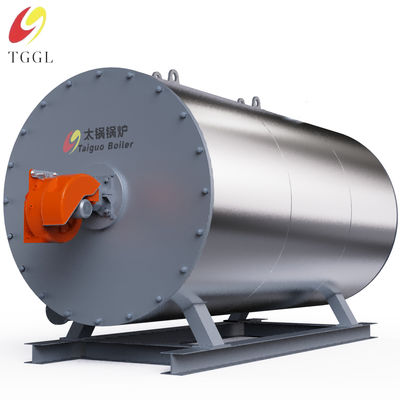

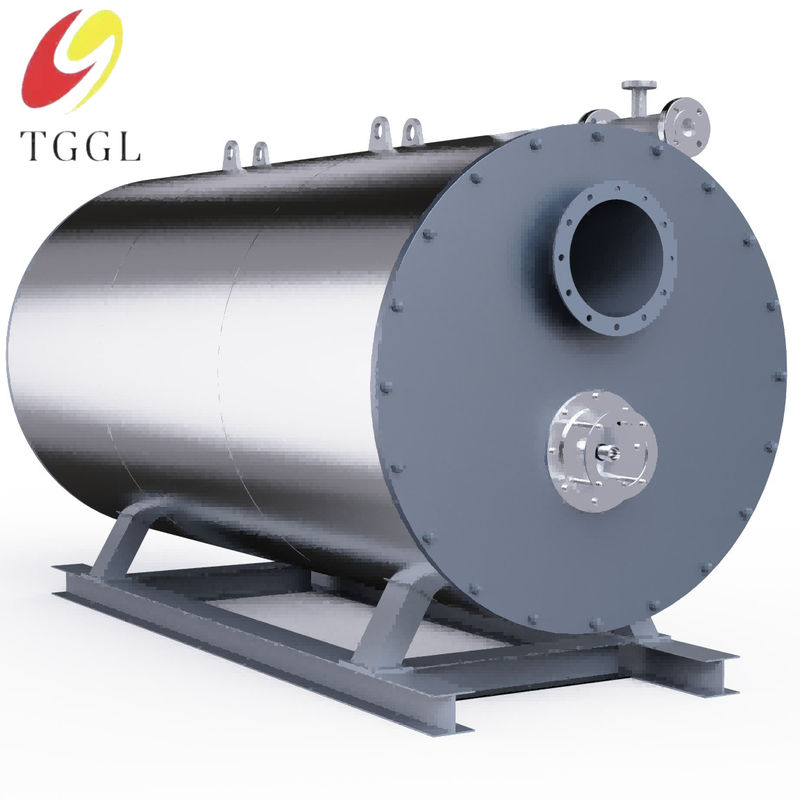

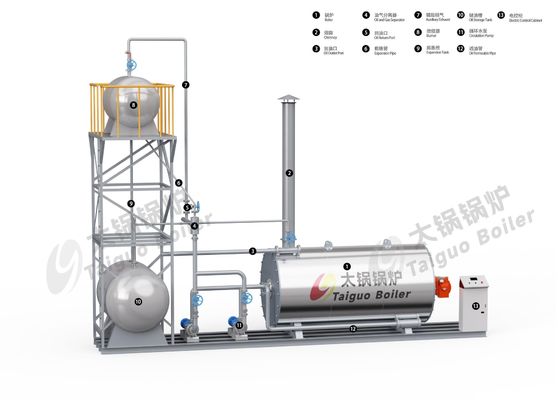

YYQW series heat transfer oil furnace The boiler host is a whole structure, the burner is assembled in the front of the boiler, the boiler body adopts the corrugated furnace furnace with good thermal expansion, the furnace layout has a reasonable structure, compact, low steel consumption, the thermal insulation layer uses a new lightweight heat insulation material, the outer packaging uses color stainless steel sheet, the shape packaging is cylindrical. The boiler circulation equipment is arranged on the boiler base on the right side of the boiler so that it is integrated with the main engine, and no other foundation is required.

Product advantage:

1. Large diameter combustion chamber
The combustion chamber of the boiler is composed of a large diameter coil, the fuel combustion space is sufficient, and the combustion is complete and the thermal efficiency is high.
2. Optimal coil design
The spiral coil inside and outside the furnace body is made of multi-head and small-diameter steel pipe. The coil has good thermal expansion performance, low stress, safety and reliability.
3. Optimal process design
Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the operation is safe and stable.
4. Do enough work
The heating surface layout is reasonable, the area is large, the heat transfer effect is good, the efficiency is high, and the output is stable and sufficient.

Technical parameter:

model ltem			YY(Q)W 350	YY(Q)W 500	YY(Q)W 700	YY(Q)W 1400	YY(Q)W 2100	YY(Q)W 2800	YY(Q)W 3500	YY(Q)W 4200	YY(Q)W 7000	YY(Q)W 14000
Rated thermal p ower		KW	350	500	700	1400	2100	2800	3500	4200	7000	14000
Design pressure		Mpa	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1	1.1
Medium outlet t emperature		C	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350	≤350
Heating area		m	21.3	24	40	78.5	94.5	157	205.2	240	410	710
Fuel			light oil/heavy/LNG/CG
Fuel	Light oil	Kg/h	37	52	69	140	210	280	350	420	680	1360
	LNG	Nm3/h	44	63	83	170	260	332	425	498	810	1620
Thermal efficiency			96%	96%	96%	96%	96%	96%	96%	96%	96%	96%
Furnace oil cont ent		m3	0.25	0.3	0.5	1.1	1.7	2.29	3.8	4.3	7	15.5
Boiler dimension s		mm	2100× 1390× 2055	2200× 1390× 2055	3240× 1470× 2260	4145× 1900× 2786	5020× 2050× 3080	5526× 2326× 3230	6555× 2470× 3634	6753× 2838× 3704	8200× 3050× 3800	12000× 3780× 4350
Boiler transport weight		T	2.58	3	3.7	6.9	8.8	11.5	17.8	19.8	27.5	42
Oil inlet		DN	80	100	100	125	150	150	200	200	250	350
Oil outlet		DN	80	100	100	125	150	150	200	200	250	350
Expansion tank		m3	1.5	1.5	1.5	2.5	2.5	3	3	4.5	6	8
Storage tank		m3	2.5	2.5	2.5	5	5	8	8	10	15	25
ChimneyΦ		mm	280	280	280	350	400	400	500	500	700	1000

certificate:

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
