Automatic Adjustment Thermic Oil Heater Industrial Boilers Safe And Stable

Automatic Adjustment Thermic Oil Heater Industrial Boilers Safe And Stable

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: YYQW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Thermic Oil Heater Structural Form: Horizontal
Fuel: Oil And Gas Thermal Power: 300,000 Kcal. - Six Million Kcal
High Light:

Automatic Adjustment Thermic Oil Heater

,

Stable Thermic Oil Heater

Product Description

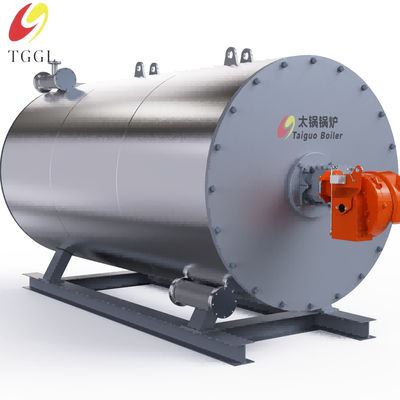

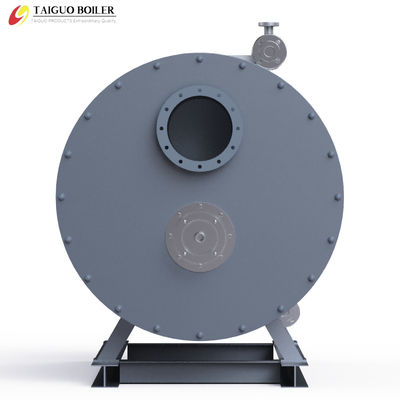

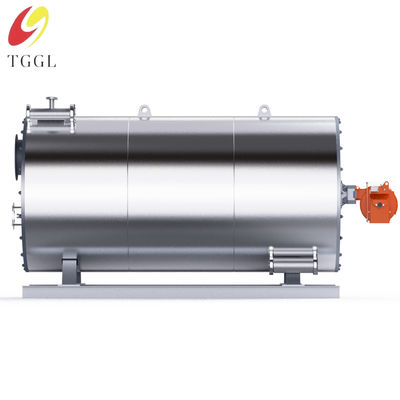

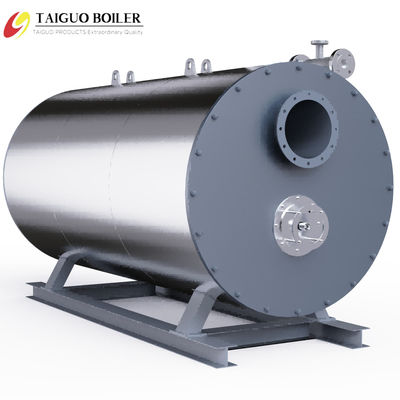

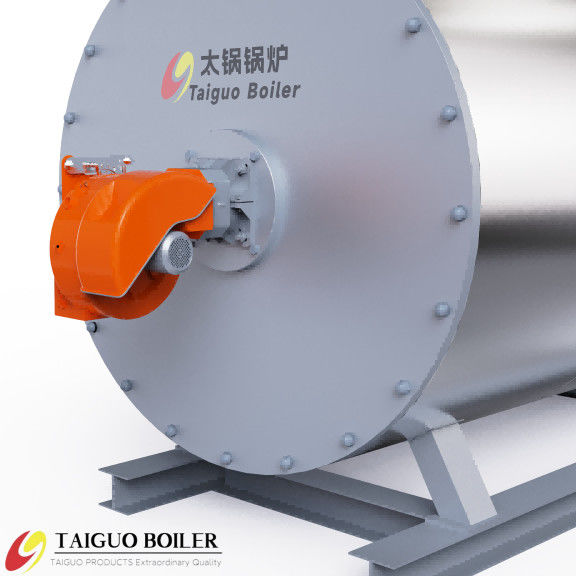

Thermic Oil Heater The Operation Of Industrial Boilers Is Safe And Stable

Product introduction:

YYQW series industrial heat transfer oil furnace design adopts high-quality famous brand burner, oil level, pressure control instrument and oil pump, valve accessories are preferred imported or domestic quality, boiler can implement load, pressure, oil level automatic adjustment, and has oil shortage, overpressure, flameout, dry burning temperature control and other multiple automatic protection functions, with high safety and reliability. This product after commissioning qualified factory, is the industrial and mining enterprises, service industry, food industry, chemical industry and other users of the ideal heating equipment. We will strive to provide first-class after-sales service to ensure the safe and economical use of users.

Product characteristics:

1. The spiral coil inside and outside the furnace body is made of multi-head and small-diameter steel pipe. The coil has good thermal expansion performance, low stress, safety and reliability.
2. Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the operation is safe and stable.
3. Fast assembly factory, short installation period, put into operation fast;
4. Compact structure, small footprint, provincial infrastructure investment.

Technical parameter:

Automatic Adjustment Thermic Oil Heater Industrial Boilers Safe And Stable 0model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 Automatic Adjustment Thermic Oil Heater Industrial Boilers Safe And Stable 1710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000



Work flow chart:

Automatic Adjustment Thermic Oil Heater Industrial Boilers Safe And Stable 2

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
