Fully Automatic Control System Gas Oil Boiler Dual Fuel Steam Boiler  Simple To Operate

Fully Automatic Control System Gas Oil Boiler Dual Fuel Steam Boiler Simple To Operate

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Oil Combination Boiler Steam Yield: 0.5t/h-10t/h
Working Pressure: 1.0、1.25、1.6Mpa Steam Temperature: 184、194、204℃
Fuel: Oil And Gas
High Light:

Fully Automatic Gas Oil Boiler


Gas Oil Boiler Simple To Operate

Product Description

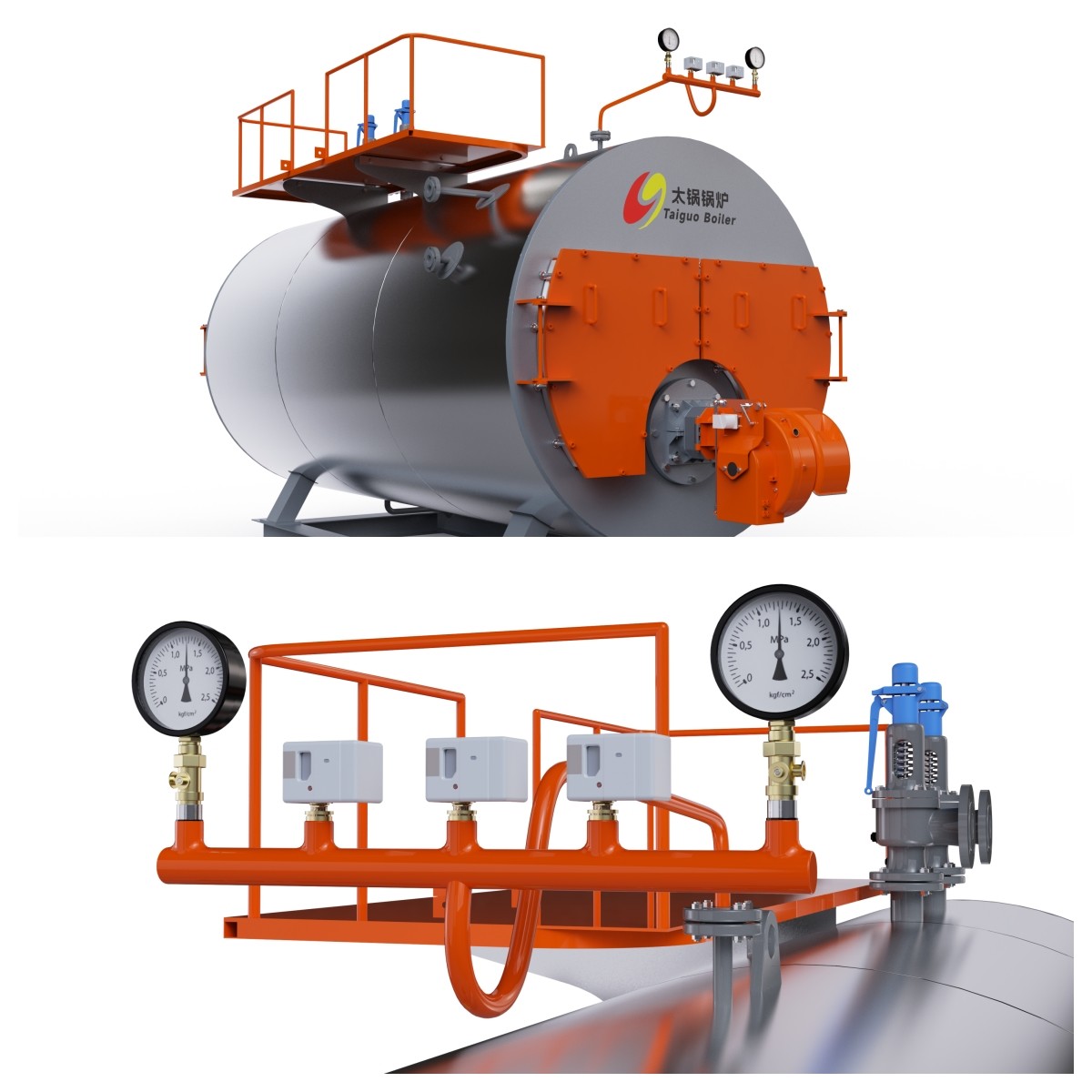

The Fully Automatic Control System Of Oil-Gas Dual Fuel Steam Boiler Is Simple To Operate

Product introduction:

Horizontal WNS series dual fuel industrial steam boiler is equipped with perfect automatic control device and safety protection device with high and low water level alarm and low water level interlocking protection function; Boiler automatic ignition, burner fire automatic regulation and flame out protection, to ensure the safe operation of the boiler. The use of corrosion-resistant steel effectively solves the problem of low-temperature corrosion, the service life of the equipment can reach more than 20 years, and the maintenance is simple and low cost.

Product characteristics:

1. The furnace adopts wet back structure, full edge butt weld, high reliability, low maintenance cost. In addition, the advanced corrugated furnace structure not only enhances the heat transfer area, but also satisfies the free expansion of the furnace after heating.
2. The front and rear smoke boxes are integrated smoke boxes, and there is a team of open smoke box doors on the smoke boxes. The form is good in integrity, beautiful, generous, and light for maintenance and opening.
3. The explosion-proof device connected with the furnace is provided on the back panel of the boiler to prevent the fuel from violent deexplosion in the furnace, release the high energy generated instantly, and can automatically reset, and has the function of fire viewing mirror and inspection channel, using the adjustment of the combustion flame in operation, the furnace inspection and maintenance is convenient.

Technical parameter:

Model Rated Rated Rated Thermal Fuel Consumption









Light oil


Natural gas


WNS1 1 0.7/1.0/1.25 170/184/194 >96 45-100 18-100
WNS1.5 1.5 >96.2 101.73 123.47
WNS2 2 1.0/1.25/1.6 184/194/204 >96.2 137.09 165.97
WNS3 3 >96 205.75 249.6
WNS4 4 >96 272.3 329.5
WNS5 5 >96 134-402 80-500
WNS6 6 >96 134-402 80-500
WNS8 8 1.25/1.6/2.5 194/204/225 >96 523.4 631.5
WNS10 10 >96 212-890 150-1085
WNS12 12 >96 915.5 1090
WNS15 15 >96 931.5 1094.4
WNS20 20 >96 1380.33 1598.44
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.


Work flow chart:

Fully Automatic Control System Gas Oil Boiler Dual Fuel Steam Boiler  Simple To Operate 0


Fully Automatic Control System Gas Oil Boiler Dual Fuel Steam Boiler  Simple To Operate 1

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
