Energy Saving Oil Combination Boiler Industrial Steam Boiler Environmental Protection

Energy Saving Oil Combination Boiler Industrial Steam Boiler Environmental Protection

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Oil Combination Boiler Working Pressure: 1.0、1.25、1.6Mpa
Steam Temperature: 184、194、204℃ Structural Form: Horizontal
Mode Of Transport: Sea And Land Transport Customizable Goods: YES
High Light:

Energy Saving Oil Combination Boiler

,

Industrial Oil Combination Boiler

Product Description

Oil Combination Boiler Industrial Steam Boiler Energy Saving And Environmental Protection Efficiency Is High

Product introduction:

WNS series horizontal internal combustion oil (gas) quick loading boiler, with wet back structure. The corrugated furnace and the return chamber are the first return leg, the second return leg is composed of threaded smoke pipe, and the third return leg is plain smoke pipe. High efficiency and energy saving: The use of spiral fin tube as an efficient heat exchange element can effectively use the latent heat in the flue gas, so that the boiler exhaust temperature from 200 ° C to about 80 ° C, the boiler thermal efficiency can reach about 96%, effectively improve the boiler thermal efficiency, save energy, reduce operating costs.

Product advantages:

1. Large shell diameter, large water capacity, strong ability to adapt to load changes, stable output; The steam space volume is large, the net distance between the steam interface and the steam outlet is high enough, and the steam humidity is small.
2. Design over temperature, over pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.
3. The top of the boiler is provided with a manhole, and the middle and lower parts of the front and back ends of the boiler are provided with a unique hand hole device, which is convenient for the inspection and cleaning of the device in the pot and the bottom of the boiler.

Technical parameter:

Model Rated Rated Rated Thermal Fuel Consumption

Capacity

(t/h)

Pressure

(Mpa)

Temperature

(C)

Efficiency

(%)

Light oil

(Kg/h)

Natural gas

(Nm³/h)

WNS1 1 0.7/1.0/1.25 170/184/194 >96 45-100 18-100
WNS1.5 1.5 >96.2 101.73 123.47
WNS2 2 1.0/1.25/1.6 184/194/204 >96.2 137.09 165.97
WNS3 3 >96 205.75 249.6
WNS4 4 >96 272.3 329.5
WNS5 5 >96 134-402 80-500
WNS6 6 >96 134-402 80-500
WNS8 8 1.25/1.6/2.5 194/204/225 >96 523.4 631.5
WNS10 10 >96 212-890 150-1085
WNS12 12 >96 915.5 1090
WNS15 15 >96 931.5 1094.4
WNS20 20 >96 1380.33 1598.44
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

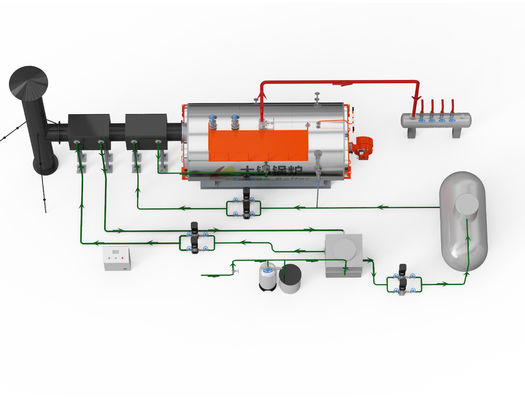

Product display:

Energy Saving Oil Combination Boiler Industrial Steam Boiler Environmental Protection 0Energy Saving Oil Combination Boiler Industrial Steam Boiler Environmental Protection 1Energy Saving Oil Combination Boiler Industrial Steam Boiler Environmental Protection 2

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
