10t/h Gas Horizontal Steam Boiler Low Heat Loss Sufficient Power Multiple Safety Protection

10t/h Gas Horizontal Steam Boiler Low Heat Loss Sufficient Power Multiple Safety Protection

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $9000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Horizontal Steam Boiler Structural Form: Horizontal
Steam Yield: 0.5t/h-10t/h Working Pressure: 1.0、1.25、1.6Mpa
Fuel: Oil And Gas
High Light:

10t/h Gas Horizontal Steam Boiler

,

Low Heat Horizontal Steam Boiler

Product Description

Gas Horizontal Steam Boiler Low Heat Loss Sufficient Power Multiple Safety Protection

Product introduction:

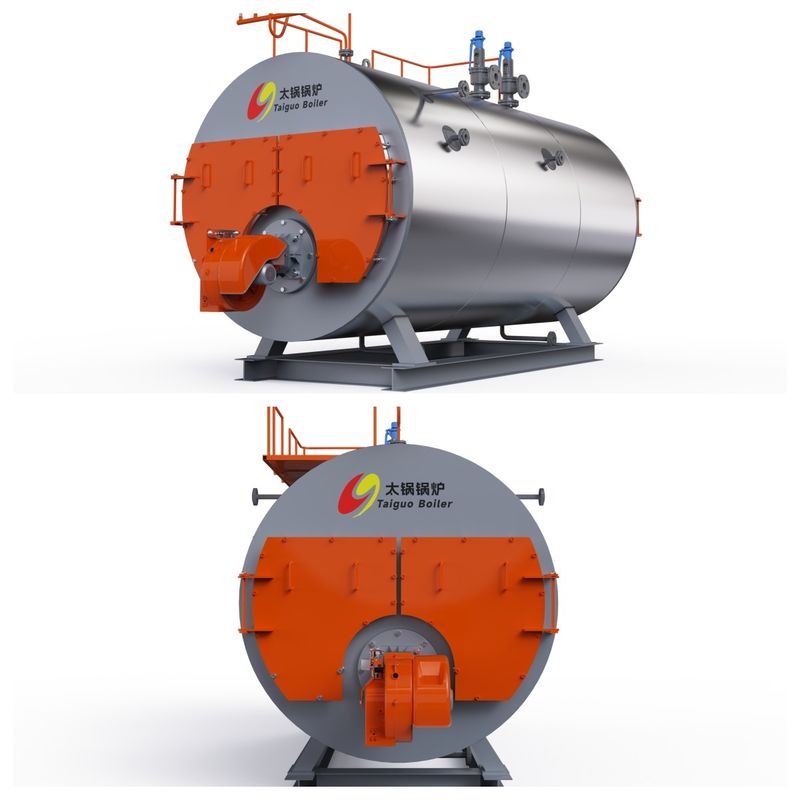

WNS horizontal oil and gas steam boiler uses light oil (heavy oil), natural gas and other fuels, adopts horizontal standard three-return structure, and adopts micro-positive pressure combustion. The boiler body is composed of a drum, a furnace bladder and two return smoke pipes. The boiler drum is equipped with a water separation device and a water supply device, and the lower part is equipped with a periodic sewage device. Boiler combustion adopts automatic combustion system. Its simple structure, convenient manufacture, easy to operate, its unique design makes the boiler compact structure, strong turbulence, good heat transfer effect, the boiler adopts steam collecting tube, optimize the quality of steam, combustion chamber door cover with flange structure, can be very convenient to open the smoke box, overhaul the burner or clean the furnace and smoke pipe, greatly improve the safety and reliability of the boiler operation.

Product characteristics:

1, boiler know-how
All wet back three return, the return combustion chamber and the rear tube plate edge docking, boiler 100% full butt welding, the lowest stress, more reliable quality.
2, large diameter corrugated furnace gall
The combustion chamber of the boiler is composed of a large-diameter corrugated furnace with large combustion space, complete fuel combustion, effective absorption of thermal expansion, and large radiation heating surface.
3. High steam quality
The shell diameter is large, the water capacity is large, the ability to adapt to load changes is strong, and the output is stable; The steam space volume is large, and the net distance between the steam interface and the steam outlet is high enough.

Technical parameter:

Model Rated Rated Rated Thermal Fuel Consumption

Capacity

(t/h)

Pressure

(Mpa)

Temperature

(C)

Efficiency

(%)

Light oil

(Kg/h)

Natural gas

(Nm³/h)

WNS1 1 0.7/1.0/1.25 170/184/194 >96 45-100 18-100
WNS1.5 1.5 >96.2 101.73 123.47
WNS2 2 1.0/1.25/1.6 184/194/204 >96.2 137.09 165.97
WNS3 3 >96 205.75 249.6
WNS4 4 >96 272.3 329.5
WNS5 5 >96 134-402 80-500
WNS6 6 >96 134-402 80-500
WNS8 8 1.25/1.6/2.5 194/204/225 >96 523.4 631.5
WNS10 10 >96 212-890 150-1085
WNS12 12 >96 915.5 1090
WNS15 15 >96 931.5 1094.4
WNS20 20 >96 1380.33 1598.44
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.



Product flow chart:

10t/h Gas Horizontal Steam Boiler Low Heat Loss Sufficient Power Multiple Safety Protection 0
