High Efficient Electric Heating Steam Boiler Fully Automated And Monitored
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | WDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Electric Heating Steam Boiler | Quantity Of Steam: | 100kg-6000kg |
|---|---|---|---|
| Structural Form: | Horizontal | Fuel: | Electricity |
| High Light: | High Efficient Electric Heating Steam Boiler,Electric Heating Steam Boiler Fully Automated |
||
Product Description
Highly Efficient Electric Heating Steam Boiler Fully Automated And Monitored
Product introduction:

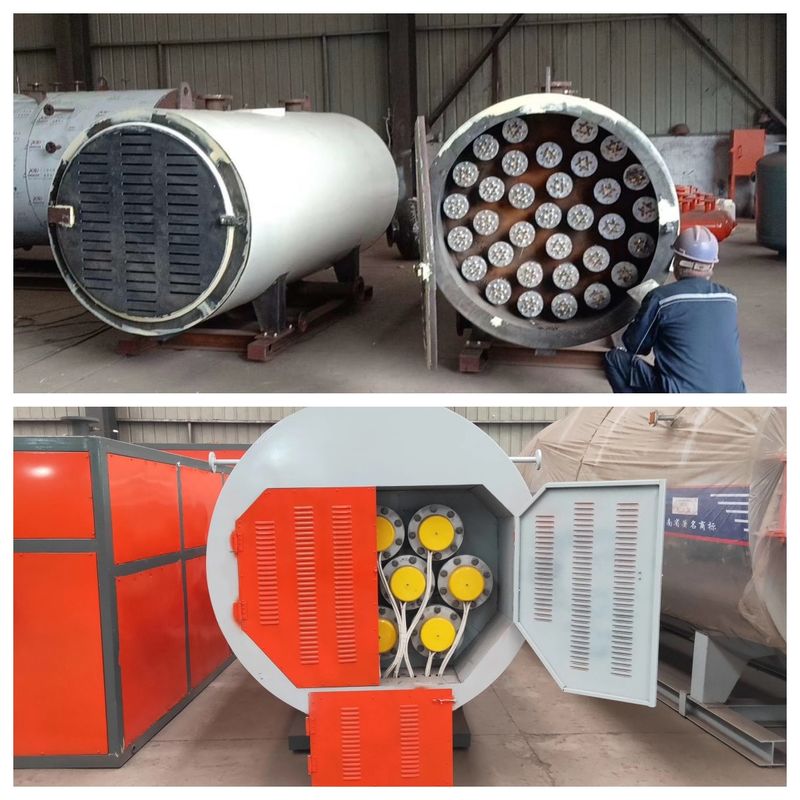

WDR series is a kind of horizontal electric heating steam boiler, which is mainly composed of front and rear head, cylinder and electric heating tube. The electric heating tube is heated inside the drum and works according to the heat transfer principle of water. The boiler is equipped with current protection, short circuit protection, leakage protection, overvoltage protection and phase loss protection. The operation adopts PLC control system, all free operation button, all free indicator light, touch screen panel, Chinese-English display, man-machine dialogue, operation authorization, real-time information, automatic page turning. It is the most ideal choice for electric heating steam boilers.
Product advantage:
1) Fully automated operation, no noise, no pollution to the environment.
2) Rapid steam production and high thermal efficiency.
3) The boiler has a pressure protection device, when the steam pressure reaches the set upper limit, the power will stop heating; When the steam pressure drops to the lower limit of the set value, the boiler will automatically heat with electricity
4) The boiler is equipped with a safety valve, when the steam overpressure, the safety valve will automatically open the steam discharge to ensure the safety of the boiler; When the pressure drops to the specified value, the safety valve automatically closes to prevent the pressure from continuing to drop.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
|
Rated steam (t/h) |
0.5 |
1 |
1.5 |
2 |
3 |
4 |
6 |
|
Electric power (KW) |
375 |
750 |
1050 |
1500 |
2250 |
3000 |
4500 |
|
Rated pressure (Mpa) |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
|
Rated steam Temperature(℃) |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
|
Heat Efficiency (%) |
99 |
||||||
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
|
Reference weight (kg) |
1263 |
2100 |
2600 |
3100 |
5450 |
5203 |
6600 |
