Horizontal Electric Heating Steam Boiler High Thermal Efficiency Quiet Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | WDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Electric Heating Steam Boiler | Thermal Efficiency: | 99% |
|---|---|---|---|
| Steam Yield: | 0.5t/h-5t/h | Working Pressure: | 0.7Mpa |
| High Light: | Horizontal Electric Heating Steam Boiler,Quiet Operation Electric Heating Steam Boiler |
||
Product Description
Horizontal Electric Heating Steam Boiler High Thermal Efficiency Quiet Operation
Product introduction:

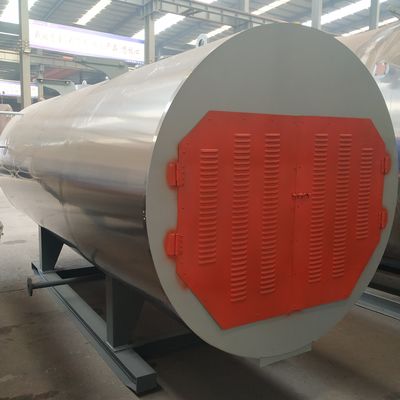

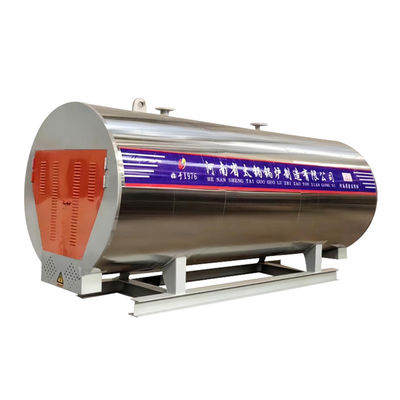

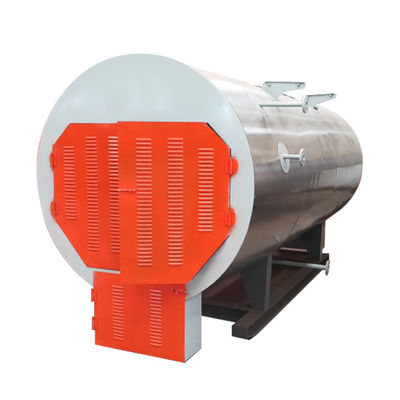

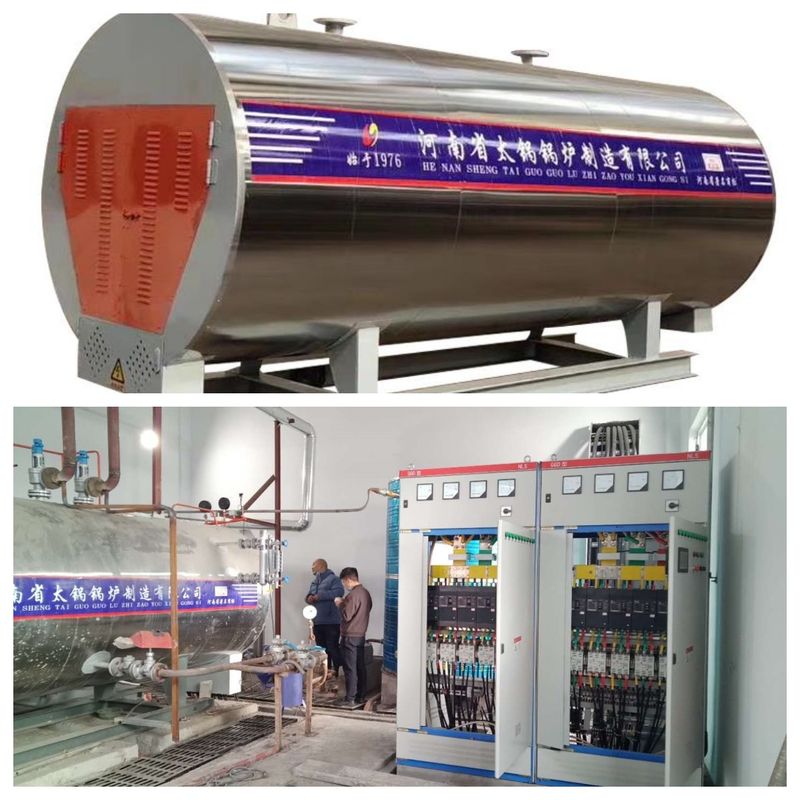

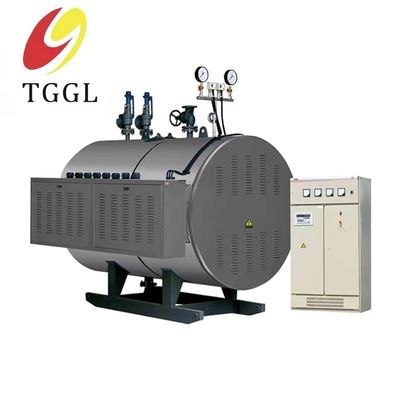

The boiler is a horizontal electric heating steam boiler, which is mainly composed of front and back head, barrel and electric heating tube. The boiler is equipped with safety accessories such as safety valve, water level control gauge, pressure gauge, etc. In order to effectively control pressure and temperature, the boiler is equipped with automatic interlocking device, which has the function of overpressure and overtemperature protection. When the boiler pressure and temperature exceed the limit value, cut off the power supply of the electric heating element, send an alarm signal, and can restart the operation after manual reset. The boiler is mainly used in heating, food processing, textile and clothing, planting and breeding industries.
Product characteristics:
1) Simple structure, easy installation and use, small footprint.
2) Fully automated operation, no noise, no pollution to the environment.
3) The boiler is equipped with a safety valve, when the steam overpressure, the safety valve will automatically open the steam discharge to ensure the safety of the boiler; When the pressure drops to the specified value, the safety valve automatically closes to prevent the pressure from continuing to drop.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
|
Rated steam (t/h) |
0.5 |
1 |
1.5 |
2 |
3 |
4 |
6 |
|
Electric power (KW) |
375 |
750 |
1050 |
1500 |
2250 |
3000 |
4500 |
|
Rated pressure (Mpa) |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
|
Rated steam Temperature(℃) |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
|
Heat Efficiency (%) |
99 |
||||||
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
|
Reference weight (kg) |
1263 |
2100 |
2600 |
3100 |
5450 |
5203 |
6600 |
