5t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency

5t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $8000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Commercial Steam Boiler Steam Yield: 0.5t/h-5t/h
Working Pressure: 1.0、1.25、1.6Mpa Fuel: Coal, Biomass, Palm Shell
High Light:

5t/h Commercial Steam Boiler

,

Semi Automatic Commercial Steam Boiler

Product Description

Commercial Steam Boiler Coal Semi-Automatic Labor Saving Efficiency

Product introduction:

DZH type hand burning coal burning biomass boiler is a mature, advanced product of our company, an energy-saving and environmentally efficient product, can burn formed biomass fuel, but also pure coal or mixed coal and formed biomass fuel. Compared with traditional coal boilers, it not only has a wide range of fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, which is the best choice for all merchants.

Product advantage:

1. The boiler furnace adopts the form of curved water-cooled wall tube and drum and left and right collecting box, which can expand freely upward.

2. The convection tube in the cylinder adopts a rolled threaded smoke pipe to improve the rotation of the working medium and increase the heat transfer.

3. Using high thermal resistance material as insulation layer, good thermal insulation performance.

Technical parameter:

Mode l



item



DZH0.5



DZH1



DZH2



DZH3



DZH4

Rated evaporation

capacity(t/h)



0.5



1



2



3



4

Rated pressure( Mpa ) 0 .7/ 1 .0 0 .7/ 1 .0/ 1 .25 0 .7/ 1 .0/ 1 .25 1 .25/ 1 .6 1 .25/ 1 .6
Rated steam temperature(℃) 170/ 184 170/ 184/ 194 170/ 184/194 194/204 194/204
Feed water temperature (℃) 20 20 20 20 20
Heating area(m) Body ~21 .31 ~33 .24 ~59 .47 ~72 .31 ~92 .82
Economizer 8 .28 10 .56 27 .6 35 .2 69 .76
Effective area of garte(m) 1 .28 2 . 1 3 .36 4.5 5.2
Fuel type Biomass pellet,wood sawdust,bamboo chip,wood block,straw,Jute, palm shell
Fuel Consumption (kg/h) ~150 ~300 ~600 ~900 ~1200
Flue gas temperature(℃) ~155 ~155 ~155 ~155 ~155
Themal efficiency (%) ~85 ~85 ~85 ~85 ~85
Weight of biggest part for transportation(t) 8 12 15 17 .6 22
Overall dimension of biggest part for transportation(m) 3 .3*2 .0*2 .7 4 . 1*2 .2*2 .9 4 .7*2 .4*3 .2 5 .2*2 .5 *3 .3 5 .6*2 .6 *3 .6

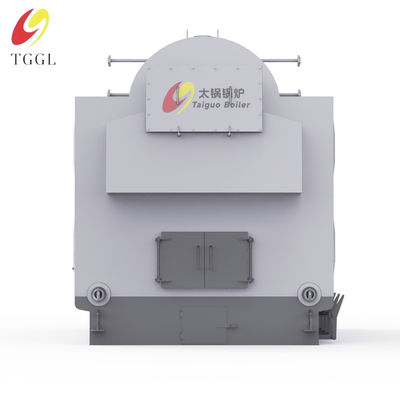

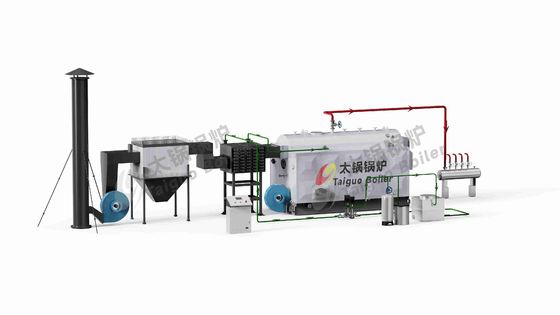

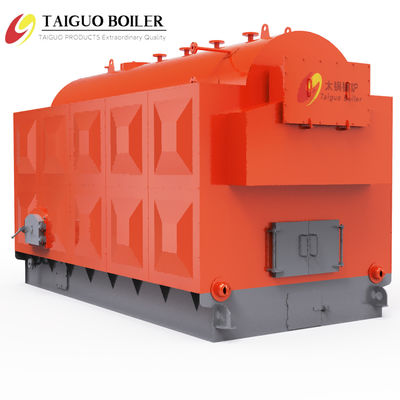

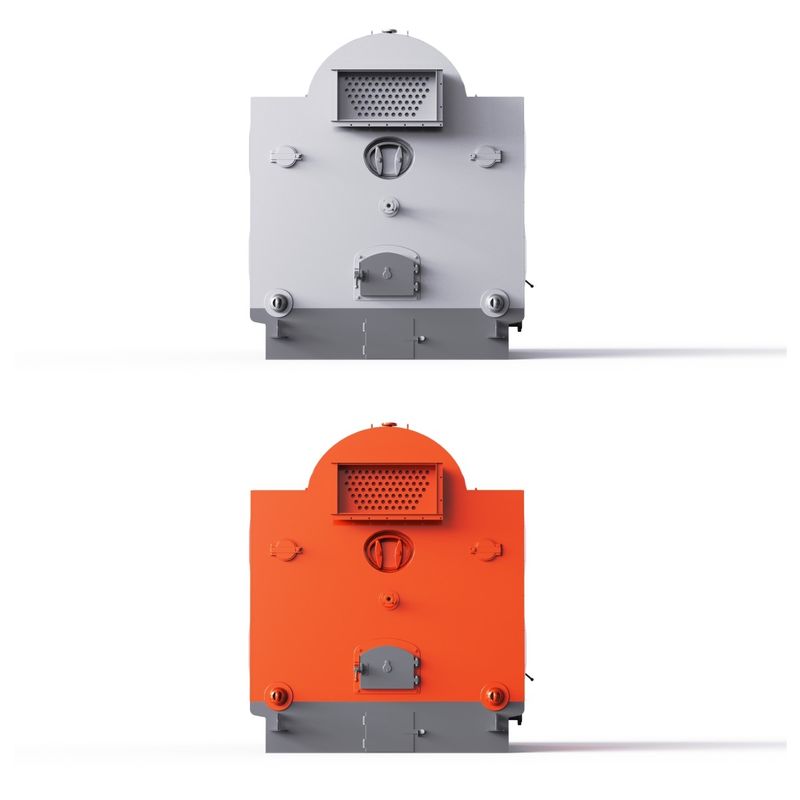

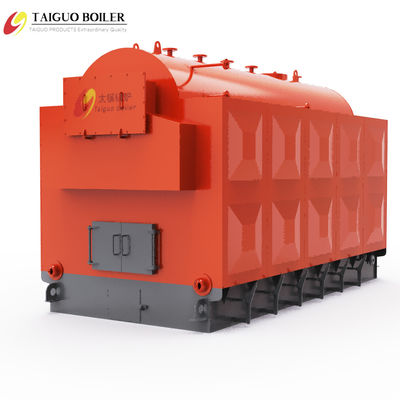

Product display:

5t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency 05t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency 15t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency 25t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency 35t/h Commercial Steam Boiler Coal Semi Automatic Labor Saving Efficiency 4

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
