WNS Series Horizontal Steam Boiler PLC Control System Safe 0.5t/h
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | WNS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Horizontal Steam Boiler | Steam Yield: | 0.5t/h-10t/h |
|---|---|---|---|
| Working Pressure: | 1.0、1.25、1.6Mpa | Suitable Fuel: | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| High Light: | PLC Control Horizontal Steam Boiler,Horizontal Steam Boiler 0.5t/h |
||
Product Description
WNS Series Horizontal Steam Boiler PLC Control System Is Safe And Reliable
Product introduction:

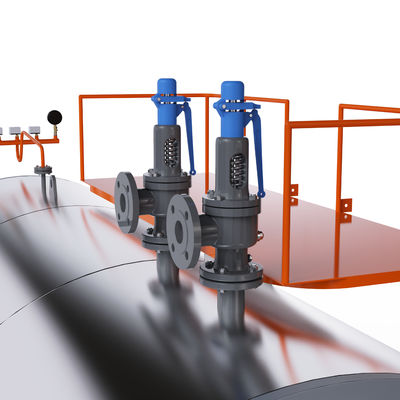

WNS series steam boiler, is a horizontal internal combustion oil (gas) quick loading boiler, using wet back structure. The corrugated furnace and the return chamber are the first return leg, the second return leg is composed of threaded smoke pipe, and the third return leg is plain smoke pipe. The boiler is equipped with a complete automatic control device and safety protection device with high and low water level alarm and low water level interlocking protection function; Boiler automatic ignition, burner fire automatic regulation and flame out protection, to ensure the safe operation of the boiler. According to the actual needs of customers to set the furnace start and stop pressure, size fire conversion pressure, smoke exhaust temperature is too high alarm stop temperature, boiler water level monitoring, intelligent matching customer conditions, saving fuel and labor. The boiler uses a variety of pressure controller, pressure transmitter, water level alarm, safety valve, extremely low water level alarm and other multiple safety protection functions.
Product advantage:
1. The front and rear smoke boxes are integrated smoke boxes, and there are team open smoke boxes on the smoke boxes. The form is good in integrity, beautiful, generous, and light in maintenance and opening.
2. Adopt the new spiral fin energy saver and condenser, increase the heating area, reduce its volume, and make its structure compact.
3. This type of boiler has high thermal efficiency, stable output and strong load adaptability.
4. The quick installation structure can effectively shorten the installation cycle.
Technical parameter:
|
Model |
Rated Capacity (t/h) |
Rated Pressure (Mpa) |
Rated Temperature (C) |
Thermal Efficiency (%) |
Exhaust gas temperature(ºC) |
Maximum transport weight of boiler(t) |
Maximum transport size of boiler( mm) |
Fuel Consumption | |
|
Light oil (Kg/h) |
Natural gas (Nm³/h) |
||||||||
| WNS1 | 1 |
0.7/ 1.0/ 1.25 |
170/ 184/ 194 |
>98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 |
| WNS1.5 | 1.5 | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 | ||
| WNS2 | 2 |
1.0/ 1.25/ 1.6 |
184/ 194/204 |
>98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 |
| WNS3 | 3 | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 | ||
| WNS4 | 4 | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 | ||
|
WNS5 |
5 |
>98 |
≤60 |
14.2 |
5200×2300×2700 |
312.5 |
357 |
||
|
WNS6 |
6 |
>98 |
≤60 |
17.5 |
5660×2400×2800 |
375 |
428.4 |
||
|
WNS8 |
8 |
1.25/ 1.6/2.5 |
194/204/225 |
>98 |
≤60 |
21.3 |
5900×2500×3000 |
500 |
571.2 |
|
WNS10 |
10 |
>98 |
≤60 |
22 |
6600×2700×3200 |
625 |
714 |
||
| WNS12 | 12 | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 | ||
|
WNS15 |
15 |
>98 |
≤60 |
35.5 |
7500×3400×3600 |
937.5 |
1071 |
||
|
WNS20 |
20 |
>98 |
≤60 |
45 |
7800×3700×4200 |
1250 |
1428 |
||
|
Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. |
|||||||||

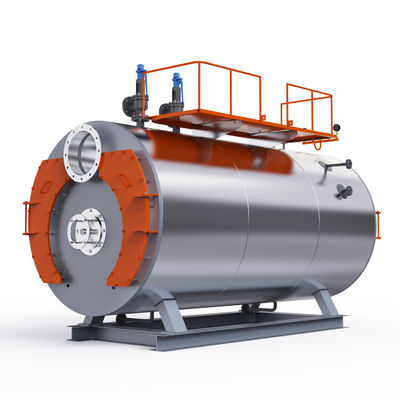

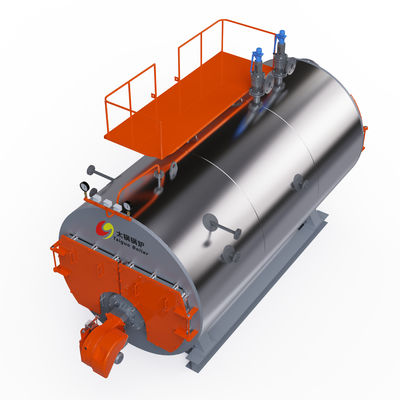

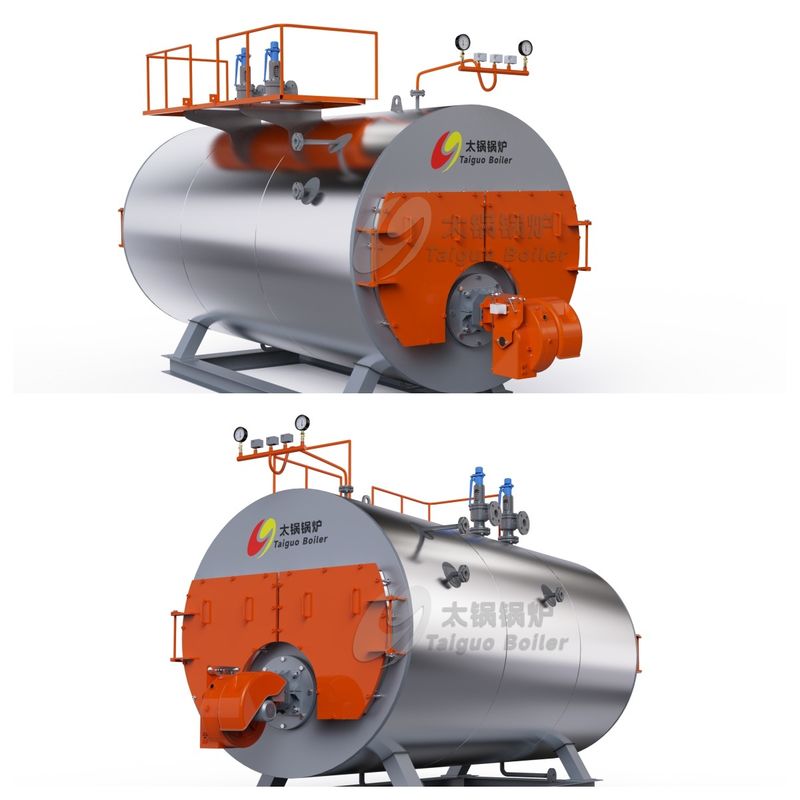

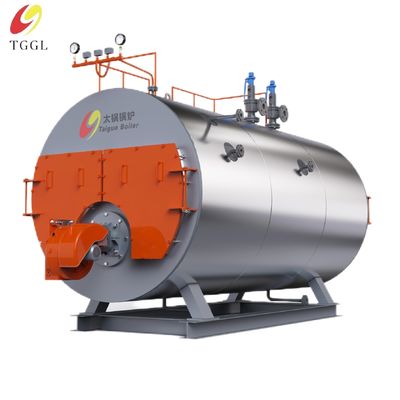

Product photos and flow charts:
