Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired

Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired

Product Details:

Brand Name: TAIGUO
Certification: EAC CE SGS ISO90001
Model Number: LHS-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD2000-9500 Set
Packaging Details: Whole box packaging
Delivery Time: 15-25 days
Payment Terms: TT, D/A, D/P, T/T, L/C
Supply Ability: 1000
Get Best Price Contact Now

Detail Information

Place Of Origin: Henan, China Trademark: TAIGUO
Structure: Water Tube Warranty: 1
Capacity: 1t/h Warranty Of Core Components: 1 Year
Fuel Type: Oil, Gas, Coal, Wood, Biomass Temperature: 151/170 ℃
Transport Package: Full Container Steam Production: 100-1000 Kg
Usage: Industrial Fuel: Gas Oil
Dimension(L*W*H): Customized Thermal Efficiency: >93%
Voltage: 220-460V/50-60Hz Condition: New
High Light:

1000Kg Vertical Steam Boiler

,

Diesel Fired Vertical Steam Boiler

Product Description

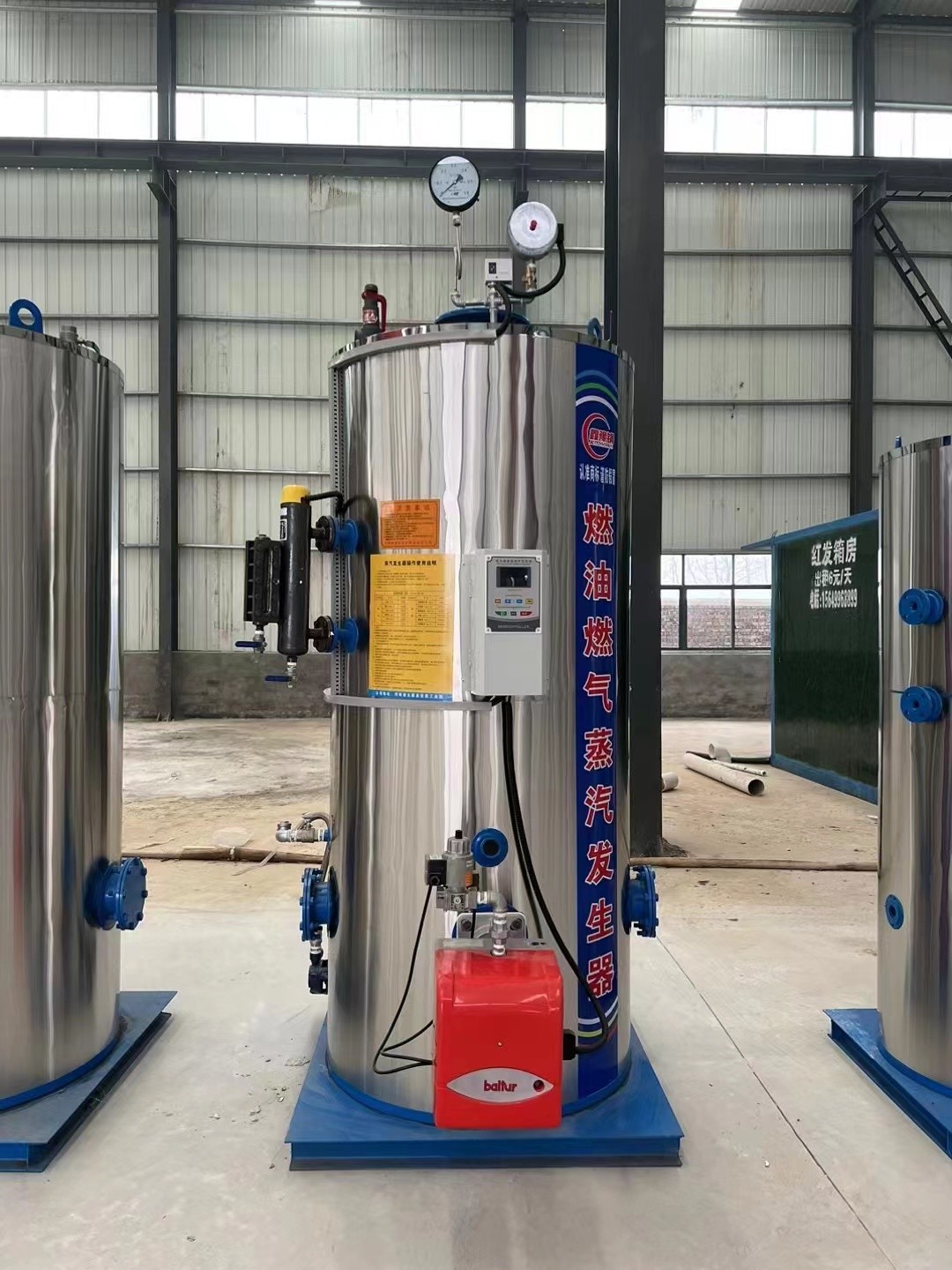

1000 Kg Natural Gas LPG Oil Diesel Fired Small Vertical Steam Boiler

Product Description:

The LHS type oil and gas steam generator structure is surrounded by water in the combustion chamber, avoiding heat loss, saving energy, and reducing operating costs. The shell and fire hose are made of special materials, with European and American standard thickness, high strength, safety, stability, reliability, and long service life. Reliable boiler auxiliary equipment and various safety protection devices, such as pressure controllers, pressure transmitters, water level alarms, safety valves, etc.
Adopting an intelligent boiler controller. It does not need to be managed by fully automated operations. When an abnormal operation occurs, it will automatically stop and display a fault. Easy to maintain. Meanwhile, with low operating costs, it is the preferred choice for energy-saving, emission reduction, and environmental protection products

Features:

The characteristic of vertical design is that it occupies a very small area and is a low investment cost solution. During operation, the boiler operates at low pressure, allowing it to produce steam safely and quickly. The design of the large melting furnace gives it good combustion efficiency and high thermal efficiency. Finally, multiple regulations on overpressure, overheating, water shortage, and shutdown help ensure the safety of the boiler during operation.
1. Vertical, small footprint, low investment cost
2. Low pressure operation, safe and fast generation of steam
3. Large furnace design with high combustion efficiency and thermal efficiency

Technical Parameters:

Parameters Details
Warranty 1 year
Capacity 0.5t/h
Pressure Low Pressure
Media Steam
Structure Water Tube
Fuel Type Oil, Gas, Coal, Wood, Biomass
Application Industrial
Temperature 151-170
Burning Style Chamber Combustion Boiler
Design Vertical
Product Name Verticle Oil/Gas Steam Boiler, Verticle Type Gas/Oil Steam Generator , Steam Generator


Applications:

Applicable industries include textile factories, food and beverages, chemical industry, medicine, light industry, rubber, printing and dyeing factories, paper factories, wood crafts, clothing, clothes, laundry, etc.



Packing and Shipping:

Packaging and Shipping

Vertical steam boiler is packaged and shipped in a secure and safe manner, ensuring that it arrives at its destination in perfect condition for installation. The boiler is placed in a sturdy wooden crate, which is then surrounded with protective packaging material such as bubble wrap and foam to provide cushioning and prevent any damage during transit. The crate is then sealed and securely fastened for shipping.

Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired 0

Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired 1Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired 2Small Vertical Steam Boiler 1000 Kg Natural Gas LPG Oil Diesel Fired 3
