Product Name: Thermic Oil Boiler Structural Form: Horizontal
Applicable Industry: Grease, Chemicals, Etc Fuel: Oil Gas
High Light:

Industrial Thermic Oil Boiler

,

Multi Functional Thermic Oil Boiler

Product Description

YYQW Series Thermic Oil Boiler Industrial Equipment Is Safe And Reliable

Product introduction:

YYQW series organic heat carrier furnace is a horizontal coil structure heating equipment developed and designed on the basis of imported equipment from abroad. It is mainly composed of the body and the combustion chamber. The high temperature flue gas generated by the combustion of natural gas enters the body and exchanges heat with the organic heat carrier in the coil by means of radiation heat transfer and convective heat transfer. The closed circuit forced circulation of the organic heat carrier system is realized by the circulating oil pump, and the heat carrier obtained in the body serves as the heat source to supply the heat equipment.

Product characteristics:

1. Large diameter combustion chamber
The combustion chamber of the boiler is composed of a large diameter coil, the fuel combustion space is sufficient, the combustion is complete, and the thermal efficiency is high.
2. Optimal coil design
The spiral coil inside and outside the furnace body is made of multi-head and small-diameter steel pipe. The coil has good thermal expansion performance, low stress, safety and reliability.
3. Optimal process design
Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the operation is safe and stable.
4. Do enough work
The heating surface layout is reasonable, the area is large, the heat transfer effect is good, the efficiency is high, and the output is stable and sufficient.
5. Multi-functional safety explosion-proof device
The furnace body tail is equipped with an explosion-proof device connected with the furnace. When the fuel is discharged in the furnace, the high energy generated instantaneously can be automatically reset. At the same time, it has the function of fire viewing mirror and inspection channel.

Product parameter:

YYQW Series Thermic Oil Boiler Industrial Equipment Multi Functional 0model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 YYQW Series Thermic Oil Boiler Industrial Equipment Multi Functional 1710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700

1000

 Product display:

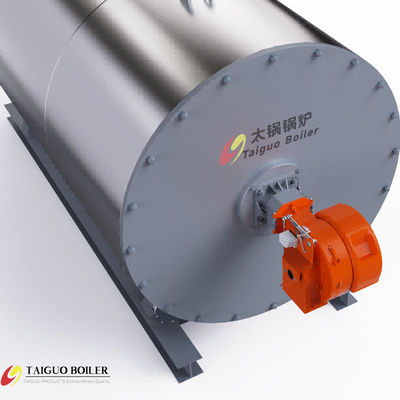

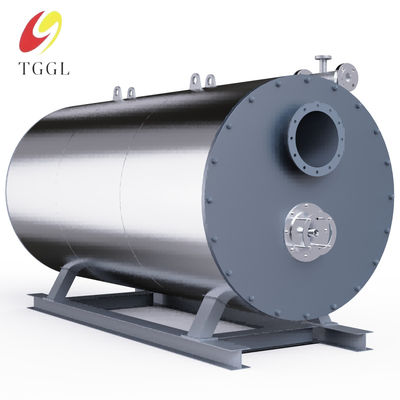

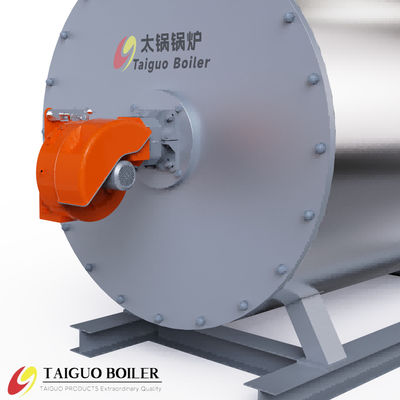

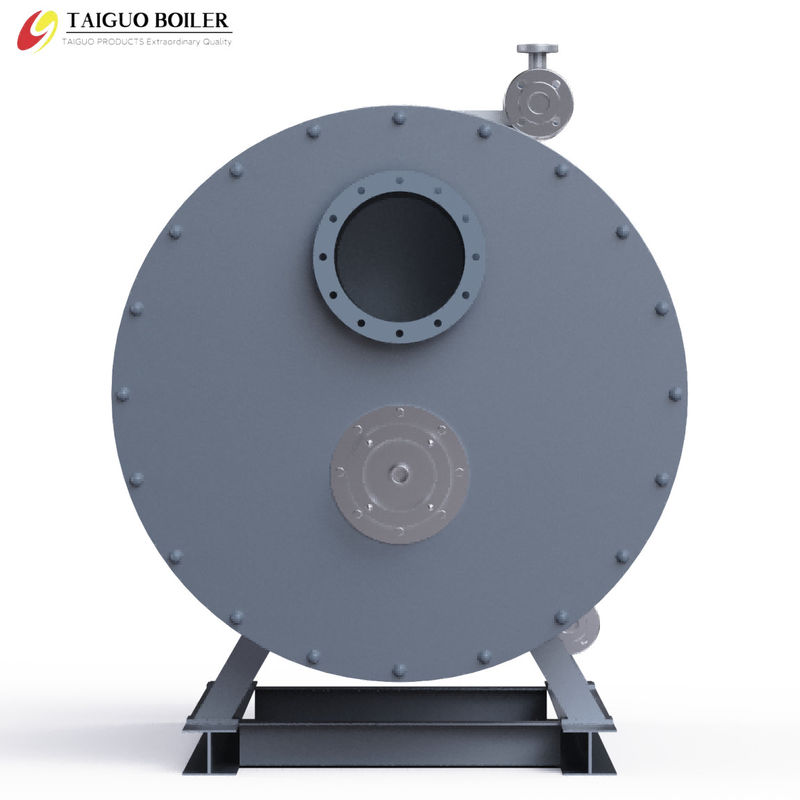

YYQW Series Thermic Oil Boiler Industrial Equipment Multi Functional 2YYQW Series Thermic Oil Boiler Industrial Equipment Multi Functional 3YYQW Series Thermic Oil Boiler Industrial Equipment Multi Functional 4

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
