Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety

Product introduction:

YYQW series organic heat carrier furnace (referred to as heat transfer oil boiler) is a new type of heating equipment, with coal, oil, gas as fuel and flue gas as heat source, heat transfer oil as heat carrier through the circulation pump forced heat carrier liquid phase circulation, the heat transfer to the heating equipment, and then return to the heating furnace to reheat high temperature, low pressure, energy-saving equipment, heating temperature can be up to 340℃, Generally, the working pressure is below 1.0MPa, because the work is in the liquid phase state, safe and reliable. Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the heat transfer effect is good, the efficiency is high, the stability is sufficient

Product characteristics:

1. Large diameter combustion chamber
The combustion chamber of the boiler is composed of a large diameter coil, the fuel combustion space is sufficient, the combustion is complete, and the thermal efficiency is high.
2. Optimal coil design
The spiral coil inside and outside the furnace body is made of multi-head and small-diameter steel pipe. The coil has good thermal expansion performance, low stress, safety and reliability.
3. Optimal process design
Flue gas three return, the medium flows through the inner and outer coil, the flow rate is uniform, the operation is safe and stable.
4. Do enough work
The heating surface layout is reasonable, the area is large, the heat transfer effect is good, the efficiency is high, and the output is stable and sufficient.
5. Multi-functional safety explosion-proof device
The furnace body tail is equipped with an explosion-proof device connected with the furnace. When the fuel is discharged in the furnace, the high energy generated instantaneously can be automatically reset. At the same time, it has the function of fire viewing mirror and inspection channel.

Technical parameter:

Low Pressure Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety 0model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 Low Pressure Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety 1710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000

Product display:

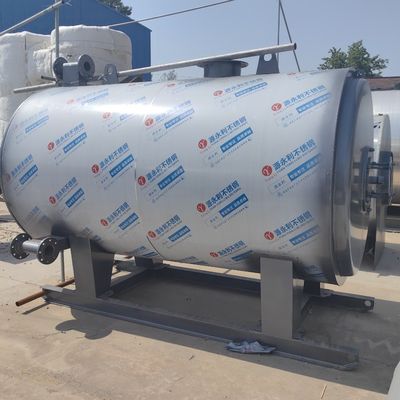

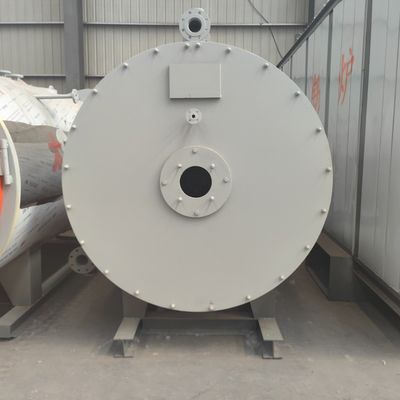

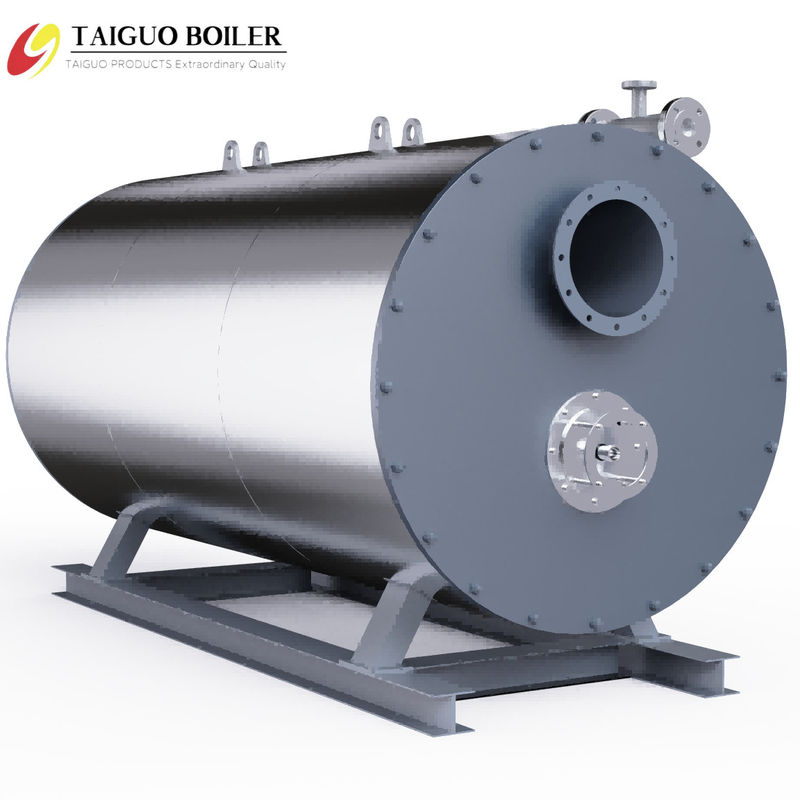

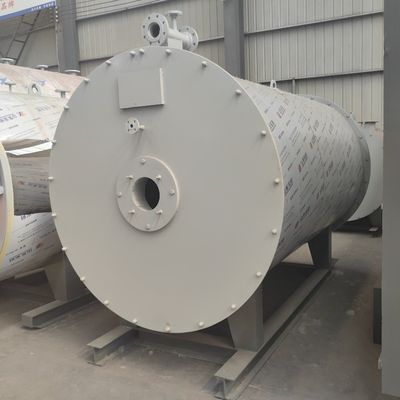

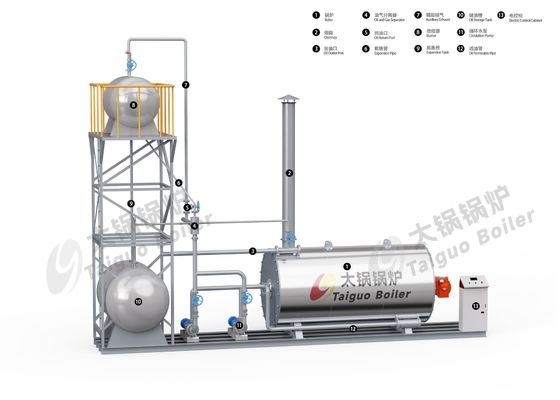

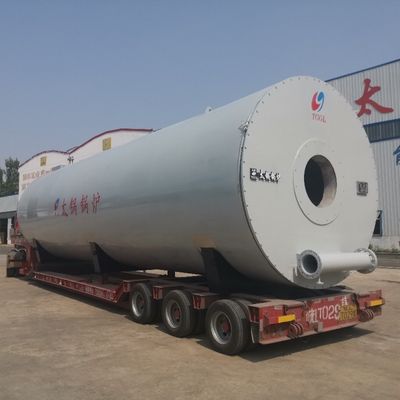

Low Pressure Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety 2Low Pressure Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety 3Low Pressure Thermal Oil Furnace Industrial Boiler Flow Rate Uniform Operation Safety 4
