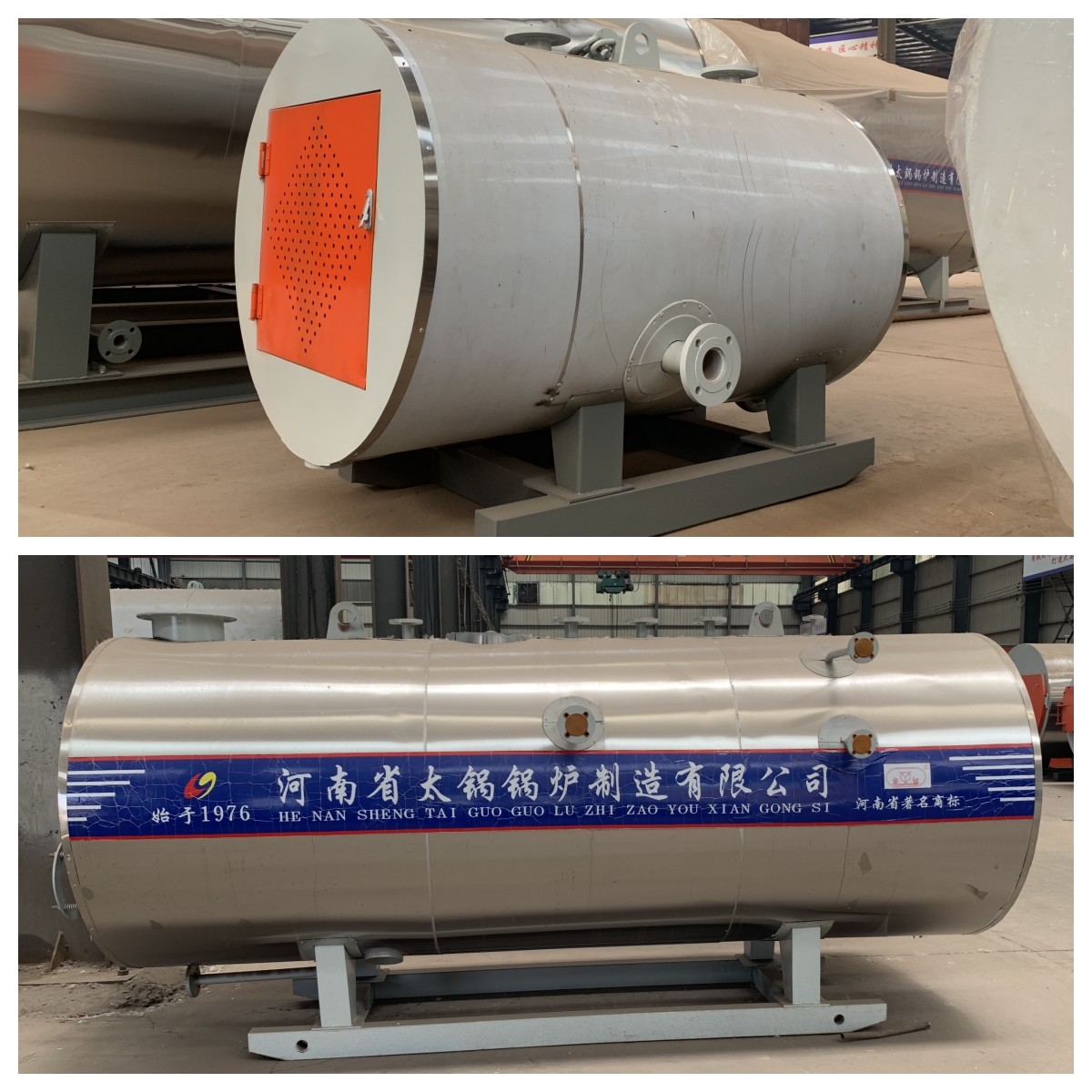

0.5t/H Noise Free Electric Steam Boiler Pollution Free
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | WDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $10000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Name: | Steam Boiler Systems | Steam Capacity: | 0.5t/h-6/h |
|---|---|---|---|
| Working Pressure: | 1.0、1.25、1.6Mpa | Structural Form: | Horizontal |
| Highlight: | 0.5t/h electric steam boiler,noise free electric steam boiler,pollution free electric heating steam boiler |
||
Product Description
Product introduction:
The TAIGUO WDR electric heating boiler is powered by electricity and is noise-free and pollution-free. High quality heating tube, low surface heat load, high thermal efficiency. Advanced centrifugal glass wool multi-layer insulation, imported color plate packaging; Both ends of the living packaging cover, convenient installation and maintenance; Electrical components are the core part of the electric boiler, and the products meet the safety and rest assured
Product characteristics:
1, the use of advanced electric heating tube, each group of electric heating elements using concentrated beam type flange connection, independent setting, with simple structure, high mechanical strength, safe and reliable, easy to replace, its surface load is low, long service life.
2, the boiler starts and stops fast, the operating load adjustment range is large, the adjustment speed is fast, and the operation is simple.
3, the high-power electric steam boiler adopts the separation of the furnace body and the control cabinet, which can be used in parallel with a single or multiple sets to avoid the use of electrical components affected by heat.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
|
Rated steam (t/h) |
0.5 |
1 |
1.5 |
2 |
3 |
4 |
6 |
|
Electric power (KW) |
375 |
750 |
1050 |
1500 |
2250 |
3000 |
4500 |
|
Rated pressure (Mpa) |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
0.7/1.0/1.25 |
|
Rated steam Temperature(℃) |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
170/184/194 |
|
Heat Efficiency (%) |
99 |
||||||
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
|
Reference weight (kg) |
1263 |
2100 |
2600 |
3100 |
5450 |
5203 |
6600 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
