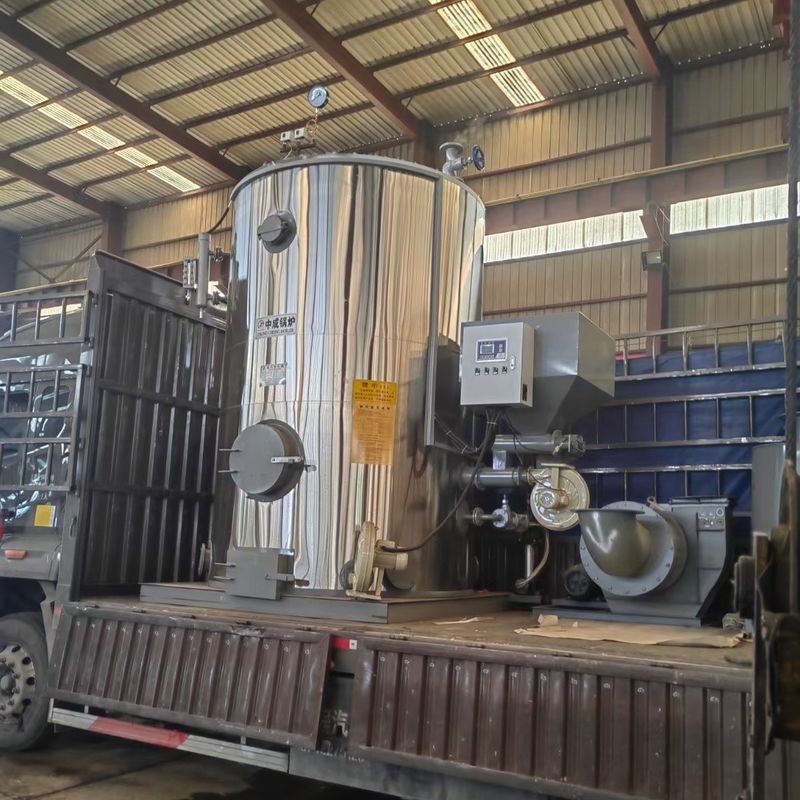

Automatic Control System Vertical Fire Tube Boiler One Click Operation

Automatic Control System Vertical Fire Tube Boiler One Click Operation

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: LHS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $4000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Vertical Steam Boiler Steam Capacity: 0.1t/h-1t/h
Structural Form: Vertical Type Fuel: Oil And Gas
High Light:

automatic control system vertical steam boiler

,

automatic control vertical fire tube boiler

,

one click vertical fire tube boiler

Product Description

Product introduction:

Vertical steam boiler adopts automatic microcomputer control system, automatic control of equipment operation, no manual guard, automatic water intake system. Automatic pressure control system, automatic feeding system. With a low water level alarm and stop operation, overpressure alarm to stop the whole system, lower than the set pressure automatically start operation, reach the required maximum pressure automatically stop operation, using multiple safety design, safe and reliable. Factory configuration is complete, durable, safe and convenient. Fire tube arrangement structure, heating surface is large, temperature rise and steam production is fast.

Product characteristics:

1. One-click operation is safe and convenient
Configuration of microcomputer LCD control system, one-click operation, the water and electricity installation in place, set the automatic stop of high pressure and automatic start of the operation of low pressure, press the switch key, the generator will enter the automatic operation state, safe and simple, no professional furnace personnel, reduce the labor intensity of personnel.
2. Multi-protection security guarantee
The product is equipped with high quality pressure controller, safety valve, and multiple protection such as overpressure alarm, low water level alarm and overheating protection to ensure product quality and safety.

Technical parameter:





Model



Rated

Capacity

(t/h)



Rated

Pressure

(Mpa)



Rated

Temperature

(C)



Maximum

transport weight

of boiler(t)





Maximum transport size of boiler( mm)

Fuel Consumption



diesel oil (Kg/h)



Natural

gas (m³/h)



LPG (kg/h)

LHS0.05 0.05



0.4



151

0.37 700× 650×1700 8.2 10.2 6.45
LHS0.1 0.1 0.59 800×750 ×2000 11.3 13.6 13
LHS0.2 0.2







0.4~0.7







151~170

0.68 900× 850×2000 15.6 18.7 19.4
LHS0.3 0.3 0.83 1000×950×2000 22.5 26.8 25.6



LHS0.5



0.5



1.07



1100×1050×2000



32.5



36.8



32



LHS0.7



0.7











0.4~0.7











151~170



1.45



1200×1150×2200



40.6



48.5



50



LHS1



1



1.78



1300×1250×2450



45.9



65.3



65



LHS1.5

1.5



1.9



1780×1600×3200



78.4



102.1



97



LHS2



2



5.2



2000×2000×4000



91.8



130.6



130



Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas

2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.



Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
