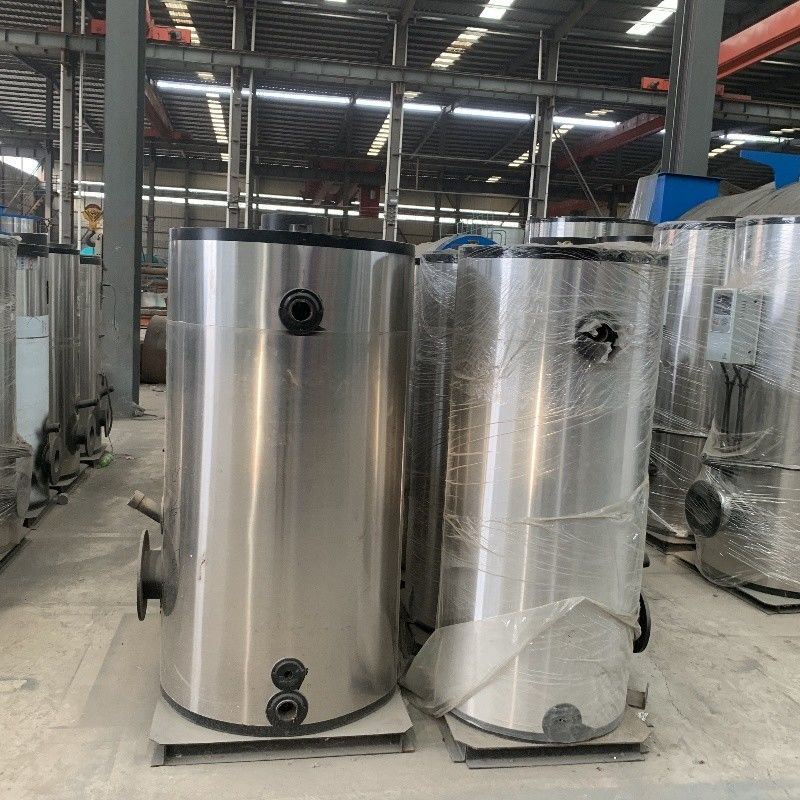

0.1t/H Vertical Model Steam Boilers Internal Combustion Three Return

0.1t/H Vertical Model Steam Boilers Internal Combustion Three Return

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: LHS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $4000.00
Packaging Details: Bulk, packaged
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Name: Vertical Steam Boiler Steam Yield: 0.1t/h-1t/h
Fuel: Oil And Gas Structural Form: Vertical Type
High Light:

0.1t/h vertical model steam boilers

,

three return vertical model steam boilers

,

0.1t/h vertical fire tube boiler

Product Description

vertical steam boiler covers a small area and is simple to operate

Product introduction:

The steam generator model is LHS, which is a steam generator for internal combustion of oil and gas in three returns, equipped with flue gas recovery energy-saving device, which can meet the requirements of environmental protection and improve the thermal efficiency of the boiler. In line with the national requirements of energy conservation and environmental protection, fire tube arrangement structure, the whole factory, fast installation, simple operation, easy maintenance, safe, stable and reliable operation cost is low, is a generation of environmental protection and efficient energy-saving products.

Product advantage:

1. Complete combustion waste heat recovery high thermal efficiency
2. One-click operation is safe and convenient
3. Multi-protection security guarantee
4. Strictly test industry standards

Product technical parameters:





Model



Rated

Capacity

(t/h)



Rated

Pressure

(Mpa)



Rated

Temperature

(C)



Maximum

transport weight

of boiler(t)





Maximum transport size of boiler( mm)

Fuel Consumption



diesel oil (Kg/h)



Natural

gas (m³/h)



LPG (kg/h)

LHS0.05 0.05



0.4



151

0.37 700× 650×1700 8.2 10.2 6.45
LHS0.1 0.1 0.59 800×750 ×2000 11.3 13.6 13
LHS0.2 0.2







0.4~0.7







151~170

0.68 900× 850×2000 15.6 18.7 19.4
LHS0.3 0.3 0.83 1000×950×2000 22.5 26.8 25.6



LHS0.5



0.5



1.07



1100×1050×2000



32.5



36.8



32



LHS0.7



0.7











0.4~0.7











151~170



1.45



1200×1150×2200



40.6



48.5



50



LHS1



1



1.78



1300×1250×2450



45.9



65.3



65



LHS1.5

1.5



1.9



1780×1600×3200



78.4



102.1



97



LHS2



2



5.2



2000×2000×4000



91.8



130.6



130



Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas

2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.



Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
