Controllable Feeding Speed Steam Boiler Biomass High Efficiency 4t/H
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TAIGUO |
| Certification: | CE、EAC、SGS |
| Model Number: | DZH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US $8000.00 |
| Packaging Details: | Bulk, packaged |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100set |
|
Detail Information |
|||
| Product Type: | Biomass Steam Boiler | Steam Yield: | 0.5t/h-4t/h |
|---|---|---|---|
| Fuel: | Biomass Particles, Wood Chips, Palm Shells, Etc | Working Pressure: | 1.0、1.25、1.6Mpa |
| Structural Form: | Horizontal | ||
| High Light: | controllable feeding speed steam boiler biomass,4t/h steam boiler biomass,biomass fired steam boiler high efficiency |
||
Product Description
fuel applicability johnson material steam boiler
Product introduction:

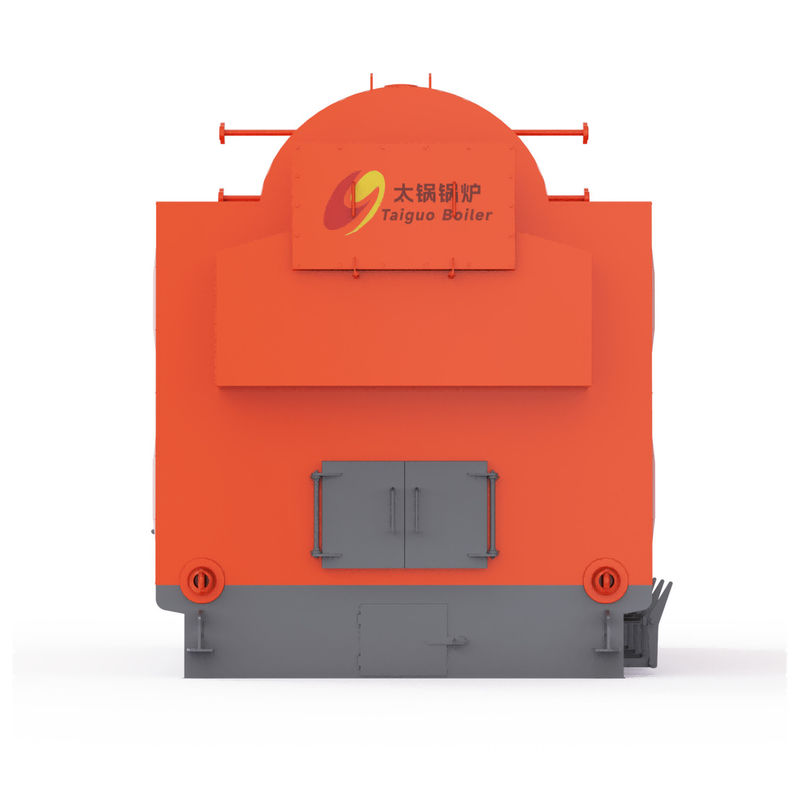

DZH type hand burning coal burning biomass boiler is a mature, advanced product of our company, an energy-saving and environmentally efficient product, can burn formed biomass fuel, but also pure coal or mixed coal and formed biomass fuel. Compared with the traditional coal boiler, it not only has wide fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, so it has been widely used.
Product characteristics:
(1) The pot barrel is composed of arch tube plate and threaded smoke pipe, so that the pot barrel changes from quasi-steel body to quasi-elastic structure, cancels the pulling member in the tube plate area and reduces the stress. The smoke pipe in the tube plate is changed from two return trips to one return trips, which solves the problem of tube plate cracks.
(2) Due to the arrangement of the rising pipe row at the lower part of the drum, the dead water area at the bottom of the drum is eliminated, so that the mud is not easy to deposit, and the high temperature area of the drum can be well cooled to prevent the lower part of the drum from bulging.
(3) The use of high efficiency heat transfer threaded smoke pipe, to obtain enhanced heat transfer effect, to achieve the boiler heating, pressure boost characteristics, improve the thermal efficiency of the boiler.
(4) Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment.
(5) Stable operation, convenient adjustment, sufficient output.
(6) The threaded smoke pipe is used to strengthen heat transfer, improve the heat transfer coefficient and thermal efficiency, because the flue gas has a disturbing effect in the pipe. The smoke pipe is not easy to accumulate ash, and plays the role of self-cleaning.
(7) The splayed wall in the furnace and the exit smoke window have a certain dust reduction effect. The original dust concentration of the boiler is controlled below the standard to ensure that the boiler dust emission reaches the national environmental protection regulations.
(8) The unique double-layer secondary air design improves the ignition conditions of biomass fuel, adopts an independent air chamber, and achieves reasonable air distribution, so that an aerodynamic field conducive to combustion is formed in the furnace, making the combustion temperature high and combustion efficiency high.
Technical parameter:
|
Mode l
item |
DZH0.5 |
DZH1 |
DZH2 |
DZH3 |
DZH4 |
|
|
Rated evaporation capacity(t/h) |
0.5 |
1 |
2 |
3 |
4 |
|
| Rated pressure( Mpa ) | 0 .7/ 1 .0 | 0 .7/ 1 .0/ 1 .25 | 0 .7/ 1 .0/ 1 .25 | 1 .25/ 1 .6 | 1 .25/ 1 .6 | |
| Rated steam temperature(℃) | 170/ 184 | 170/ 184/ 194 | 170/ 184/194 | 194/204 | 194/204 | |
| Feed water temperature (℃) | 20 | 20 | 20 | 20 | 20 | |
| Heating area(m) | Body | ~21 .31 | ~33 .24 | ~59 .47 | ~72 .31 | ~92 .82 |
| Economizer | 8 .28 | 10 .56 | 27 .6 | 35 .2 | 69 .76 | |
| Effective area of garte(m) | 1 .28 | 2 . 1 | 3 .36 | 4.5 | 5.2 | |
| Fuel type | Biomass pellet,wood sawdust,bamboo chip,wood block,straw,Jute, palm shell | |||||
| Fuel Consumption (kg/h) | ~150 | ~300 | ~600 | ~900 | ~1200 | |
| Flue gas temperature(℃) | ~155 | ~155 | ~155 | ~155 | ~155 | |
| Themal efficiency (%) | ~85 | ~85 | ~85 | ~85 | ~85 | |
| Weight of biggest part for transportation(t) | 8 | 12 | 15 | 17 .6 | 22 | |
| Overall dimension of biggest part for transportation(m) | 3 .3*2 .0*2 .7 | 4 . 1*2 .2*2 .9 | 4 .7*2 .4*3 .2 | 5 .2*2 .5 *3 .3 | 5 .6*2 .6 *3 .6 | |
After-sales service:
1: Service system
Our service tenet is "to provide customers with sincere, quality service". We are committed to honesty and good service to our customers and are committed to continuously improving the quality of service and increasing user satisfaction.
(1) Patiently introduce the product and quality to the user in detail.
(2) Provide technical advice to users, including the use and maintenance of products, products
Assembly, use characteristics and other technical problems, where the user needs to provide services,
The company will send the best engineering and technical personnel for customer service and technical consultation.
(3) The company set up a service hotline for users to answer various questions about the product.
Consulting service phone :0394-6771028400-0394-288
Work flow chart:
