98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM

98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM

Product Details:

Place of Origin: HENAN
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001
Model Number: YYQW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD9000-22500 set
Packaging Details: Whole box packaging
Delivery Time: 15-25DAYS
Payment Terms: D/P, T/T, L/C, D/A
Supply Ability: 10set
Get Best Price Contact Now

Detail Information

Burner: Optional Capacity: Customized
Control System: Automatic Control Design: Compact Design
Fuel Type: Oil Function: Thermal Oil Boiler
Installation: Easy Installation Pressure: Low Pressure
Service: OEM, ODM, Structure: Water Tube
Thermal Efficiency: >98% Usage: Industrial
Warranty: 1 Year
High Light:

98% industrial hot oil heater

,

ODM industrial hot oil heater

,

ODM hot oil boiler

Product Description

98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 098% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 198% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 2

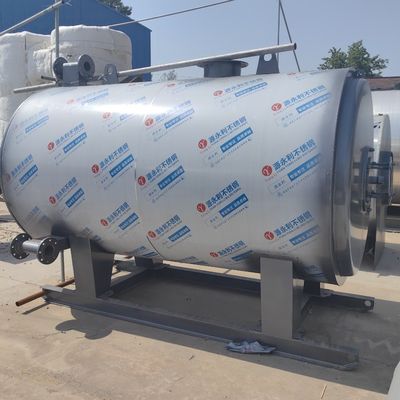

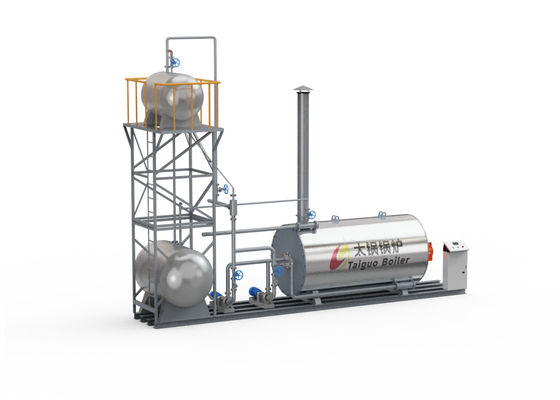

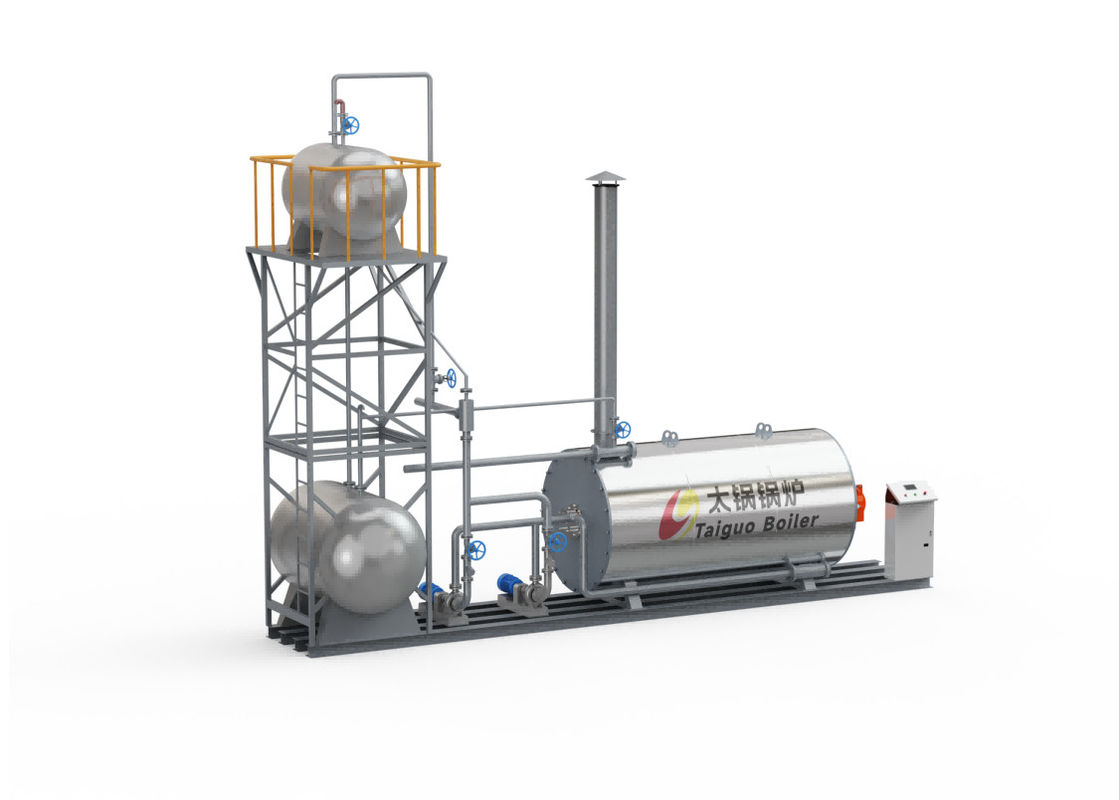

  1. Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

    This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 3model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 4710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000


98% Yyqw Series Industrial Hot Oil Heater Gas Diesel Oil Fired ODM 5
