Industrial 350kw Thermal Fluid Boiler Oil Gas Fired 1.1Mpa

Industrial 350kw Thermal Fluid Boiler Oil Gas Fired 1.1Mpa

Product Details:

Place of Origin: HENAN
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001
Model Number: YYQW-350Y

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD6000-9800 Set
Packaging Details: Whole box packaging
Delivery Time: 20-25 days
Payment Terms: T/T, L/C
Supply Ability: 10set
Get Best Price Contact Now

Detail Information

Rated Thermal Power: 350KW Design Pressure: 1.1Mpa
Output Temperature: 350° Applicable Fuel: Light Oil, Heavy Oil, Natural Gas
Boiler Shape Size: 2100*1390*2055 Power: 10kw
High Light:

350kw thermal fluid boiler

,

1.1Mpa thermal fluid boiler

,

350kw hot oil boiler

Product Description

Product introduction:

Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.


1. Best three -story design, large diameter burning room

The efficiency of boilers with a large heating area is very high

The third tube protects the shell of the boiler to avoid deformation

2. External oil collection box

Protect the high temperature smoke in the heating chimney

Easy to maintain

3. Lead the level of automatic control measures

Multiple control protection and protection of accurate oil temperature control, temperature, pressure and flue gas temperature

Safe and reliable operation

Technical parameter:

Industrial 350kw Thermal Fluid Boiler Oil Gas Fired 1.1Mpa 0model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 Industrial 350kw Thermal Fluid Boiler Oil Gas Fired 1.1Mpa 1710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700 1000

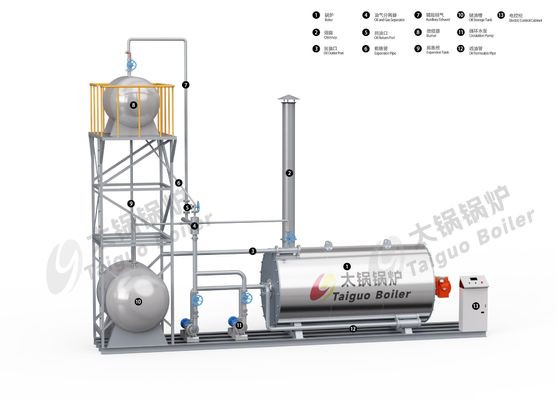

Work flow chart:

Industrial 350kw Thermal Fluid Boiler Oil Gas Fired 1.1Mpa 2
