Fuel Gas Full Automation Industrial Steam Boiler System Water Capacity Large Output

Product Description

Product Introduction:

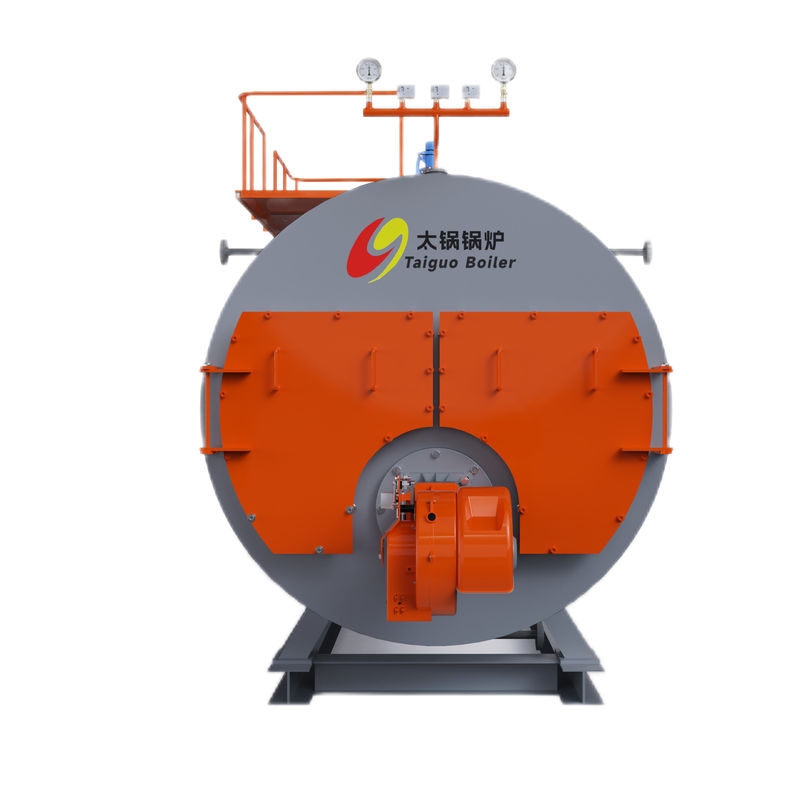

This product model is WNS series steam boiler, which is a horizontal internal combustion fuel oil (gas) quick loading boiler, with wet back structure. The corrugated furnace and the return chamber are the first return leg, the second return leg is composed of threaded smoke pipe, and the third return leg is plain smoke pipe. The boiler is equipped with a complete automatic control device and safety protection device with high and low water level alarm and low water level interlocking protection function; Boiler automatic ignition, burner fire automatic regulation and flame out protection, to ensure the safe operation of the boiler.
The fuel of the product is light oil or natural gas; The fuel is ejected from the burner, ignited by the electronic ignition rod, and is burned under micro-positive pressure in the furnace liner. After burning, the high-temperature flue gas turns 180° from the recombustion chamber to the second return journey, and turns 180° from the upper part of the front smoke box to the third return journey. After heat transfer by the energy-saving device, it is discharged into the atmosphere through the chimney.,

Product features:

★ The new spiral fin energy saver and condenser are used to increase the heating area, reduce its volume, and make its structure compact.
★ This type of boiler has high thermal efficiency, stable output and strong load adaptability.
★ Quick installation structure, can effectively shorten the installation cycle.
★ Boiler operation is safe and stable, the service life can reach more than 20 years.

Product parameters:

Serial number	name	unit	Numerical value
1	Rated evaporation capacity	t/h	1
2	Working pressure	MPa	1.0
3	Experimental pressure	Mpa	1.25
4	Steam temperature	℃	184
5	Feed water temperature	℃	20
6	Condenser operating pressure	Mpa	0
7	Radiant heating area	m	5.43
8	Convection heating area	m	26.05
9	Heating area of condenser	m	10.75
10	Boiler design Thermal Efficiency (Y)	%	94.27
11	Boiler design Thermal Efficiency (Q)	%	98.09
12	Exhaust temperature (Y)	℃	88.95
13	Exhaust temperature (Q)	℃	88.17
14	Adaptive fuel	/	Oil and natural gas
15	Low heat value of light oil	MJ/Kg	42.916(Y)
16	Low calorific value of natural gas	MJ/Nm	35.6(Q)
17	Theoretical fuel consumption	Kg/h	68.33
18	Theoretical air consumption	Nm/h	77.33
19	Boiler water volume	m³	2.1
20	Maximum shipping weight of boiler	t	5
21	Chimney size/height	mm	Φ273*8000
22	Maximum transport size of boiler	mm	3395×1692×2040

After-sales service:

1: Service system
Our service tenet is "to provide customers with sincere, quality service". We are committed to honesty and good service to our customers and are committed to continuously improving the quality of service and increasing user satisfaction.
1.1: Pre-sale service
(1) Patiently introduce the product and quality to the user in detail.
(2) Provide technical advice to users, including the use and maintenance of products, products
Assembly, use characteristics and other technical problems, where the user needs to provide services,
The company will send the best engineering and technical personnel for customer service and technical consultation.
1.2: In-sale service
(1) Users who have the intention to order are recorded in the user service tracking dynamic table.
(2) Where the development of new users, within one week after the arrival of the goods to the user, the Marketing Department will contact the customer by phone or go to the user site to understand the acceptance of the goods, whether the product quality can meet customer needs, and other needs of customers.
(3) Where we need to guide the installation, ensure that the goods arrive, introduce the product to the user in a timely manner, and assist the user to install, introduce the installation, use methods and technical requirements.
(4) Key users should send people to visit the service once or twice a year to solicit opinions and solve the problems raised by users in a timely manner.
1.3: After-sales service
1. When users use our products for quality problems, they will reply within 1 hour when receiving customer service needs, and provide solutions within 24 hours.
2. Implement the "Product quality responsible person system". After the contract is signed, from product manufacturing, warehousing, delivery to installation, trial operation, the whole process of service, improve the quality of the project.
