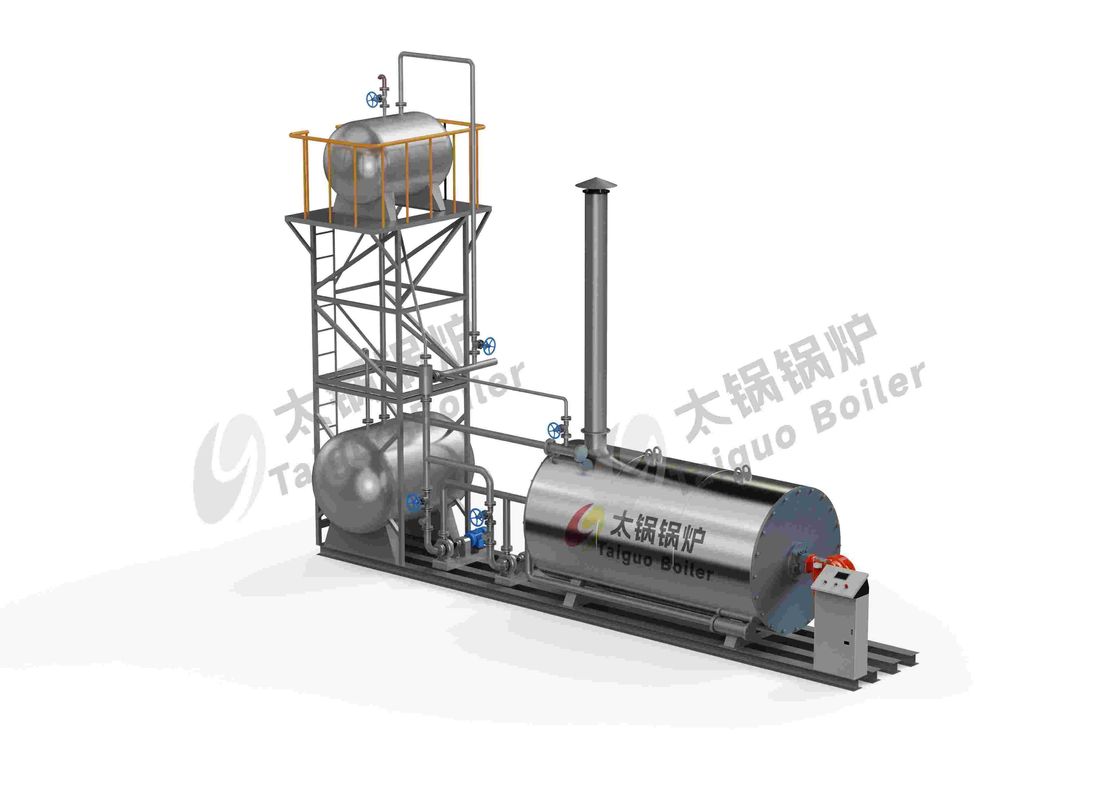

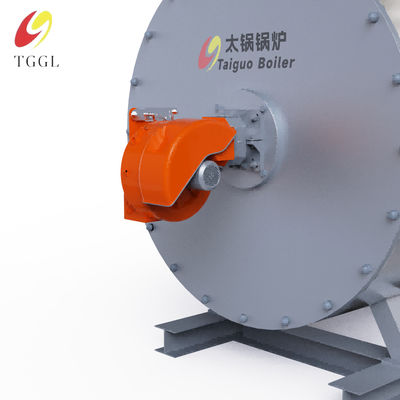

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories

Product Details:

Place of Origin: Henan, China
Brand Name: TAIGUO
Certification: CE、EAC、SGS
Model Number: YYQW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $17000.00
Delivery Time: 25working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Model NO.: YYQW Origin: Zhoukou
Drum Placement: Horizontal Boiler Structure: Fire Tube
Pressure: Low Pressure Burning Style: Chamber Combustion Boiler
Transport Package: Full Container Trademark: TAIGUO
High Light:

3600kw thermal oil boiler

,

Rubber Factories thermal oil boiler

,

3600kw hot oil boiler

Product Description

Product introduction:

Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.

Product advantage:

1.Optimum three-coil design

The boiler with large heating area has high efficiency

The third pipe protects the boiler shell from deformation

2.External oil collection box

Protect the high temperature flue gas in the heating chimney

Easy maintenance

3.Automatic control measures are perfect

Precise oil temperature control, temperature, pressure and smoke temperature multiple control protection

Safe and reliable operation





Technical parameter:

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 0model

ltem



YY(Q)W

350



YY(Q)W

500



YY(Q)W

700



YY(Q)W

1400



YY(Q)W

2100



YY(Q)W

2800



YY(Q)W

3500



YY(Q)W

4200



YY(Q)W

7000



YY(Q)W

14000

Rated thermal p

ower

KW 350 500 700 1400 2100 2800 3500 4200 7000 14000
Design pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Medium outlet t emperature C ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350 ≤350
Heating area m 21.3 24 40 78.5 94.5 157 205.2 240 410 Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 1710
Fuel light oil/heavy/LNG/CG



Fuel

Light oil



Kg/h

37 52 69 140 210 280 350 420 680 1360
LNG



Nm3/h

44 63 83 170 260 332 425 498 810 1620
Thermal efficiency 96% 96% 96% 96% 96% 96% 96% 96% 96% 96%
Furnace oil cont ent m3 0.25 0.3 0.5 1.1 1.7 2.29 3.8 4.3 7 15.5



Boiler dimension

s







mm



2100×

1390×

2055



2200×

1390×

2055



3240×

1470×

2260



4145×

1900×

2786



5020×

2050×

3080



5526×

2326×

3230



6555×

2470×

3634



6753×

2838×

3704



8200×

3050×

3800



12000×

3780×

4350

Boiler transport weight



T



2.58



3



3.7



6.9



8.8



11.5



17.8



19.8



27.5



42

Oil inlet



DN

80 100 100 125 150 150 200 200 250 350
Oil outlet



DN

80 100 100 125 150 150 200 200 250 350
Expansion tank



m3

1.5 1.5 1.5 2.5 2.5 3 3 4.5 6 8
Storage tank



m3

2.5 2.5 2.5 5 5 8 8 10 15 25
ChimneyΦ mm 280 280 280 350 400 400 500 500 700

1000



Work flow chart:

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 2

certificate:

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 3Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 4Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 5

Industrial 3600kw Thermal Oil Boiler Oil Gas Fired For Rubber Factories 6
