2.5Mpa Industrial Szs Water Tube Steam Boiler Oil Gas Fired 20 Ton Per Hour

2.5Mpa Industrial Szs Water Tube Steam Boiler Oil Gas Fired 20 Ton Per Hour

Product Details:

Place of Origin: Zhoukou
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001
Model Number: SZS10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US9000-49500 set
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Payment Terms: L/C, D/A, T/T
Supply Ability: 10set
Get Best Price Contact Now

Detail Information

Trademark: TAIGUO Burning Style: Chamber Combustion Boiler
Structure: Water Tube Fuel: Gas-Fired
Package Size: 34.00cm * 17.00cm * 21.00cm Production Capacity: 100 Sets/Year
Specification: SZS-20 Manufacturing Level: A
Rated working pressure (Mpa): 1.25/ 1.6/2.5 Feed Water Temperature (ºC): 104/20
High Light:

ce water tube steam boiler


2.5Mpa water tube steam boiler


20ton per hour steam tube boiler

Product Description


Product Description:

The SZS gas boiler structure is a double boiler tube, vertical formula, and D-type layout structure. On the right is the furnace, and on the left is the flow beam. Both ends are swollen. The furnace is surrounded by a thin film water wall. The membrane shaped water cooled wall on the left side of the furnace is completely sealed, making the furnace of the flow tube beam completely sealed.


1. SZS series oil/gas industrial steam boiler machine here is a special boiler type
2.The two drums are parallel type ,and shapes like "D"
3.Water tube structure, micro positive pressure chamber burning
4.The output can be hot water, steam, superheated steam and so on
5.The burner is designed in the boiler front, so the operation and maintenance are easy.
6.Easy installation, low boiler room investment


Technical Parameters:

Parameter Value
Pressure 1.25Mpa, 1.6Mpa, 2.5Mpa
Type Industrial Steam Boiler
Warranty 1 Year
Applicable industry Medicine, Chemical Industry, Light Industry, Textile, Building Materials, Culture, Food And Beverage Processing, Plastic Foam, Paper Making, Wood Processing, Clothing And Leather
Capacity 4ton/hr To 20 Ton/hr
Burner Oil, Gas, Dual Fuel
Fuel Oil, Gas
Temperature 194℃, 204℃, 226℃
Control System PLC
Structural form Type D Double Drum Horizontal


Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

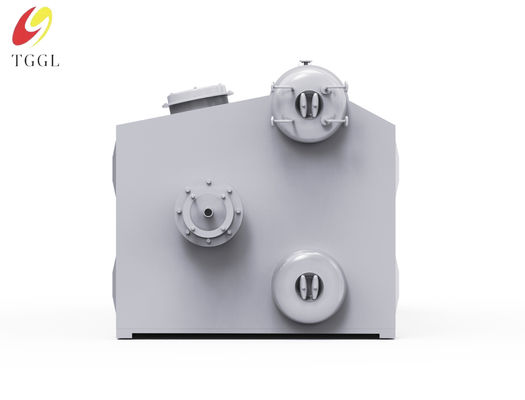

2.5Mpa Industrial Szs Water Tube Steam Boiler Oil Gas Fired 20 Ton Per Hour 0

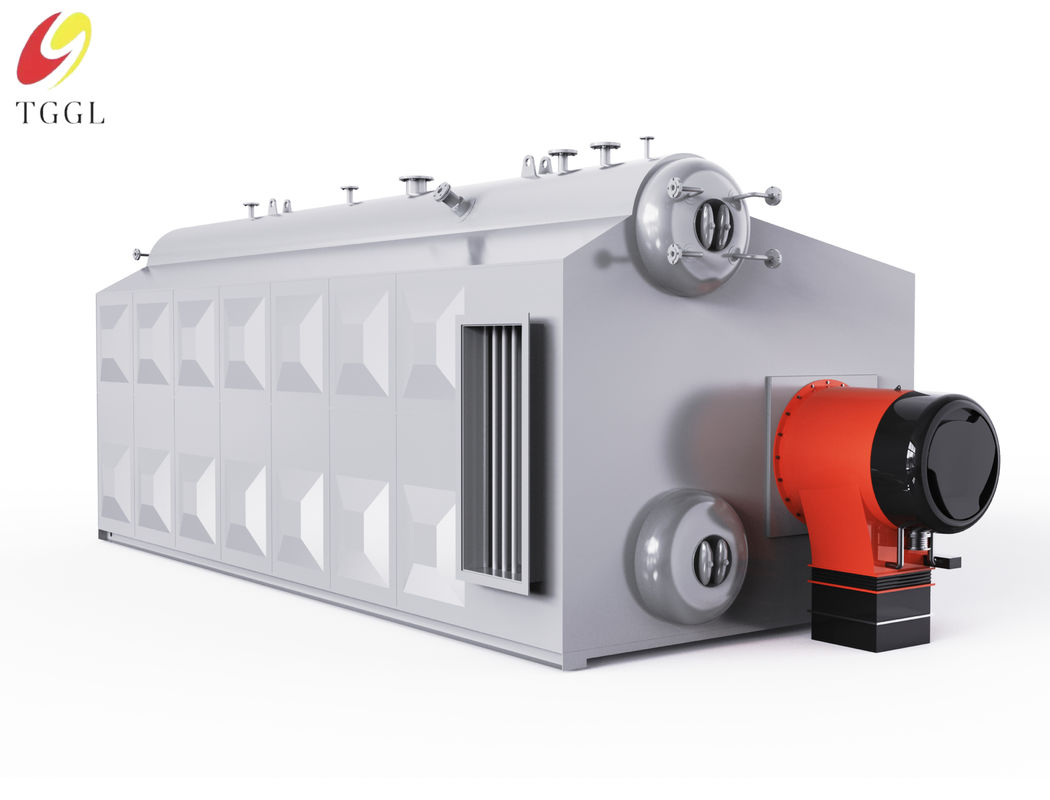

2.5Mpa Industrial Szs Water Tube Steam Boiler Oil Gas Fired 20 Ton Per Hour 1
