Horizontal Firetube Steam Boiler Diesel Fuel 10 Ton Favorable

Horizontal Firetube Steam Boiler Diesel Fuel 10 Ton Favorable

Product Details:

Place of Origin: HENAN
Brand Name: TAIGUO
Certification: CE EAC SGS
Model Number: wns10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD7000-29500 set
Packaging Details: Whole box packaging
Delivery Time: 20-25 days
Payment Terms: T/T
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Media: Steam Drum Placement: Horizontal Boiler, Horizontal Boiler
Transport Package: Full Container Pressure: Low Pressure
Water Circulation: Natural Circulation Boiler Dimensions: Height/Width/Depth
Boiler Type: Condensing/Non-Condensing Flue Type: Direct/Indirect
Fuel Type: Gas/Oil Ignition Type: Electronic/Manual
Warranty: 1Years
High Light:

Low Pressure Favorable Gas Oil Boiler


Horizontal Firetube Steam Boiler


Diesel Fuel 10Ton Steam Boiler

Product Description

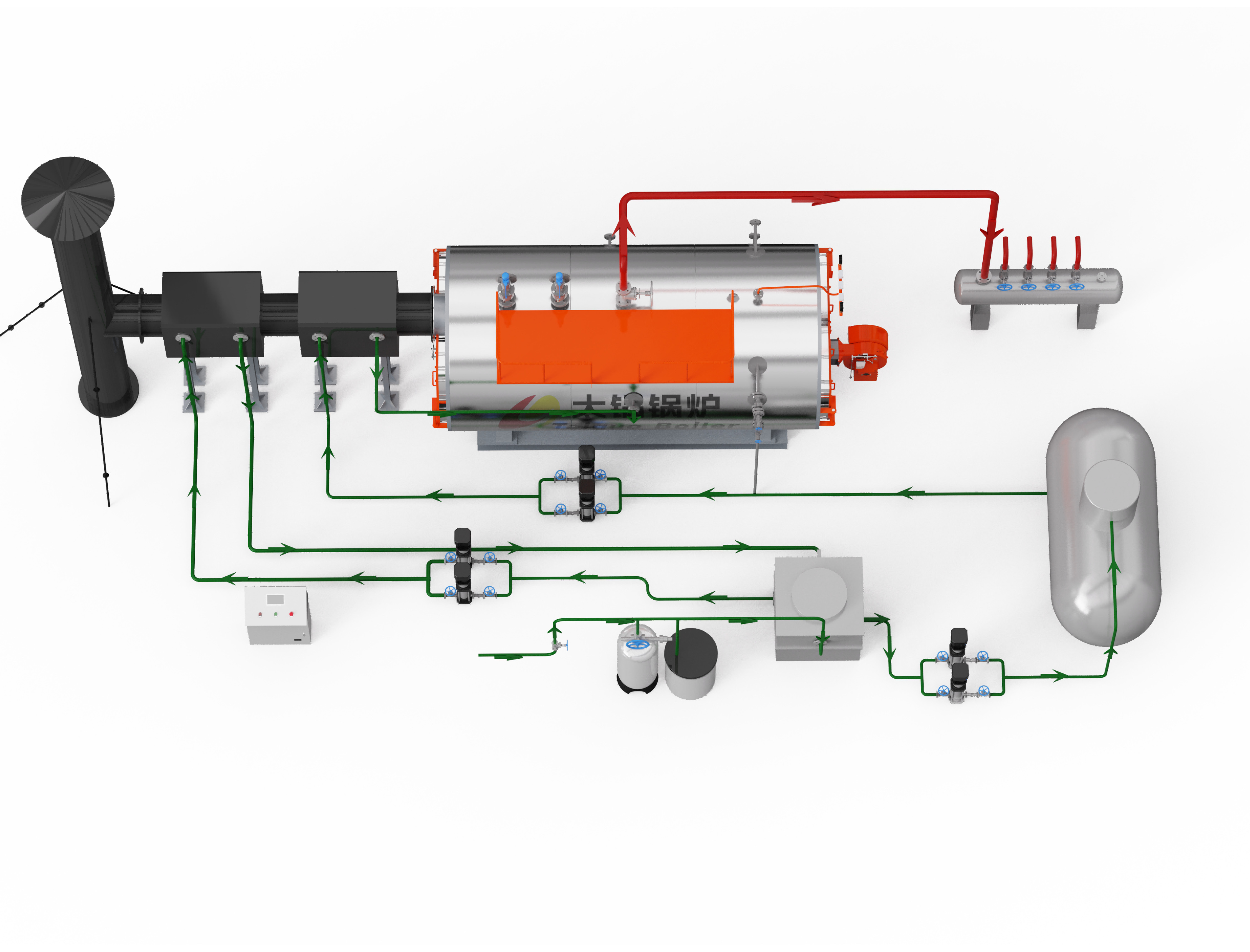

Horizontal Firetube Steam Boiler Diesel Fuel 10 Ton Favorable 0

Product Description:

The engine oil/gas boilers of the Taiguo Wns series are automated. It returns a large -capacity design of wet oil (gas) high -speed boilers and combustion rooms with a capacity design of the combustion room. Use a thread structure to enhance the pipeline. Equipped with the international first type of brand burner, valve group, perfect automatic control equipment and safety equipment to achieve dangerous low water alarm and dangerous low water alarm. Automatic steam pressure control, pressure alert, automatic fire boiler, automatic ignition, automatic adjustment of burning fire, fire prevention and fire prevention and boiler safety operations. It is usually suitable for 500 kg to 20t/h capacity.


Due to the three -back design, the fatigue of flue gas temperature is low.
I am using the latest technology. The design uses a large combustion room, equipped with a world -covered burner to enhance combustion, improve efficiency and reduce loss efficiency.
Use the advanced waveform furnace tube structure to increase the heating surface area and fill in induced expansion after heating.
It uses a wet back structure with high reliability and low maintenance costs.

Technical Parameters:

Technical Parameters Details
Steam temperature 184℃,194℃,204℃
Country of origin Zhoukou In Henan Province
Electrical element PLC
Fuel Type Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas
Boiler Type Gas Oil Combination Boiler, Gas-Fired Heating Boiler, Gas Fired Boiler
Weight 6.8t-62t
Industry of use Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing
Mode of transport Land, Air, Sea
Thermal efficiency 96%
Evaporation capacity 0.5t/h-30t/h



Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.


1. How to buy a good boiler?

a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.

2. What is your main product?

Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.

3. Why choose us?

a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate

Horizontal Firetube Steam Boiler Diesel Fuel 10 Ton Favorable 1Horizontal Firetube Steam Boiler Diesel Fuel 10 Ton Favorable 2
