1 to 20 Ton Oil Gas Fired LNG Horizontal Industrial Steam Boiler

1 to 20 Ton Oil Gas Fired LNG Horizontal Industrial Steam Boiler

Product Details:

Place of Origin: HENAN ,CHINA
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: WNS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD4500-25500 Set
Packaging Details: Full Container
Delivery Time: Deliver the goods at the agreed time
Payment Terms: TT, L/C, D/A, D/P
Supply Ability: 1000
Get Best Price Contact Now

Detail Information

Evaporation Capacity: 0.5t/h-30t/h Weight: 6.8t-62t
Installation Mode: Skid Mounting Structural Form: Horizontal
Dimension: LCD Display English And Chinese Menu Can Touch Screen Working Pressure: 1.0、1.25、1.6Mpa
Quality Guarantee: 1 Year Mode Of Transport: Land, Air, Sea
Drum Placement: Horizontal Boiler Usage: Industrial, Home, Vehicle, Power Station
Origin: Henan

Product Description

Product Description:

TAIGUO WNS series oil/gas boiler is a kind of automatic horizontal internal combustion three return wet back type oil (gas) quick loading boiler, combustion chamber large volume design, make the combustion more full; The pipe adopts thread structure to enhance the heat transfer effect. Boiler equipped with international first-class brand burner and valve group and perfect automatic control device and safety protection device, to achieve automatic water level control and dangerous low water level alarm, stop the furnace; Automatic steam pressure control and overpressure alarm; Boiler automatic ignition, burner fire automatic regulation and flameout protection, to ensure the safe operation of the boiler. Usually suitable for 500kg to 20t/h capacity.


  • It has the three returns design, so exhausted smoke temperature is low;
  • Adopted the latest technology, it is designed with a combustion chamber with large volume.It is equipped with a world-known burner,making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
  • It adopts advanced corrugated furnace pipe structure,increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
  • It adopts wet back structure with high reliability and low maintenance cost.The wet type flue gas flow and compact structure to prevent the tube plate cracking,Science and calculate the heated area, output assured;

Technical Parameters:

Parameter Value
Structural form Horizontal
Electrical element PLC
Working pressure 1.0,1.25,1.6Mpa
Thermal efficiency 96%
Industry of use Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing
Evaporation capacity 0.5t/h-30t/h
Quality guarantee 1 Year
dimension LCD Display English And Chinese Menu Can Touch Screen
Installation mode Skid Mounting
weight 6.8t-62t
Gas Heating Boiler Gas-Fired Heating Boiler, Gas Fired Boiler, Vertical Gas Boiler


Applications: textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood process-ing, clothing,laundry, etc.

Packing and Shipping:

The Gas Oil Boiler product will be packaged in a sturdy cardboard box to ensure safe delivery. The box will include the product, all necessary installation material and user manual.

The package will be shipped using a reliable courier service. Customers will be provided with a tracking number to monitor the delivery status of the package.




1. How to buy a good boiler?

a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.

2. What is your main product?

Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.

3. Why choose us?

a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate

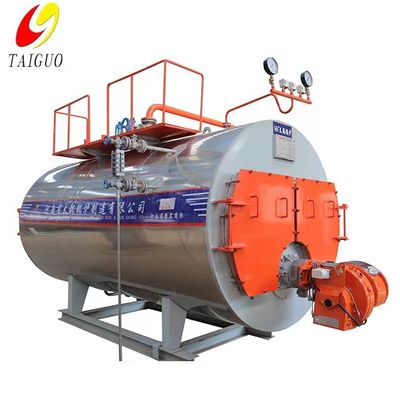

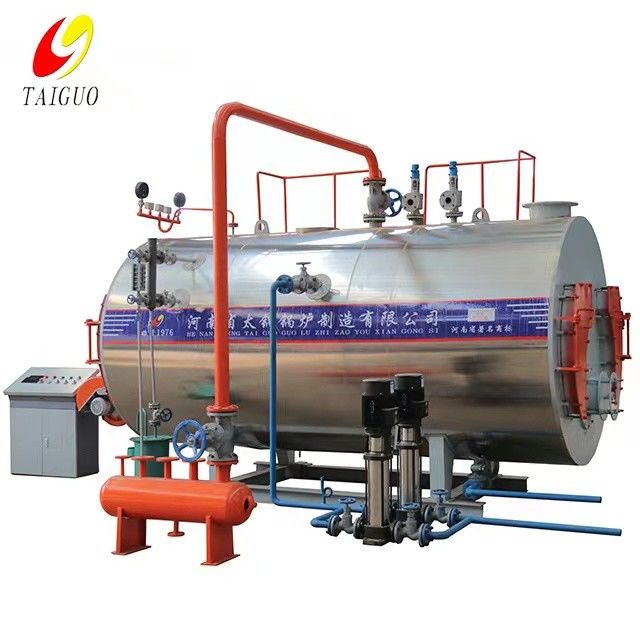

1 to 20 Ton Oil Gas Fired LNG Horizontal Industrial Steam Boiler 01 to 20 Ton Oil Gas Fired LNG Horizontal Industrial Steam Boiler 1
