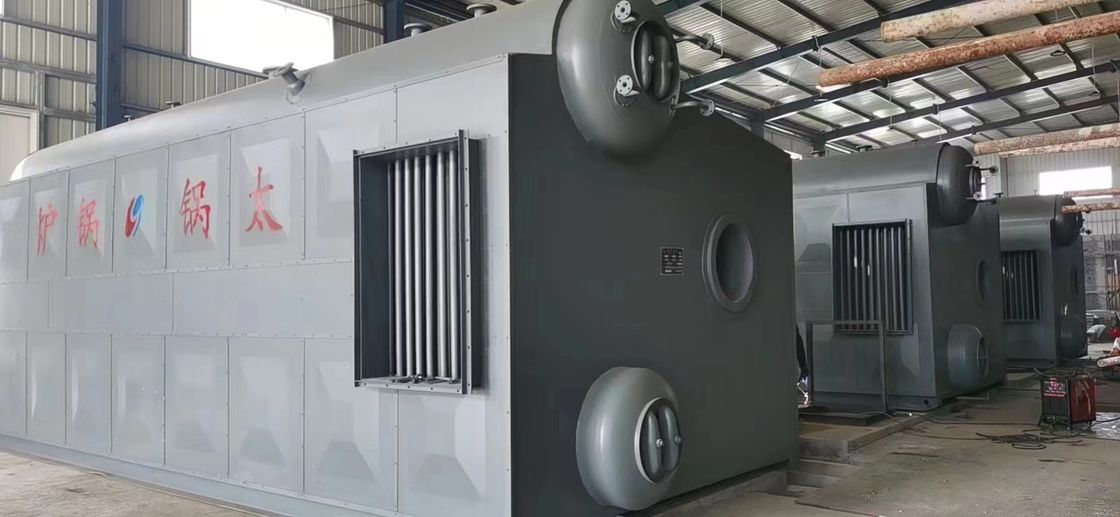

TAIGUO Coal Fired Water Tube Boiler Chain Grate Biomass Steam Boiler

TAIGUO Coal Fired Water Tube Boiler Chain Grate Biomass Steam Boiler

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: SZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Product Structure Form: Horizontal Double Barrel Chain Grate Steam Temperature: 194\204\226℃
Safety Control: Explosion Door Auxiliary System: Instrument Valve, Electric Control Cabinet, Branch Cylinder, Electric Control Cabinet, Water Pump, Energy Saver, Etc
Pressure: 1.25、1.6、2.5Mpa Fuel: Coal, Biomass, Wood Blocks, Wood Chips, Straw, Palm Shells, Etc
Capacity: 2-20t/h Control System: PLC
High Light:

TAIGUO Coal Fired Water Tube Boiler

,

Chain Grate Biomass Steam Boiler TAIGUO

,

Chain Grate Water Tube Boiler

Product Description

The double-barrel coal-fired water pipe steam boiler has high thermal efficiency

Product Description:

Our coal fired water tube boiler is a type of chain grate boiler, also known as a chain biomass boiler, that is an ideal choice for industrial boiler applications. It provides efficient and reliable heating and energy solutions and is designed to meet stringent safety requirements. It features an explosion door to ensure safety control and a PLC control system for greater efficiency. With a design efficiency of up to 82%, it offers flexibility in terms of installation type, with options of pry mounting and quick mounting, as well as a horizontal double barrel chain grate structure for a more compact design and greater heat transfer. This makes it an optimal choice for both industrial and commercial applications.



Features:

1. Membrane wall structure

The water wall of furnace convection flue, and front and rear walls all adopt membrane wall structure which has good air tightness, improve boiler thermal efficiency.

2. Quick installation structure

The boiler adopts quick-loading structure, convenient on-site installation, low cost and simple operation.

3.With a set of alarm, protection and interlock control system

Security guaranteed,easy operation



Technical Parameters:

Technical Parameter Description
Product model SZL
Fuel Feeding Method Chain Grate Stoker
Fuel Coal, Biomass, Wood Blocks, Wood Chips, Straw, Palm Shells, Etc
Auxiliary System Instrument Valve, Electric Control Cabinet, Branch Cylinder, Electric Control Cabinet, Water Pump, Energy Saver, Etc
Safety control Explosion Door
Product structure form Horizontal Double Barrel Chain Grate
Installation Type Pry Mounting, Quick Mounting
Pressure 1.25,1.6,2.5Mpa
Type Coal Fired Water Tube Boiler
Design Efficiency 82%


Applications:

The TAIGUO SZL coal-fired water tube boiler is ideal for industrial and commercial applications. Its horizontal double-barrel grate construction, with pressures of 1.25, 1.6 and 2.5 Mpa respectively, provides high-quality and efficient steam output at temperatures of 194, 204 and 226 degrees Celsius.

The boiler has CEEACSGSISO19001ISO24001ISO45001 certification. The fuel is fed by a grate.

This reliable and efficient chain grate steam boiler, double barrel industrial boiler, double drum steam boiler, coal-fired boiler is perfect for a wide range of applications, offering a great combination of value, performance and durability.



Support and Services:

Technical Support and Service for Coal Fired Water Tube Boiler

We provide comprehensive technical support and service for coal fired water tube boilers. Our team of experienced engineers and technicians are able to provide detailed advice and assistance to ensure your plant is operating safely and efficiently.

We offer a range of services, including:

  • Regular maintenance and inspections
  • Troubleshooting and repairs
  • Upgrades and modifications
  • Spare parts supply

Our team of professionals is available 24/7 to provide prompt and reliable service when you need it.



FAQ:



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.



Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.



Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
