82% Efficiency Wood Chips Industrial Steam Boilers For Food Processing Industry

82% Efficiency Wood Chips Industrial Steam Boilers For Food Processing Industry

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: SZL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 9800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Design Efficiency: 82% Fuel: Coal, Biomass, Wood Blocks, Wood Chips, Straw, Palm Shells, Etc
Product Model: SZL Capacity: 2-20t/h
Steam Temperature: 194\204\226℃ Fuel Feeding Method: Chain Grate Stoker
Type: Coal Fired Water Tube Boiler Installation Type: Pry Mounting, Quick Mounting
High Light:

Wood Chips Industrial Steam Boilers

,

82% Efficiency Wood Chip Steam Boilers

,

82% Efficiency Industrial Steam Boilers

Product Description

Product Description:

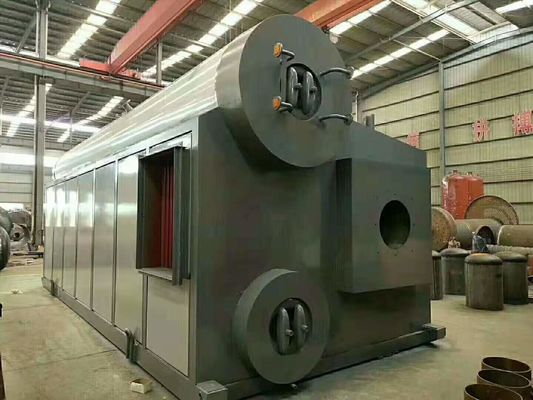

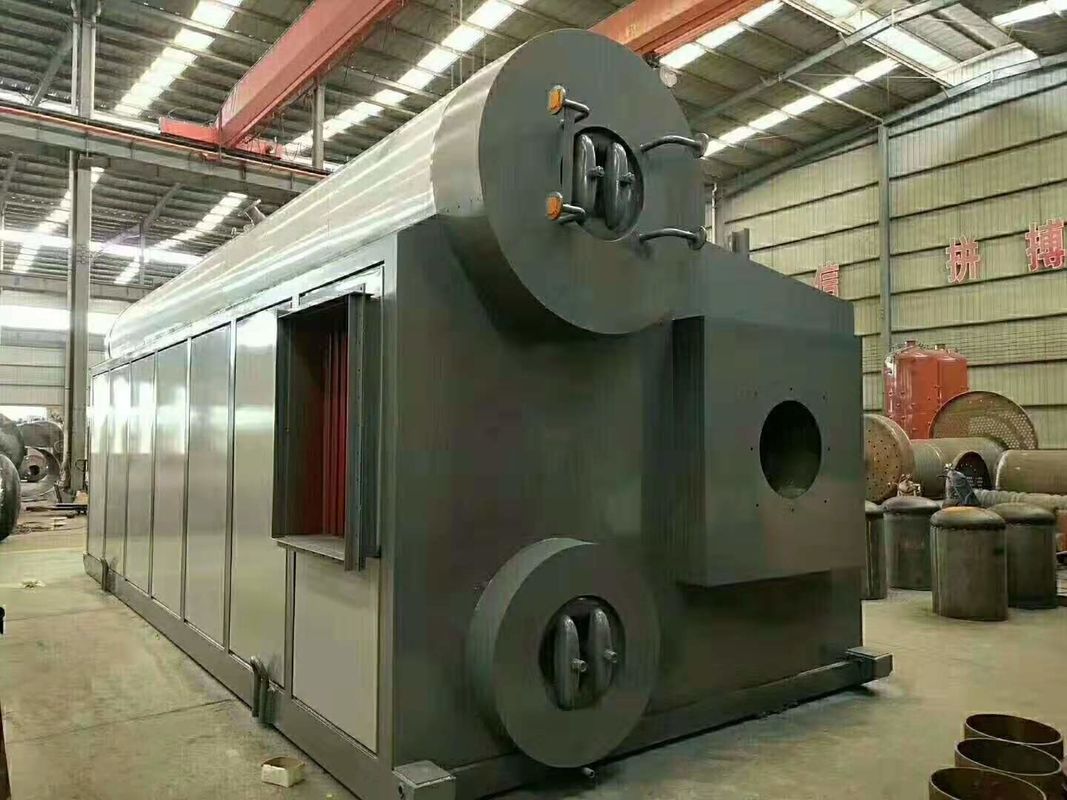

Coal Fired Water Tube Boiler is an industrial steam boiler that is widely used in a variety of industrial applications. It is a chain biomass boiler, which is designed to provide maximum efficiency and cost-effectiveness. This boiler is capable of producing steam with a design efficiency of 82% and can be used to generate steam from coal, biomass, wood blocks, wood chips, straw, palm shells, etc. With a capacity of 2-20t/h, this boiler can be installed in two types – pry mounting and quick mounting. It is reliable, durable, and provides energy-efficient operation.



Features:

1. Both sides of the furnace and combustion chamber adopt membrane water wall structure.
Membrane water wall structure independent original design. Membrane water wall structure for power station boiler is applied to packaged boiler. Its advantages are large heat transfer coefficient, good heat transfer effect, small heat loss, good air tightness, no deformation of the furnace wall, no ash leakage.
2. Configure energy-saving devices (economizer, air preheater) to make full use of boiler flue gas heat, reduce boiler exhaust temperature, and improve boiler thermal efficiency.
3. The boiler has large water volume, strong ability to adapt to load changes, fast heating, high thermal efficiency, and small footprint.

Technical Parameters:

Attribute Parameter
Installation Type Pry Mounting, Quick Mounting
Steam Temperature 194204226℃
Auxiliary System Instrument Valve, Electric Control Cabinet, Branch Cylinder, Electric Control Cabinet, Water Pump, Energy Saver, Etc.
Pressure 1.25,1.6,2.5Mpa
Product structure form Horizontal Double Barrel Chain Grate
Fuel Feeding Method Chain Grate Stoker
Control system PLC
Fuel Coal, Biomass, Wood Blocks, Wood Chips, Straw, Palm Shells, Etc.
Design Efficiency 82%
Safety control Explosion Door


Applications:

The TAIGUO brand coal-fired water tube boiler is designed and manufactured in Zhoukou, Henan Province, China, and has passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 and other certifications. The model is SZL, the product structure is horizontal double-barrel grate, and the pressure is 1.25, 1.6, 2.5Mpa respectively. The safety control is explosion-proof door, and the fuel feeding mode is grate. Capacity 2-20t/h. Applicable industries are papermaking, food processing, building materials, medicine, aquaculture, plastic foam, wood processing and so on.



Support and Services:

Coal Fired Water Tube Boiler Technical Support and Service

We provide full technical support and service for our Coal Fired Water Tube Boiler. We offer a wide range of services that include installation, maintenance, repair and replacement parts. Our team of highly qualified and experienced technicians is available to provide technical advice and assistance on any questions you may have about the product. We also offer preventive maintenance services to ensure your Coal Fired Water Tube Boiler is running optimally and efficiently.

Our technical support and service includes:

  • Installation and commissioning of Coal Fired Water Tube Boiler
  • Maintenance and repair services
  • Replacement parts and components
  • Technical advice and assistance
  • Preventive maintenance services

We are committed to providing the highest standards of technical support and service to ensure that your Coal Fired Water Tube Boiler is running smoothly and efficiently.



FAQ:

Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.



Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.



Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
