89% Efficiency Biomass Fired Boiler Industrial Grate Boilers

89% Efficiency Biomass Fired Boiler Industrial Grate Boilers

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Structural Form: Horizontal Installation: Pry Mounting, Quick Mounting
Temperature: 170、184、194、204 Warranty: 12 Months
Type: Coal Fired Boiler Pressure: 0.7、1.0、1.25、1.6Mpa
Applicable Industry: Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc Control System: PLC
High Light:

89% efficiency biomass fired boiler


89% Efficiency Industrial Grate Boilers


Biomass Fired Industrial Grate Boilers

Product Description

89% efficiency Biomass fired industrial grate boilers have high thermal efficiency

Product Description:

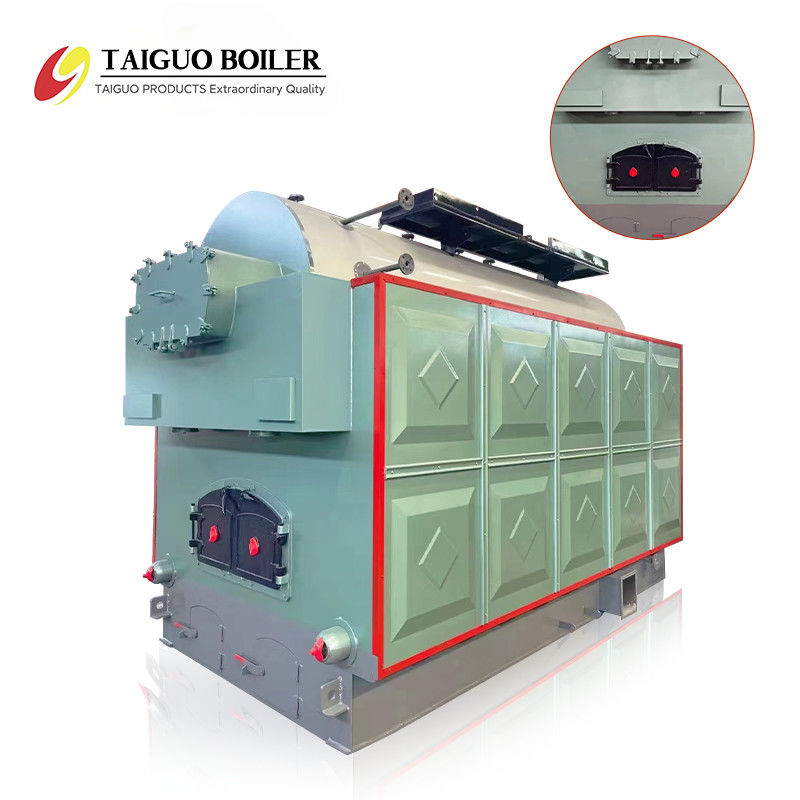

DZH series coal-fired biomass hand fired boiler, suitable for biomass pellets, wood chips, bamboo chips, wood chips, straw, palm shells and so on. It can burn formed biomass fuel, or pure coal or mixed coal and formed biomass fuel. Compared with the traditional coal boiler, it not only has wide fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, so it has been widely used.



(1) Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment.
(2) Stable operation, convenient adjustment, sufficient output. It has 110% overload capacity.
(3) The threaded smoke pipe is used to strengthen heat transfer, improve the heat transfer coefficient and thermal efficiency, because the smoke has a disturbance in the pipe, the smoke pipe is not easy to accumulate ash, and plays the role of self-cleaning.

Technical Parameters:

Parameter Value
Mode of transport Sea and Land Transport
Type Coal Fired Boiler
Installation Pry Mounting, Quick Mounting
Capacity 0.5-4t/h
Warranty 12 Months
Structural form Horizontal
Control System PLC
Efficiency 89%
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Pressure 0.7,1.0,1.25,1.6Mpa
Steam temperature 170,184,194,204℃


Taiguo coal-fired boiler is a kind of biomass industrial grate boiler, which is a new type of energy saving and environmental protection boiler. Suitable for chemical industry, light industry, textile, culture, building materials, printing and dyeing, paper making, food processing, wood processing, medicine and other industries. High thermal efficiency and long service life. The model of Taiguo coal boiler is DZH. The products are produced in Zhoukou City, Henan Province, and have passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 certification.

Support and Services:

TAIGUO can help you with any questions or queries about coal-fired boilers. Our team of experienced engineers can provide detailed instructions on how to operate the boiler, as well as provide troubleshooting advice to help you get the most out of your coal-fired boiler.

We also offer emergency support if your boiler stops working. Our team of experts can quickly diagnose problems and provide the necessary repairs to get your boiler back up and running as soon as possible.

If you have any questions or concerns, please do not hesitate to contact us. Our knowledgeable team is available to answer any questions you may have and provide any assistance you may need.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
