The horizontal biomass steam boiler is stable, safe and reliable in operation

The horizontal biomass steam boiler is stable, safe and reliable in operation

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Pressure: 0.7、1.0、1.25、1.6Mpa Capacity: 0.5-4t/h
Fuel: Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells Warranty: 12 Months
Mode Of Transport: Sea And Land Transport Temperature: 170、184、194、204
Efficiency: 89% Type: Coal Fired Boiler
High Light:

horizontal biomass steam boiler


PLC Coal Burning Boiler


PLC Horizontal Biomass Steam Boiler

Product Description

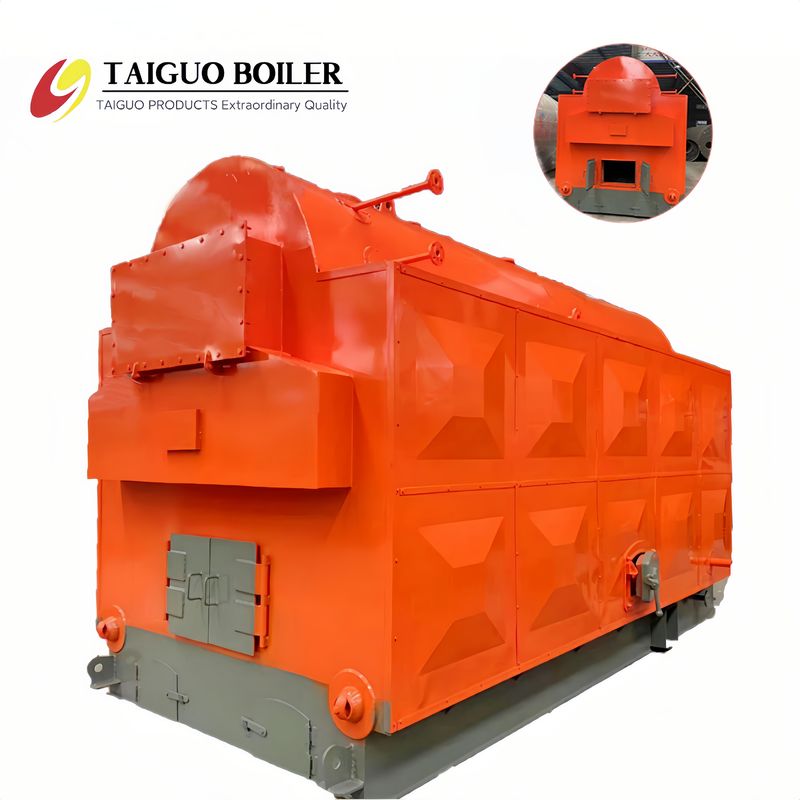

Coal boiler horizontal biomass steam boiler wood processing industry

Product Description:

DZH series biomass steam boilers provide reliable, high quality steam, fuel biomass particles, wood chips, bamboo chips, wood chips, straw, palm shells and other fuels for various industrial uses. The horizontal construction allows for quick and easy prying installation, providing convenience and reliability for any user.
Ideal for any user who needs reliable and efficient performance. It is designed to meet the needs of any user and provide the highest level of reliability and efficiency. Easy to install and long-lasting, this manual is the perfect choice for any user who wants to enjoy reliable and efficient boiler operation.


1. The cylinder is composed of arch tube plate and threaded smoke pipe, so that the cylinder is changed from quasi-steel body to quasi-elastic structure, and the pulling member in the tube plate area is cancelled, and the stress is reduced. The smoke pipe is changed from two return trips to one return trips, which solves the problem of tube plate crack.
2.Compact structure, compared with the same type of boiler, small size, save the boiler room infrastructure investment.
3. The furnace arch and outlet smoke window of the boiler have a certain dust removal effect. The original dust concentration of the boiler is controlled below the standard to ensure that the boiler dust emission reaches the national environmental protection regulations.

Technical Parameters:

Parameter Value
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Efficiency 89%
Warranty 12 Months
Structural form Horizontal
Temperature 170,184,194,204
Capacity 0.5-4t/h
Installation Pry Mounting, Quick Mounting
Control System PLC
Mode of transport Sea And Land Transport
Fuel Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells


DZH type coal-fired boiler, the product is produced in Zhoukou, Henan Province. Passed CE/EAC/SGS/ISO19001 / ISO24001 / ISO45001 standard authentication, efficiency up to 89%.

This manual is applicable to boilers fueled by various biomass pellets, wood chips, bamboo chips, wood chips, straw, palm shells, etc. Suitable for horizontal boiler, capacity 0.5-4t/h. Applicable industries are chemical industry, light industry, paper making, clothing and leather, paper industry, food processing and so on.


Support and Services:

DZH series chain biomass steam boiler technical support and service
We provide comprehensive technical support and service for our chain-row biomass steam boilers. Our service team consists of experienced and knowledgeable professionals who are able to provide the following services:

Consulting and technical advice
Installation and debugging
Maintenance, repair and spare parts supply
Troubleshooting and diagnostic analysis
Remote monitoring and technical support
Train operators and technicians
Our dedicated technical support and service team is ready to help and answer any questions you may have about our chain-processed biomass steam boilers.



Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
