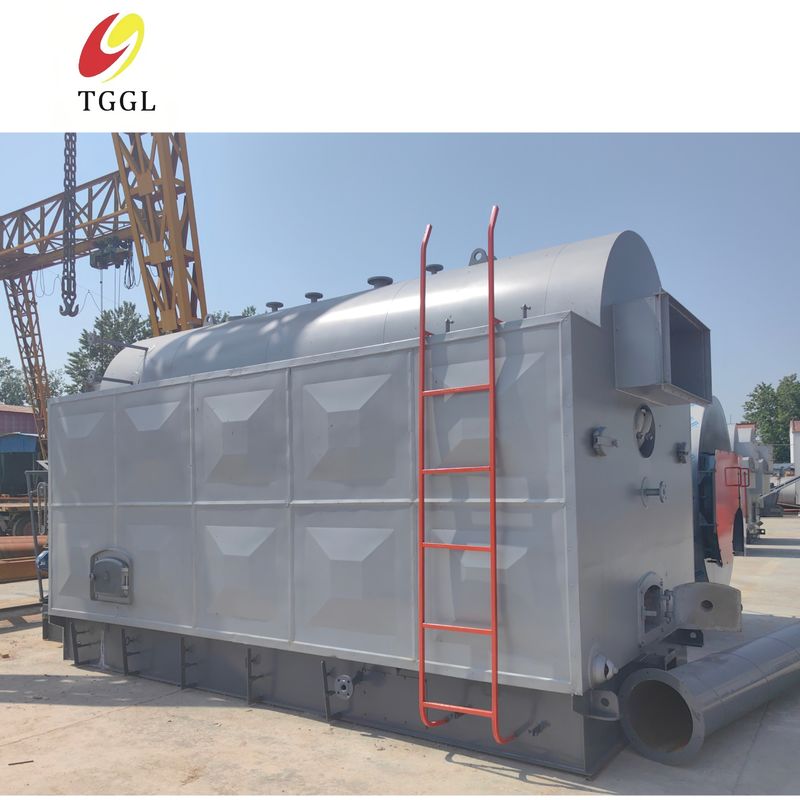

0.5-4t/H Coal Fired Biomass Steam Boiler Hand Fired Fixed Grate Boiler

0.5-4t/H Coal Fired Biomass Steam Boiler Hand Fired Fixed Grate Boiler

Product Details:

Place of Origin: Zhoukou in Henan Province
Brand Name: TAIGUO
Certification: CE\EAC\SGS\ISO19001\ISO24001\ISO45001
Model Number: DZH

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 7800
Packaging Details: To get ready,In bulk,
Delivery Time: Deliver the goods at the agreed time
Supply Ability: 100set
Get Best Price Contact Now

Detail Information

Mode Of Transport: Sea And Land Transport Efficiency: 89%
Installation: Pry Mounting, Quick Mounting Fuel: Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells
Capacity: 0.5-4t/h Warranty: 12 Months
Type: Coal Fired Boiler Structural Form: Horizontal
High Light:

4t/H Coal Fired Biomass Steam Boiler


Hand Fired Fixed Grate Boiler


Fixed Grate Boiler 0.5-4t/H

Product Description

0.5-4t/h coal-fired biomass steam boiler hand fired fixed grate

Product Description:

The new DZH series boiler is a single cylinder-vertical water-fire tube shell boiler, and the combustion equipment is a movable grate. The water cooling wall on the left and right sides of the furnace is the radiant heating surface, the two wings of the furnace are the convection heating surface, the threaded smoke pipe convection heating surface is arranged in the boiler drum, the front and back arches are made of heat-resistant concrete cast and rammed as a whole, and the outer side of the boiler main engine is the three-dimensional protection plate shell.
This series of boilers use the latest scientific research achievements, such as: arch tube plate, threaded smoke pipe, etc., to solve the boiler shell boiler tube plate cracks, the lower part of the drum, the water wall burst tube, low thermal efficiency, insufficient output, poor coal quality adaptability and other problems


(1) Stable operation, convenient adjustment, sufficient output. It has 110% overload capacity.
(2) The threaded smoke pipe is used to strengthen heat transfer, improve the heat transfer coefficient and thermal efficiency, because the smoke has a disturbance in the pipe, the smoke pipe is not easy to accumulate ash, and plays the role of self-cleaning.
(3) The high efficiency and energy saving furnace arch with heat-resistant concrete cast as a whole is used in the furnace, which improves the ignition conditions of coal and expands the adaptability of coal.

Technical Parameters:

Parameter Description
Capacity 0.5-4t/h
Fuel Biomass Particles, Wood Chips, Bamboo Chips, Wood Scraps, Straw, Palm Shells
Efficiency 89%
Control System PLC
Pressure 0.7,1.0,1.25,1.6Mpa
Structural form Horizontal
Applicable industry Chemical Industry, Light Industry, Textile, Culture, Building Materials, Printing And Dyeing, Paper Making, Food Processing, Wood Processing, Medicine, Etc
Installation Pry Mounting, Quick Mounting
Type Coal Fired Boiler
Mode of transport Sea And Land Transport


Thailand DZH series coal-fired steam boilers are efficient, reliable and economical solutions for industrial and commercial applications. With a wide range of options, they are ideal for both large and small businesses. The DZH series is available in different models and sizes with a maximum capacity of 4t/h. And through the CE/EAC/SGS/ISO19001 ISO24001 / ISO45001 safety and quality certification. It also has pressure ranges of 0.7,1.0,1.25 and 1.6 Mpa. DZH series coal-fired steam boiler is the use of biomass steam, coal-fired grate steam, coal-fired steam to provide efficient and economic heating boiler. It uses advanced technology and high quality material design to make it reliable, safe and durable. Suitable for clothing and leather, rubber processing, plastic foam, food processing, building materials, medicine and other industries


Support and Services:

Technical support and service for fixed hand-fired biomass steam boiler
Provide telephone, email and other after-sales technical support services
Provide professional maintenance services
Provides installation and commissioning instructions
Regular maintenance and consultation services are provided
Spare parts and consumables are provided
Conduct on-site training for operators
Provide emergency maintenance services
Remote diagnosis and troubleshooting services


Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.


Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.


Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
